Code 39: (Solenoid Valve - Relief 2)

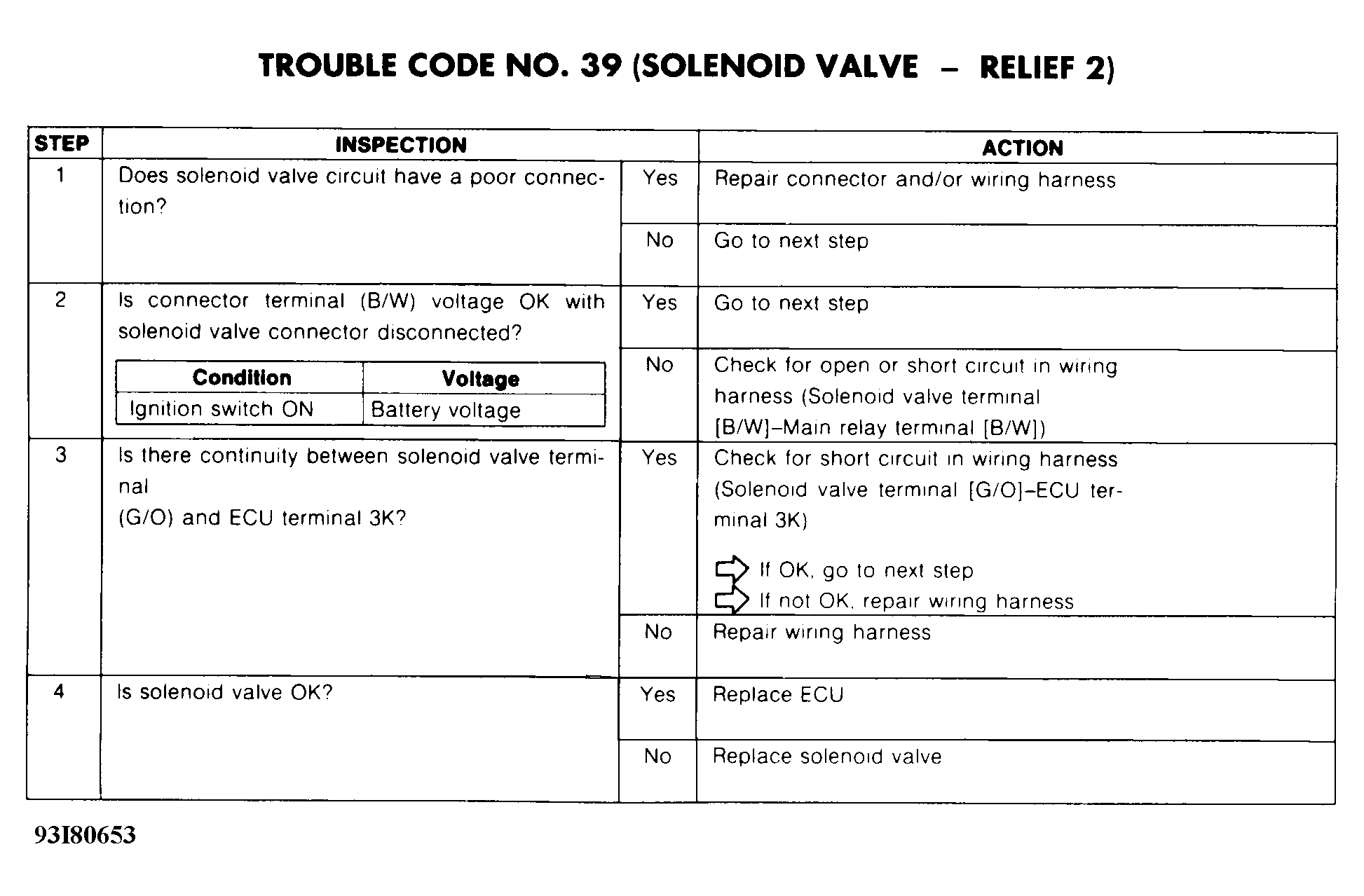

Fig 1: Trouble Code No. 39 - Diagnostic Flowchart
G93I80653Courtesy of MAZDA MOTORS CORP.

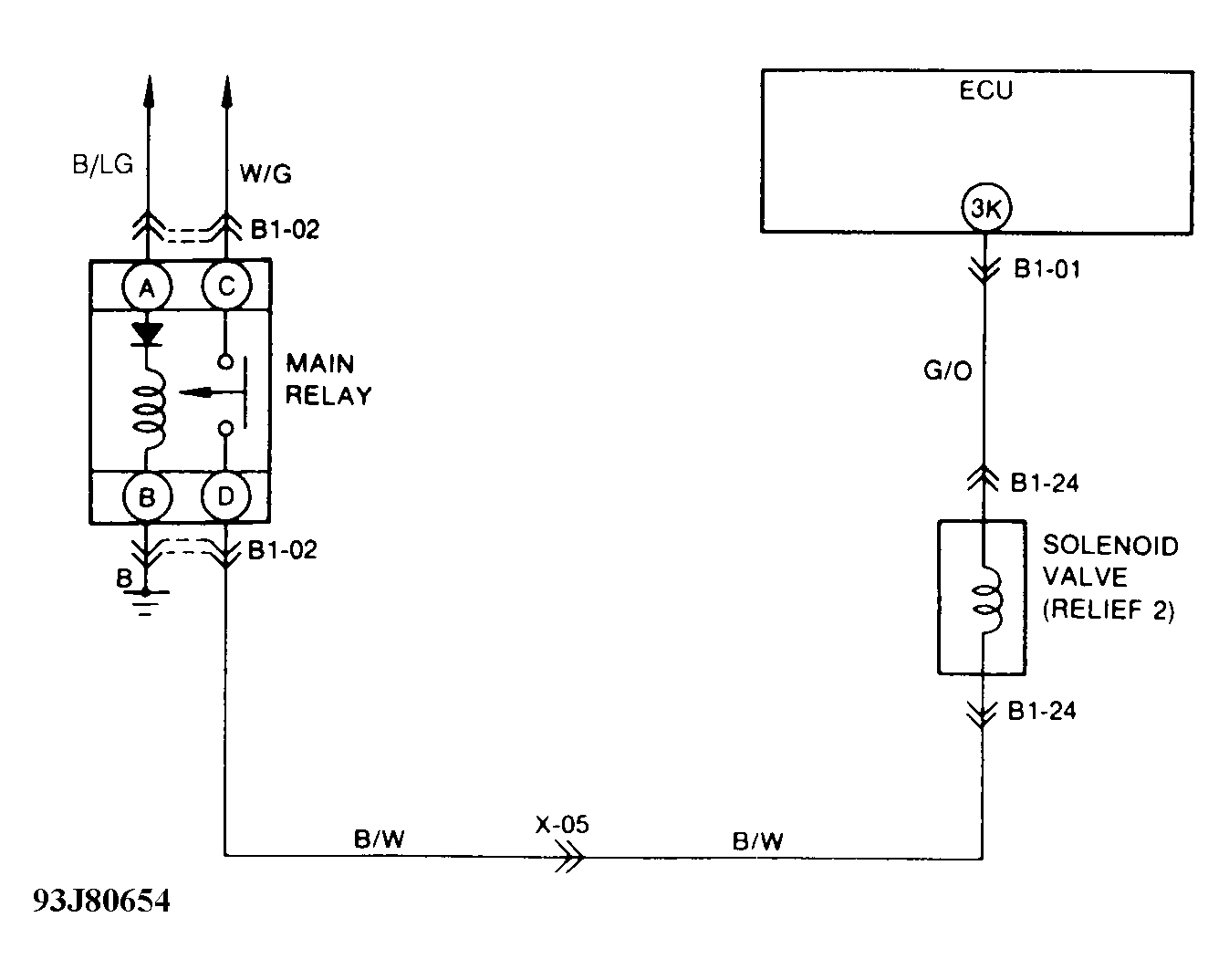

Fig 2: Trouble Code No. 39 - Schematic
G93J80654Courtesy of MAZDA MOTORS CORP.
