Code 43: (Solenoid Valve - WASTEGATE Control)

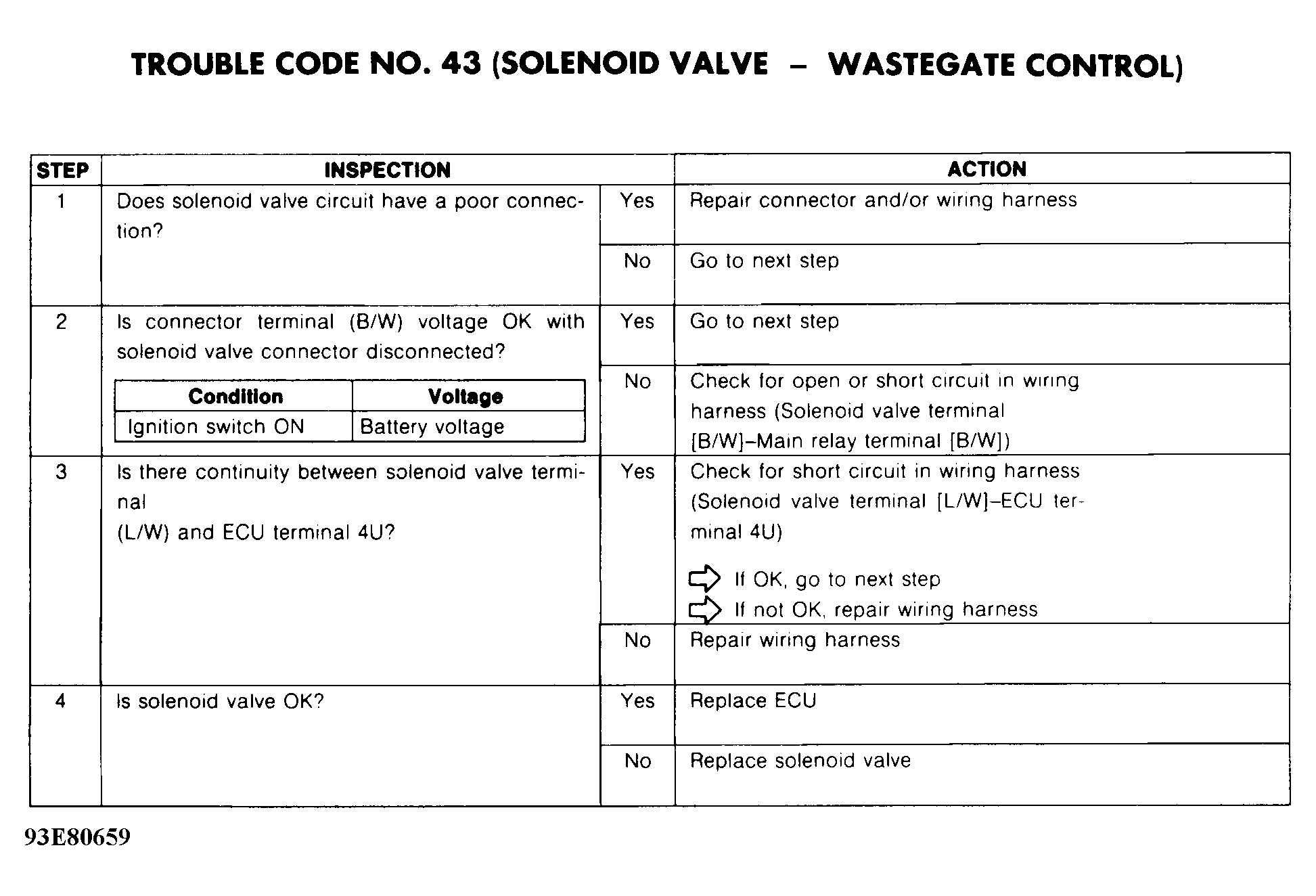

Fig 1: Trouble Code No. 43 - Diagnostic Flowchart
G93E80659Courtesy of MAZDA MOTORS CORP.

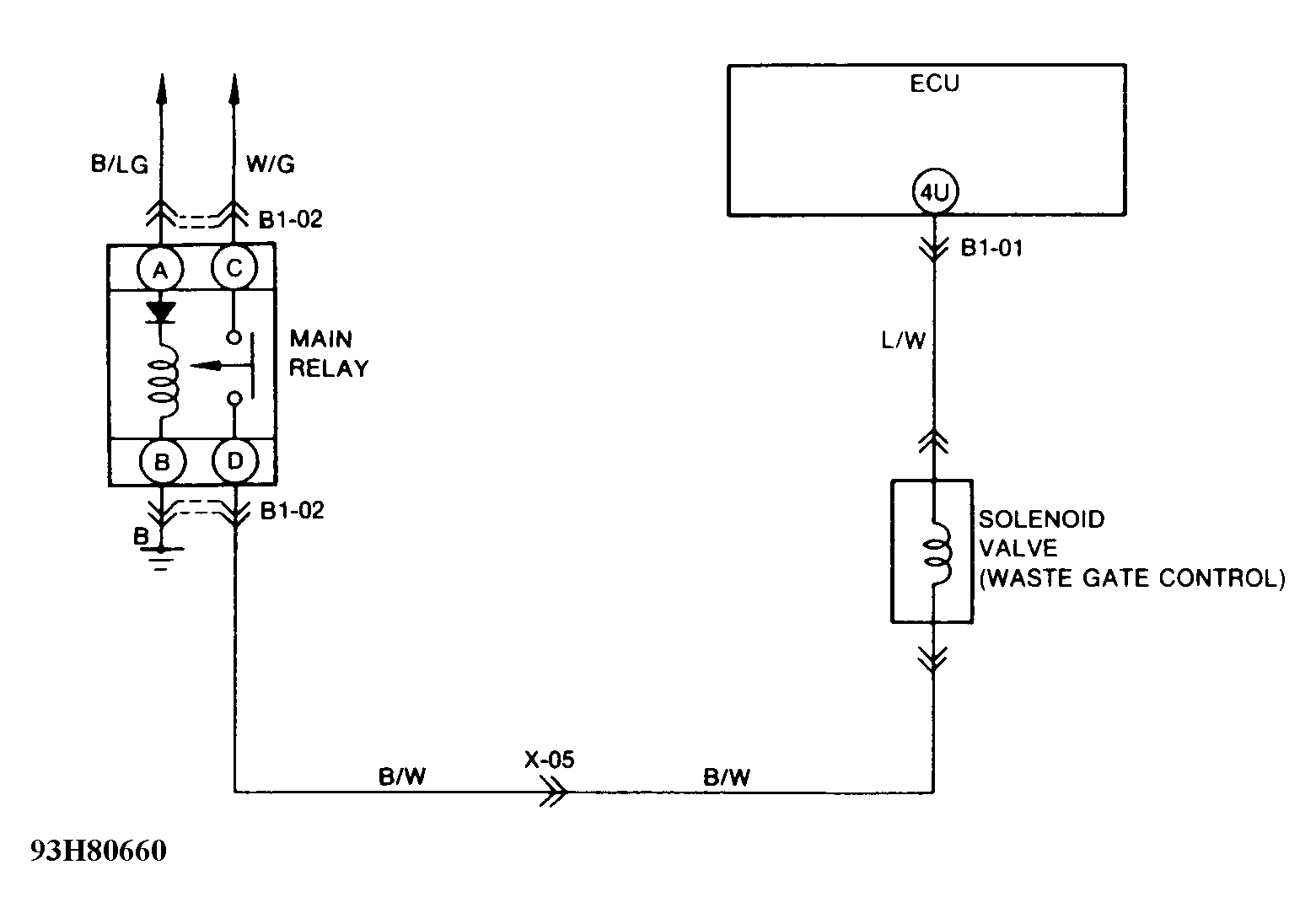

Fig 2: Trouble Code No. 43 - Schematic
G93H80660Courtesy of MAZDA MOTORS CORP.
