Code 76: (Slip Lock-Up Off Signal)

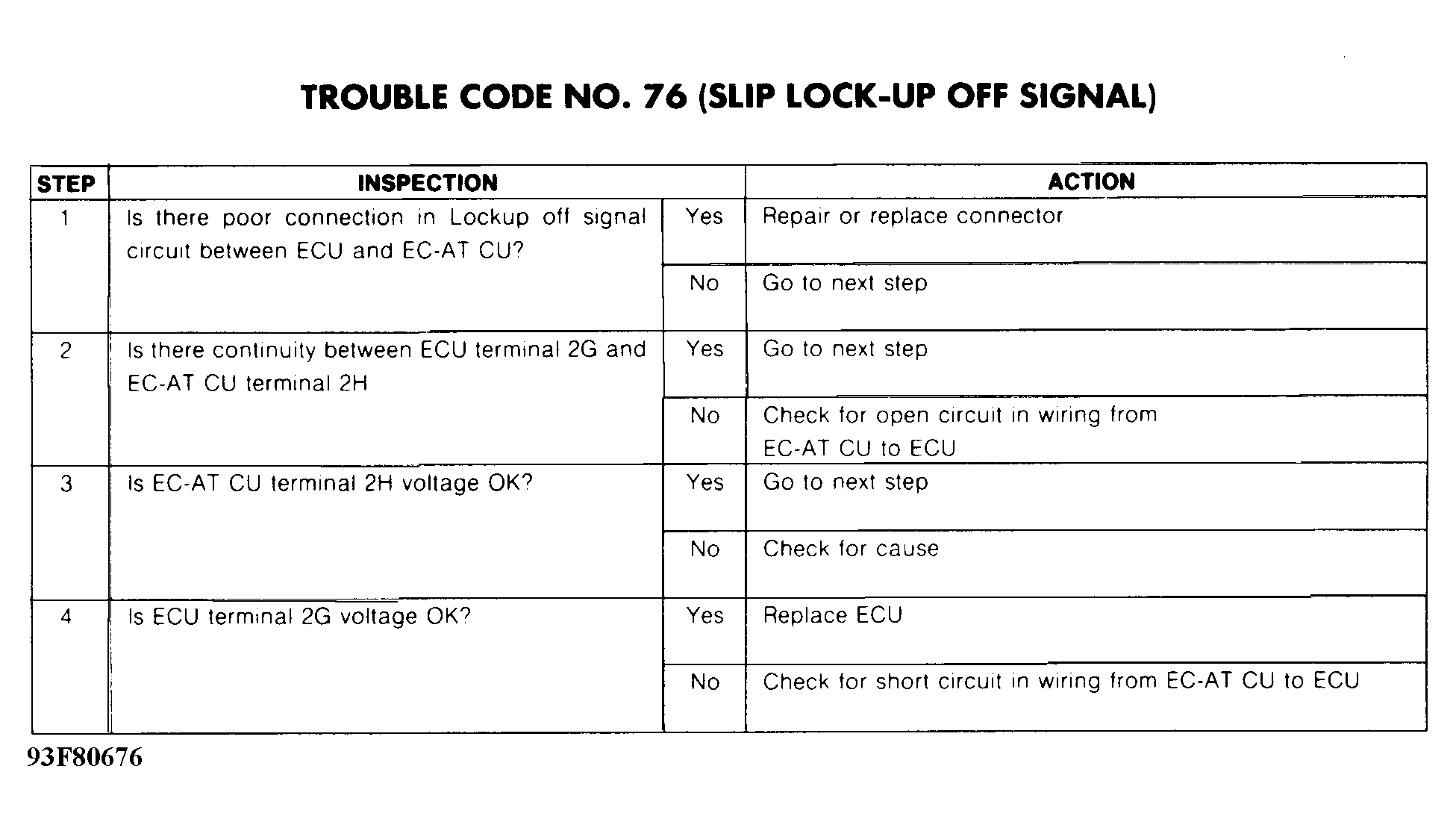

Fig 1: Trouble Code No. 76 - Diagnostic Flowchart
G93F80676Courtesy of MAZDA MOTORS CORP.
Fig 2: Trouble Code No. 76 - Schematic
G93G80677Courtesy of MAZDA MOTORS CORP.
