Code 9: (Water THERMOSENSOR)

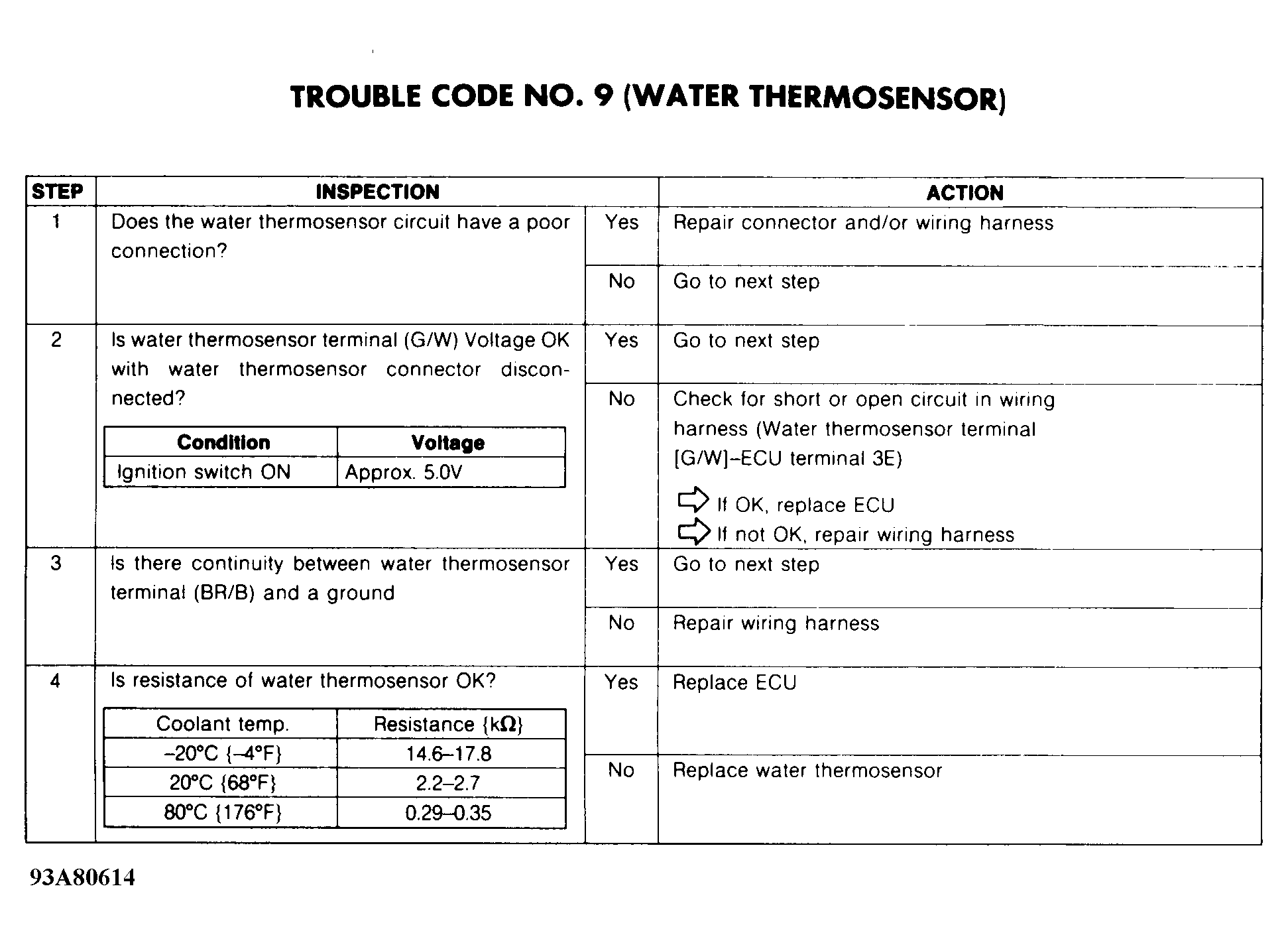

Fig 1: Trouble Code No. 9 - Diagnostic Flowchart
G93A80614Courtesy of MAZDA MOTORS CORP.

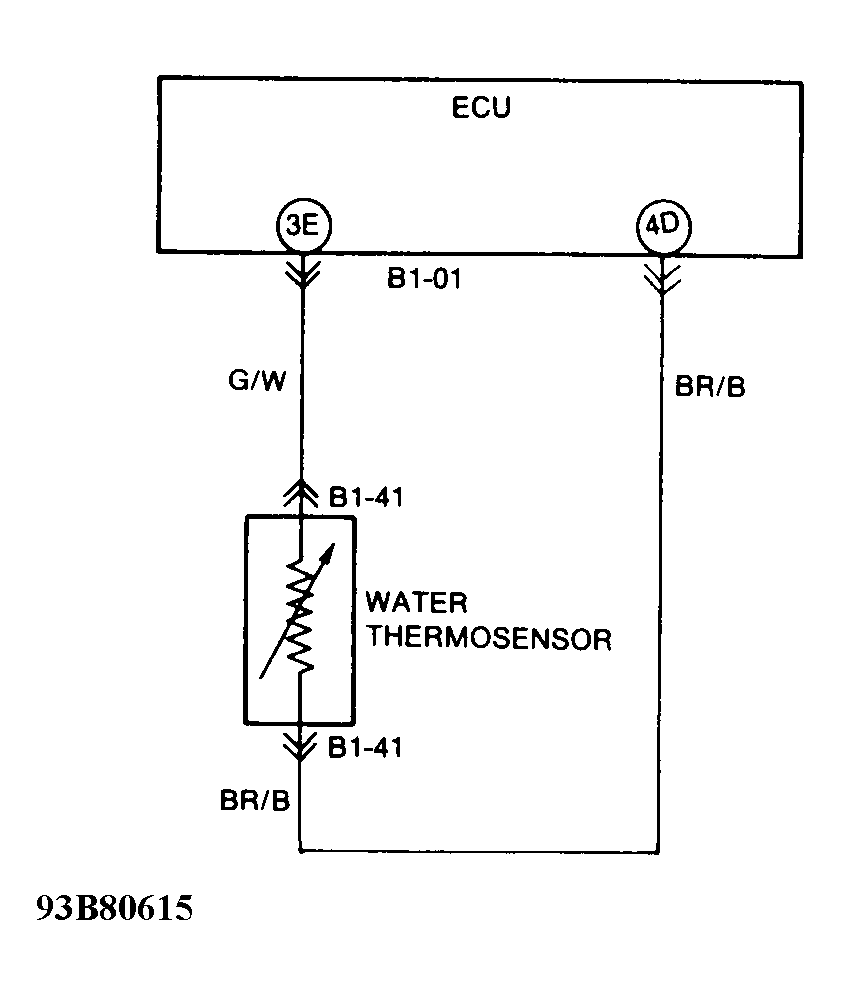

Fig 2: Trouble Code No. 9 - Schematic
G93B80615Courtesy of MAZDA MOTORS CORP.
