Code 30: (Solenoid Valve - Split Air By-Pass)

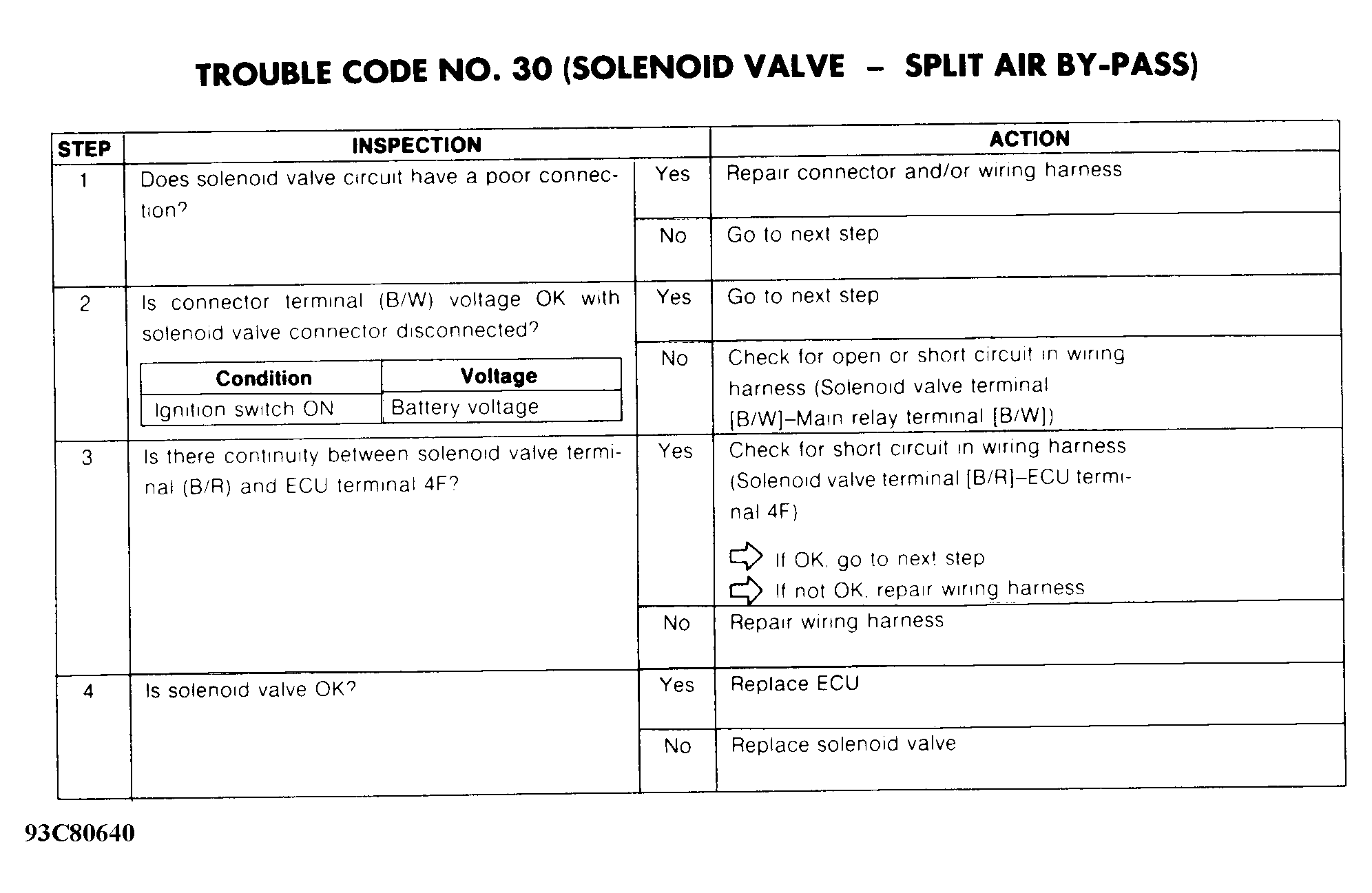

Fig 1: Trouble Code No. 30 - Diagnostic Flowchart
G93C80640Courtesy of MAZDA MOTORS CORP.

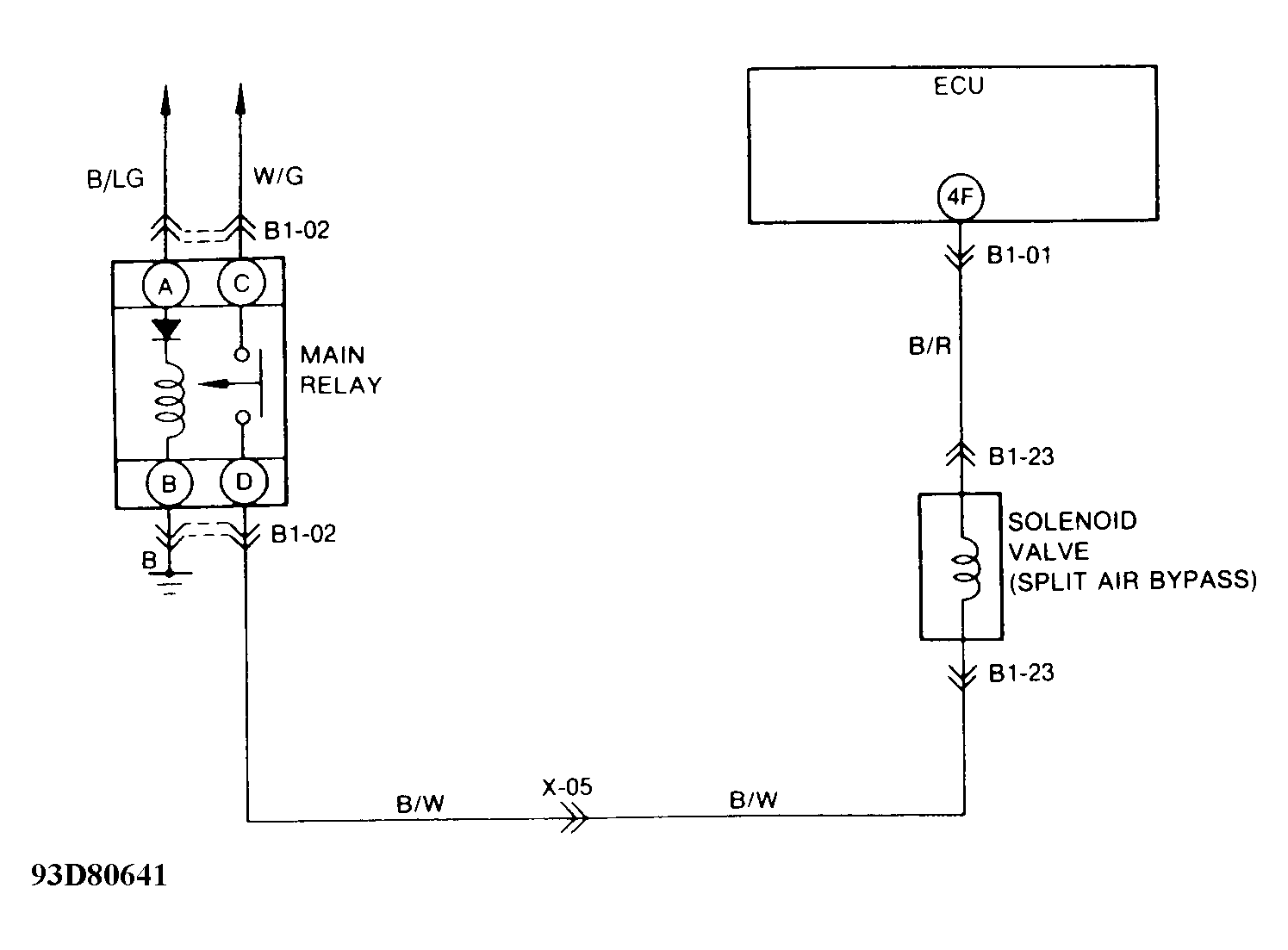

Fig 2: Trouble Code No. 30 - Schematic
G93D80641Courtesy of MAZDA MOTORS CORP.
