Code 42: (Solenoid Valve - Turbo Pre-Control)

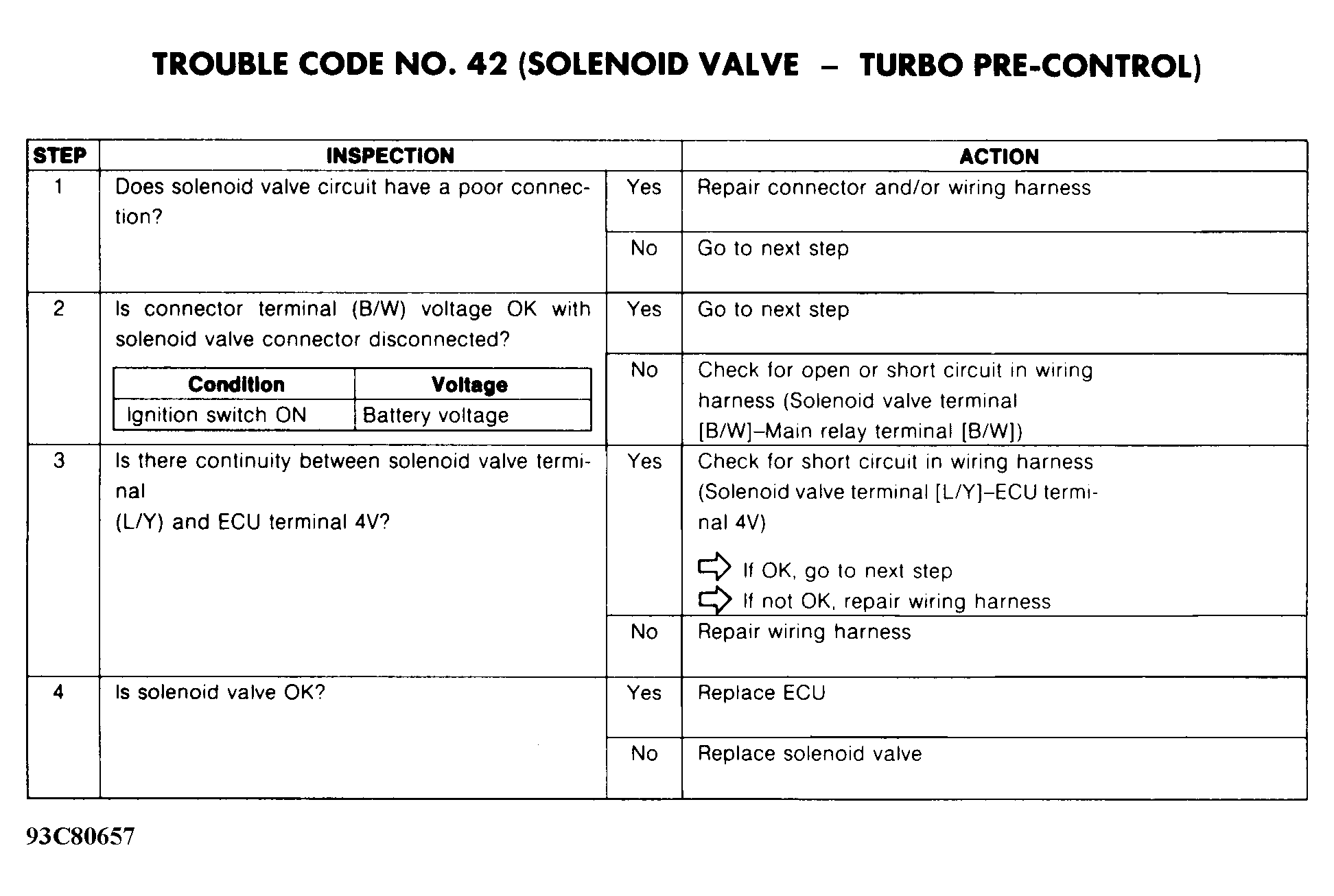

Fig 1: Trouble Code No. 42 - Diagnostic Flowchart
G93C80657Courtesy of MAZDA MOTORS CORP.

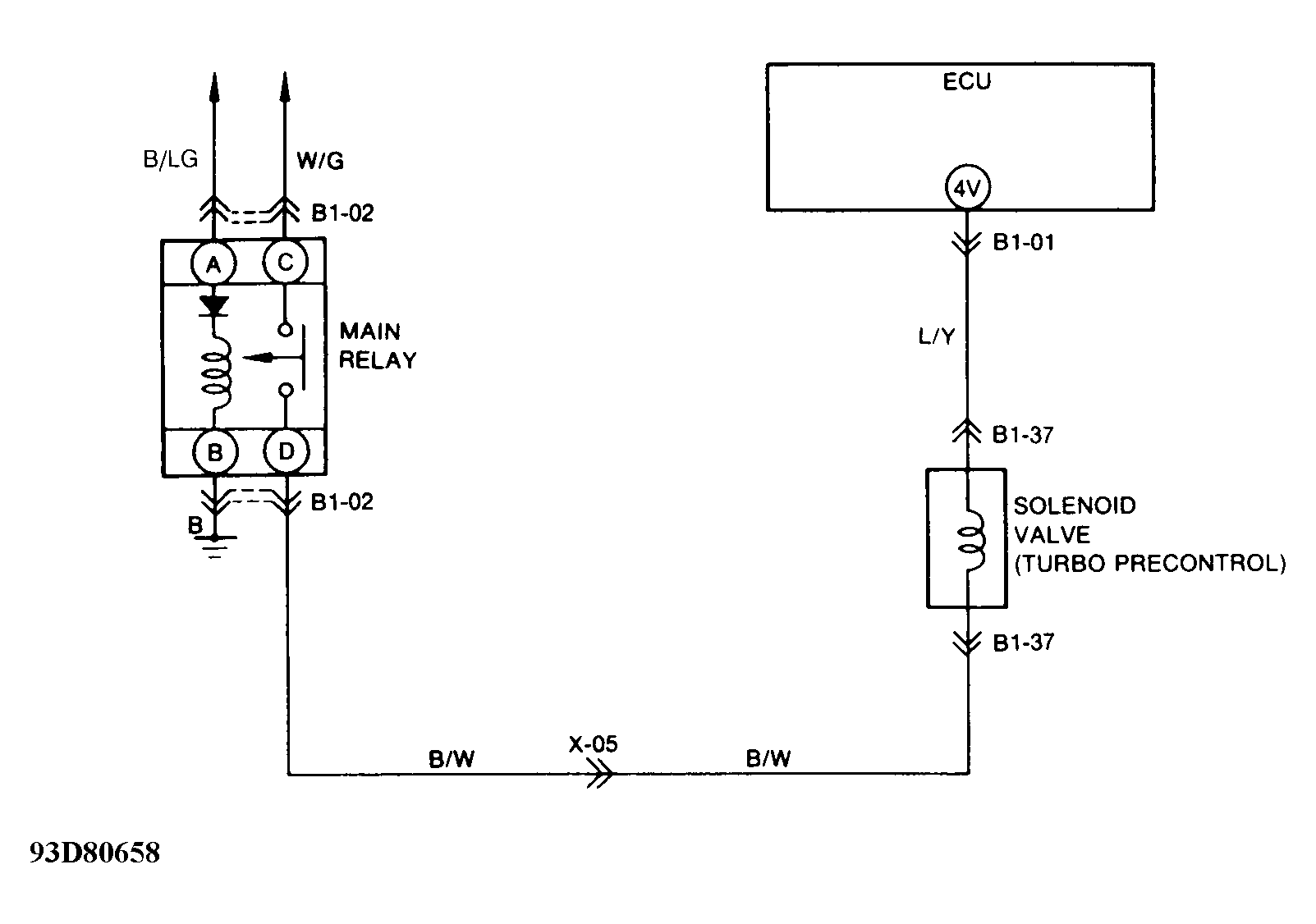

Fig 2: Trouble Code No. 42 - Schematic
G93D80658Courtesy of MAZDA MOTORS CORP.
