Code 45: (Solenoid Valve - Charge Control)

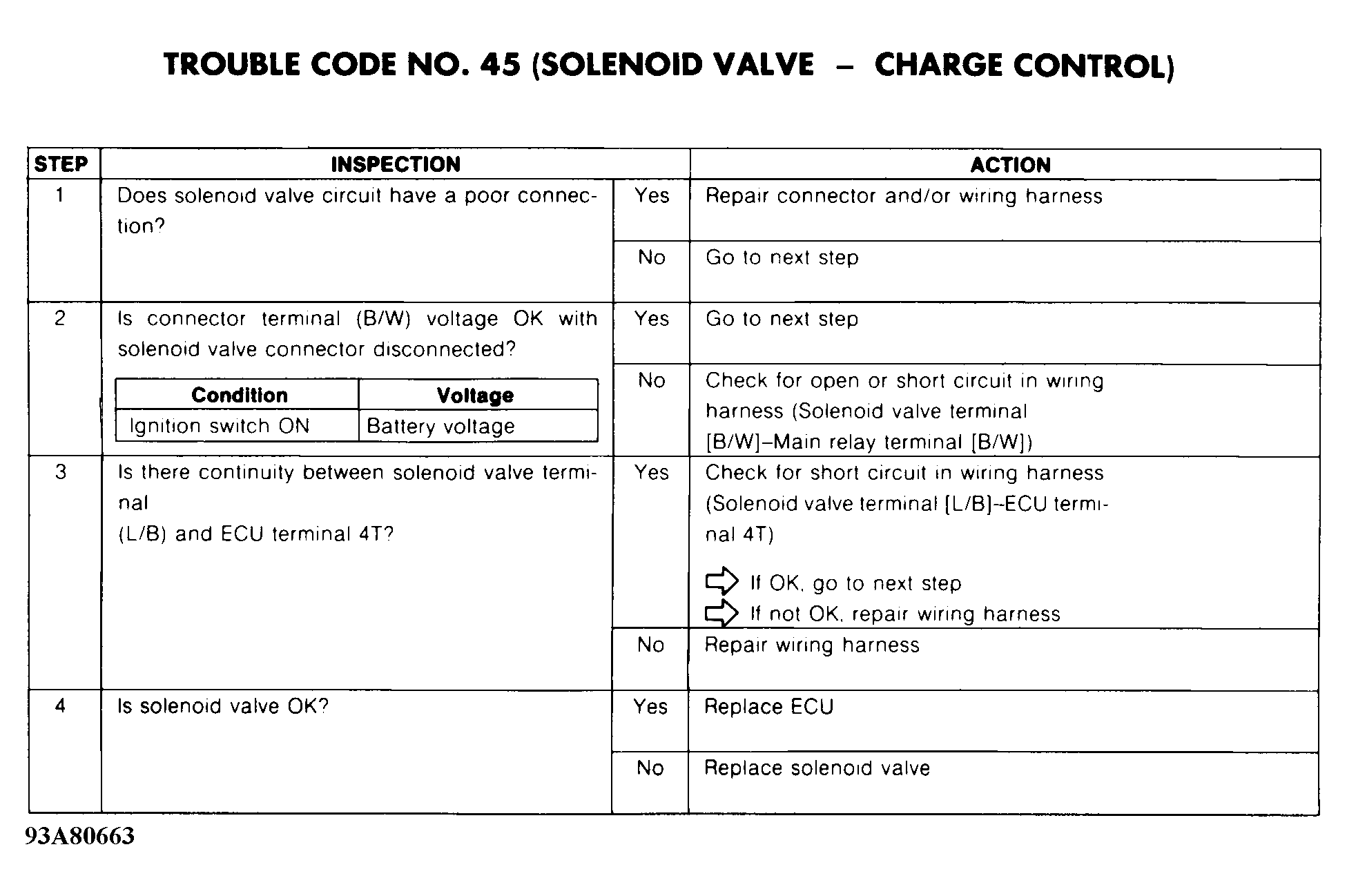

Fig 1: Trouble Code No. 45 - Diagnostic Flowchart
G93A80663Courtesy of MAZDA MOTORS CORP.

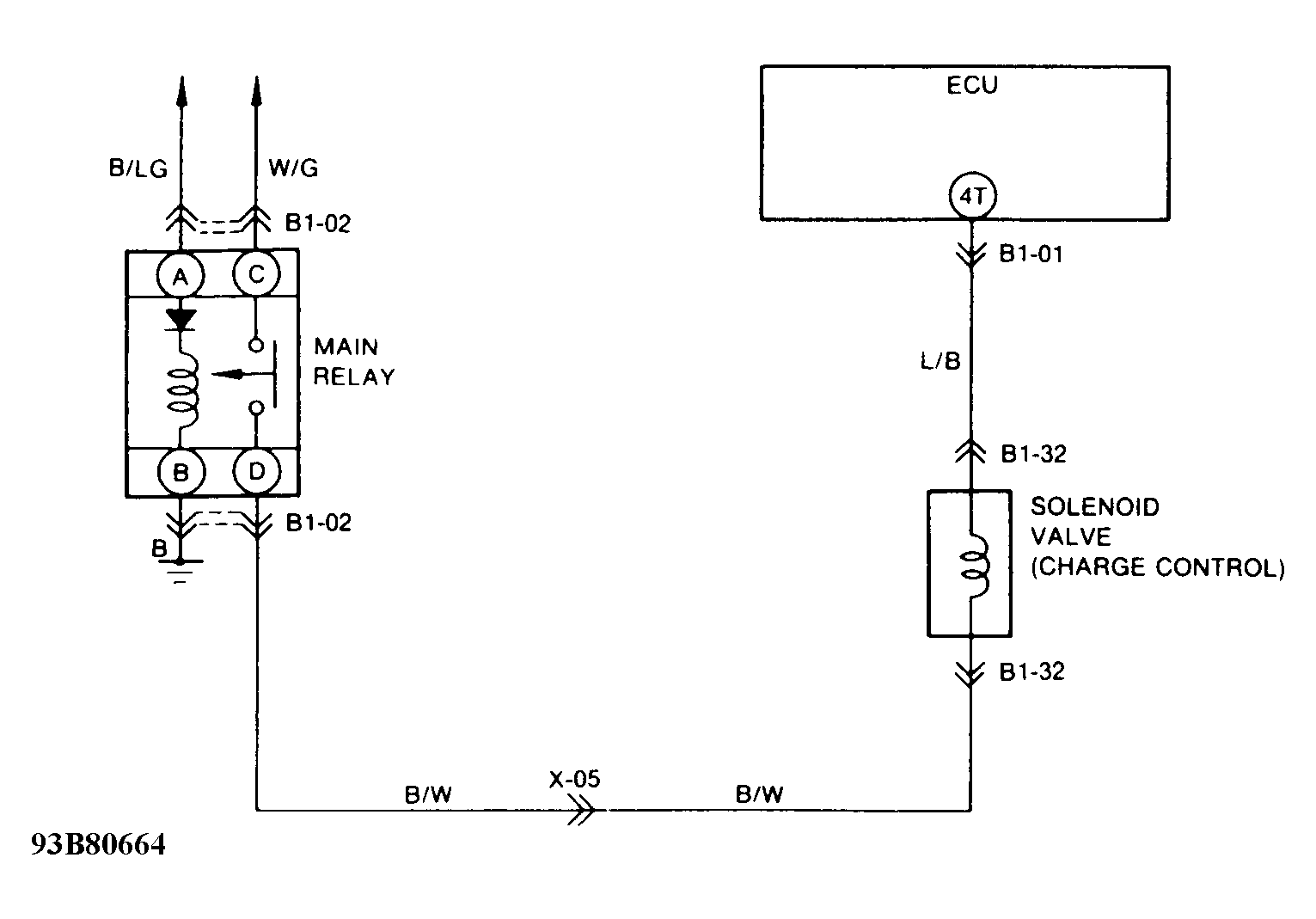

Fig 2: Trouble Code No. 45 - Schematic
G93B80664Courtesy of MAZDA MOTORS CORP.
