Code 51: (Fuel Pump Relay)

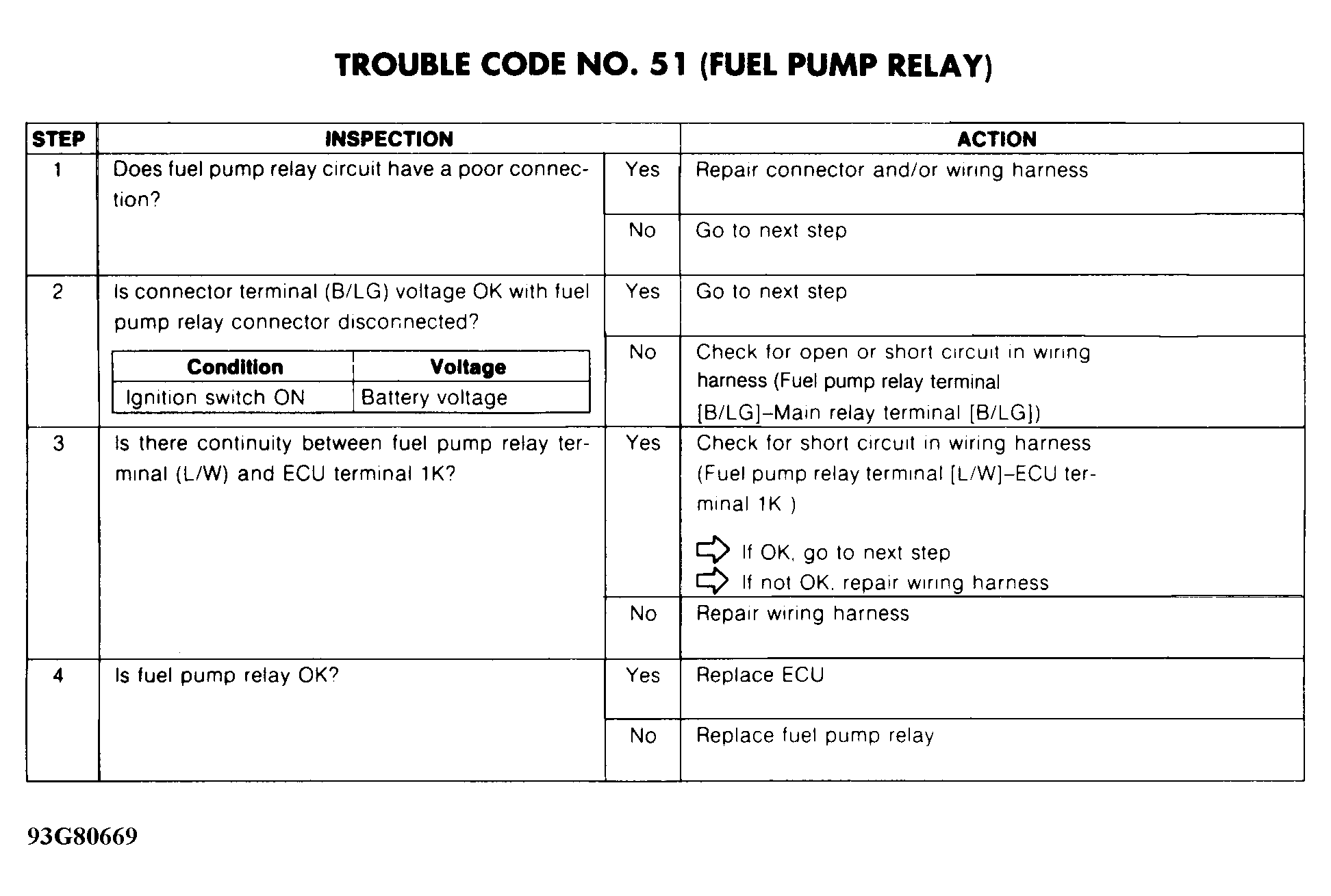

Fig 1: Trouble Code No. 51 - Diagnostic Flowchart
G93G80669Courtesy of MAZDA MOTORS CORP.

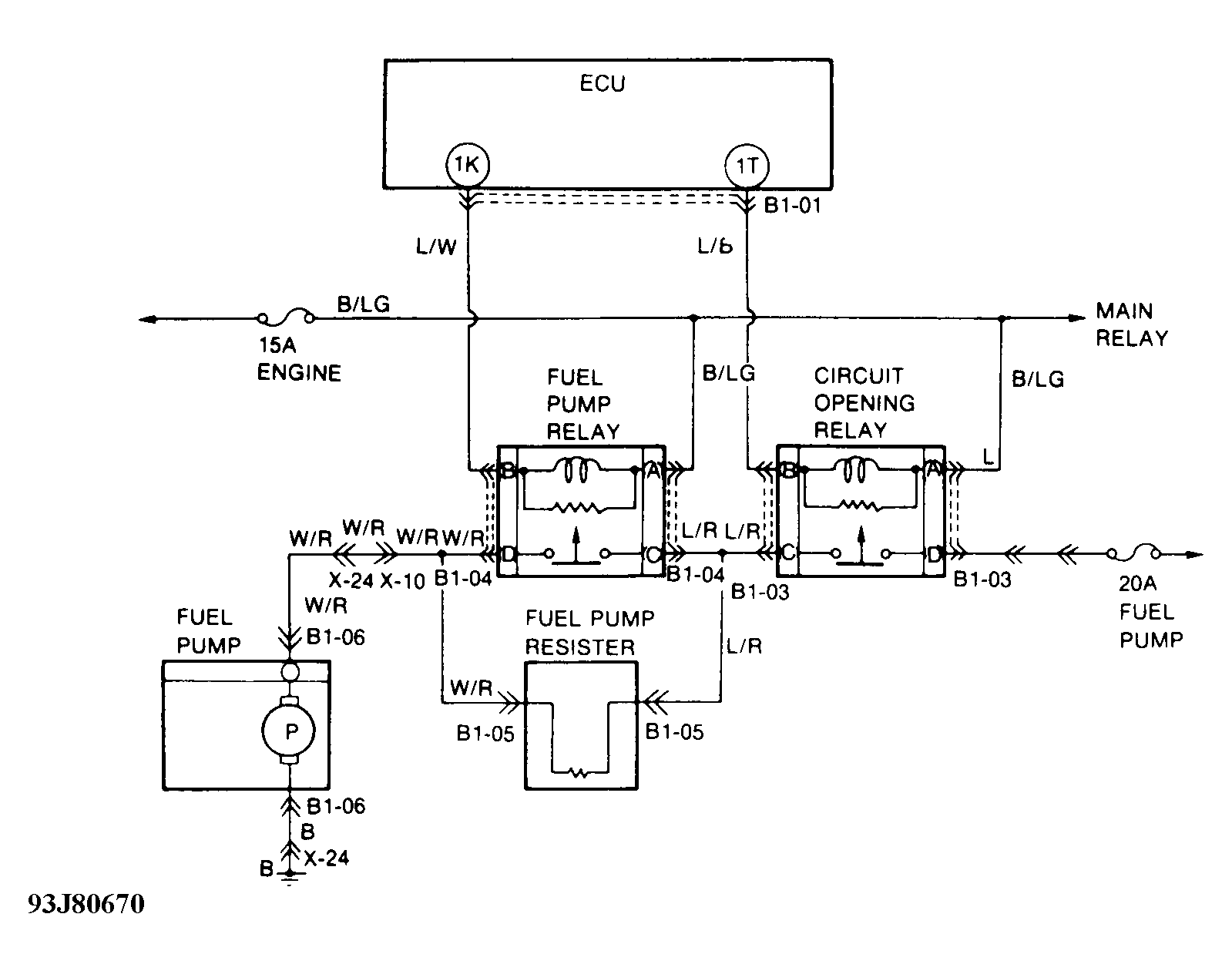

Fig 2: Trouble Code No. 51 - Schematic
G93J80670Courtesy of MAZDA MOTORS CORP.
