Testing Sequence

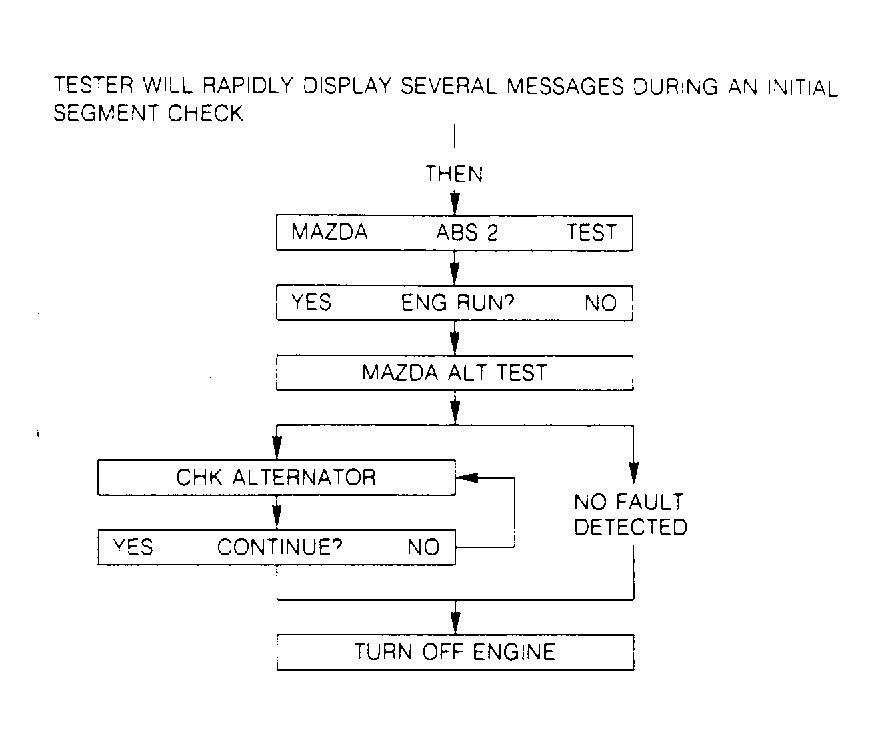

Fig 1: Power Up/Alternator Test/ABS System Test (1 of 9)
G90E09903Courtesy of MAZDA MOTORS CORP.

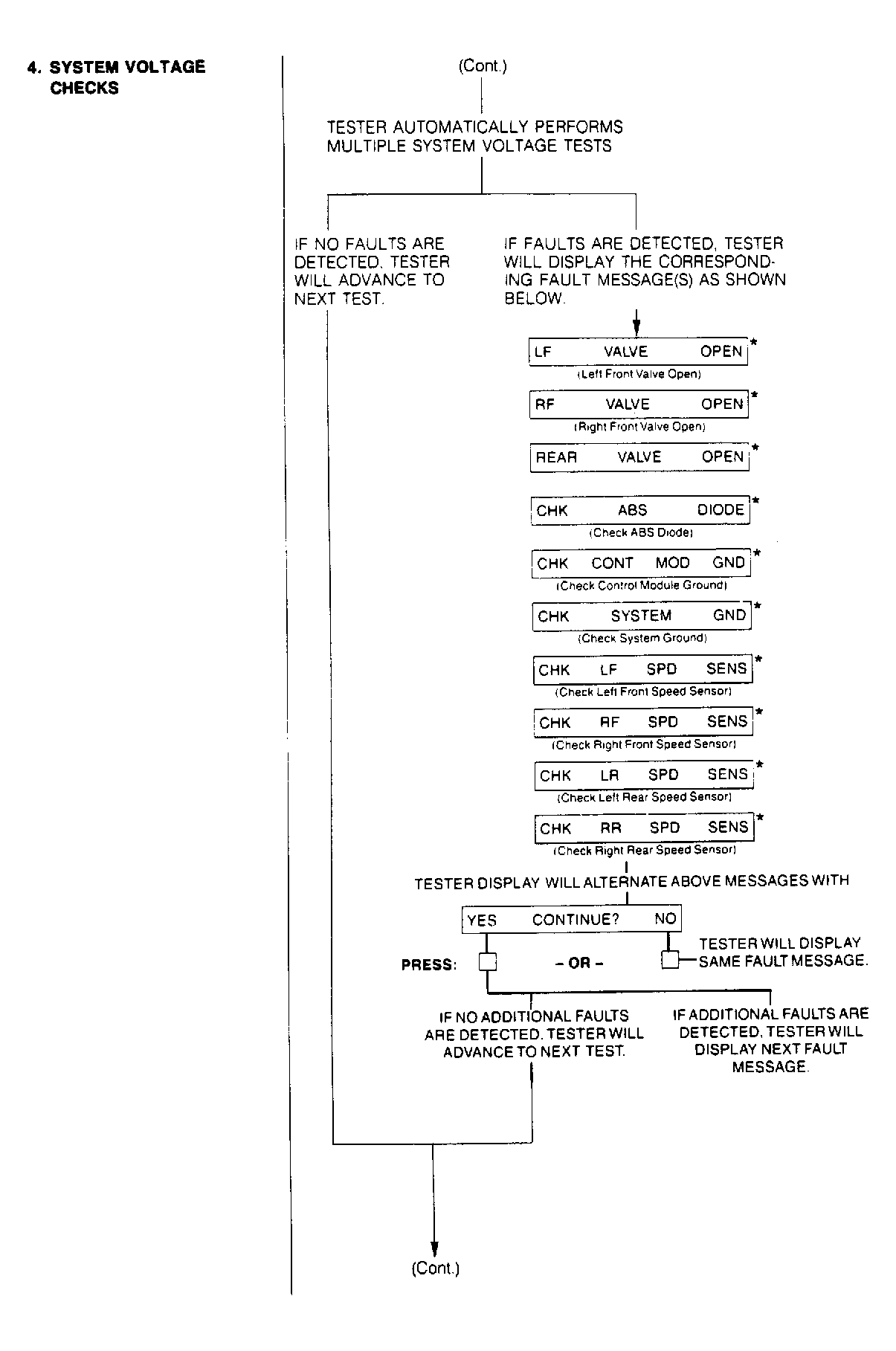

Fig 2: System Voltage Checks (2 of 9)
G90G09904Courtesy of MAZDA MOTORS CORP.

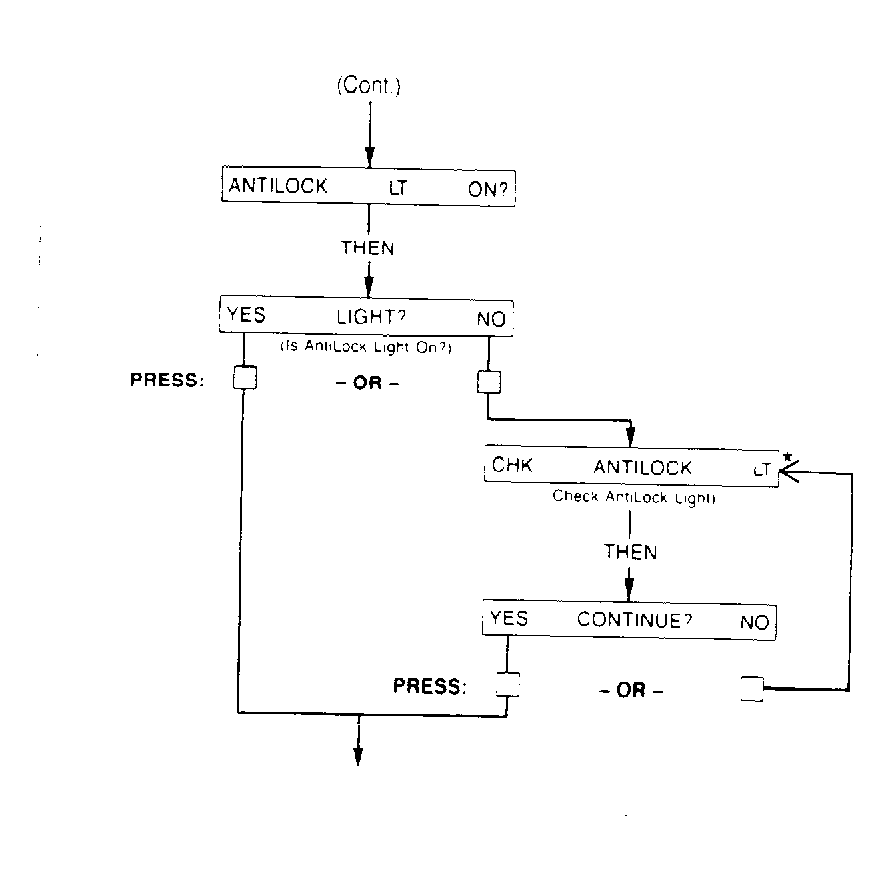

Fig 3: Static Tests/Brake Light Switch Test (3 of 9)
G90J09905Courtesy of MAZDA MOTORS CORP.
Fig 4: Pump Test (4 of 9)
G90B09906Courtesy of MAZDA MOTORS CORP.

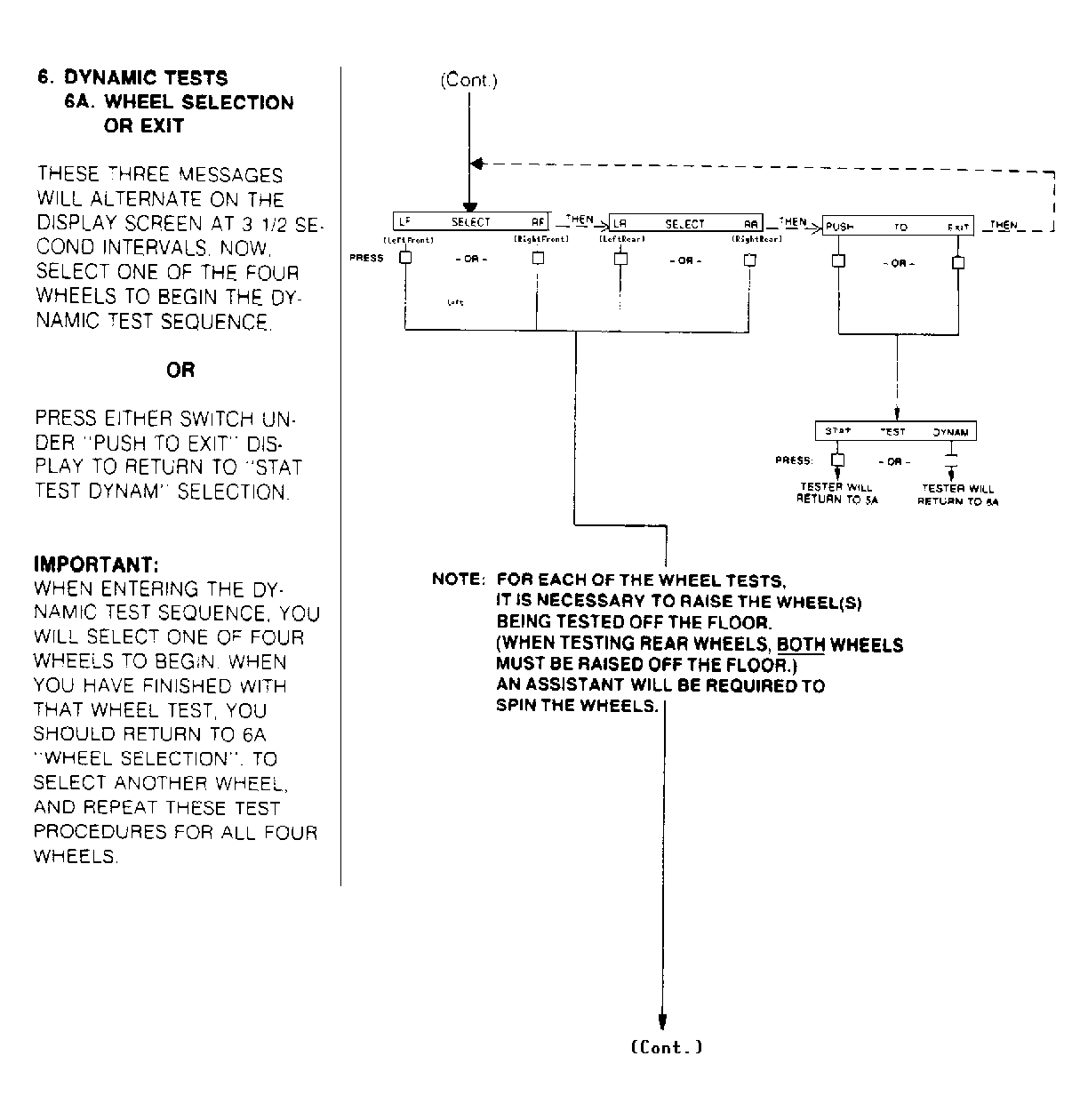

Fig 5: Dynamic Tests/Wheel Sensor Test (5 of 9)
G90D09907Courtesy of MAZDA MOTORS CORP.
Fig 6: Wheel Sensor Test (Cont.)/Solenoid Test (6 of 9)
G90F09908Courtesy of MAZDA MOTORS CORP.

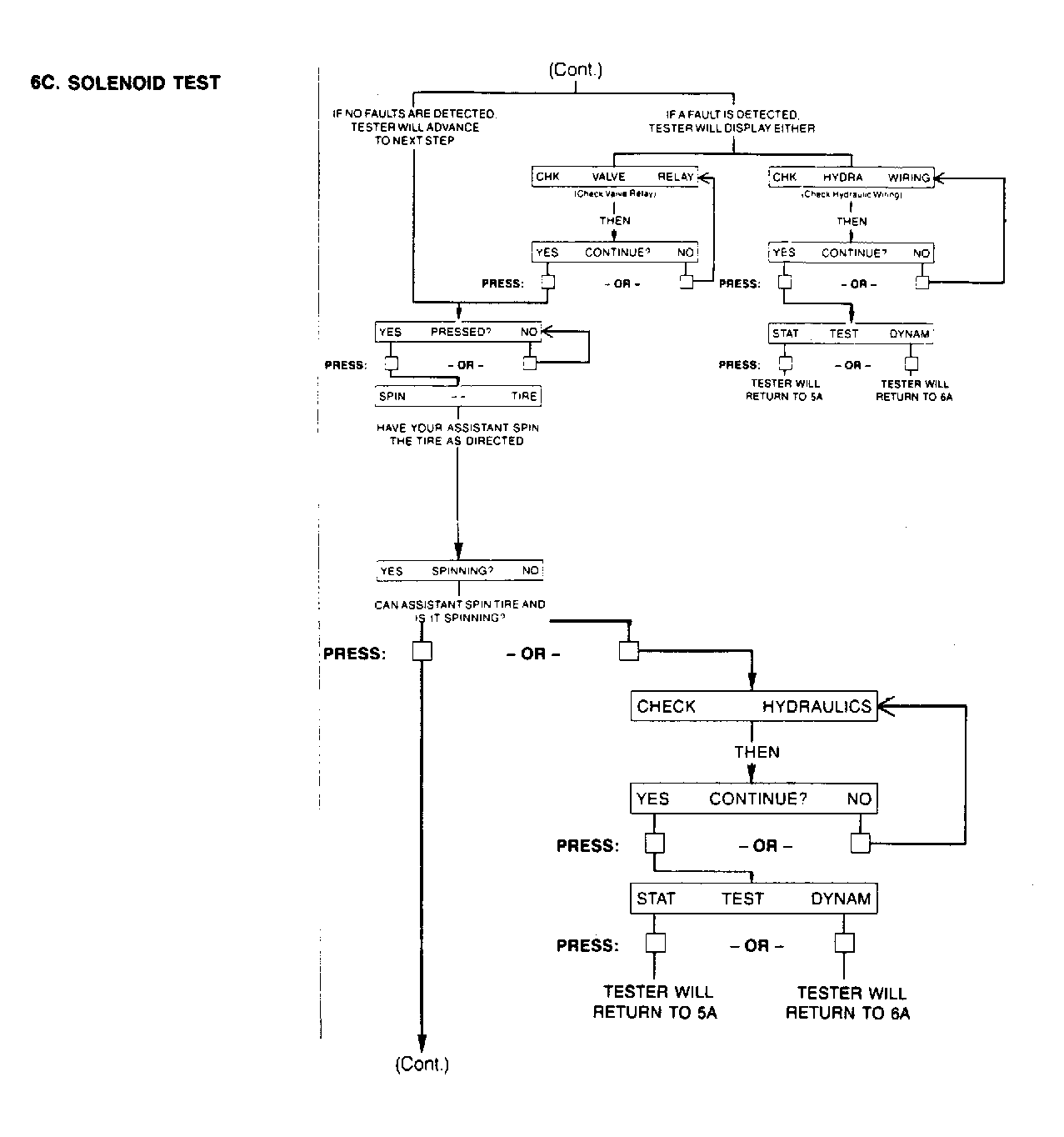

Fig 7: Solenoid Test (Cont.) (7 of 9)
G90H09909Courtesy of MAZDA MOTORS CORP.

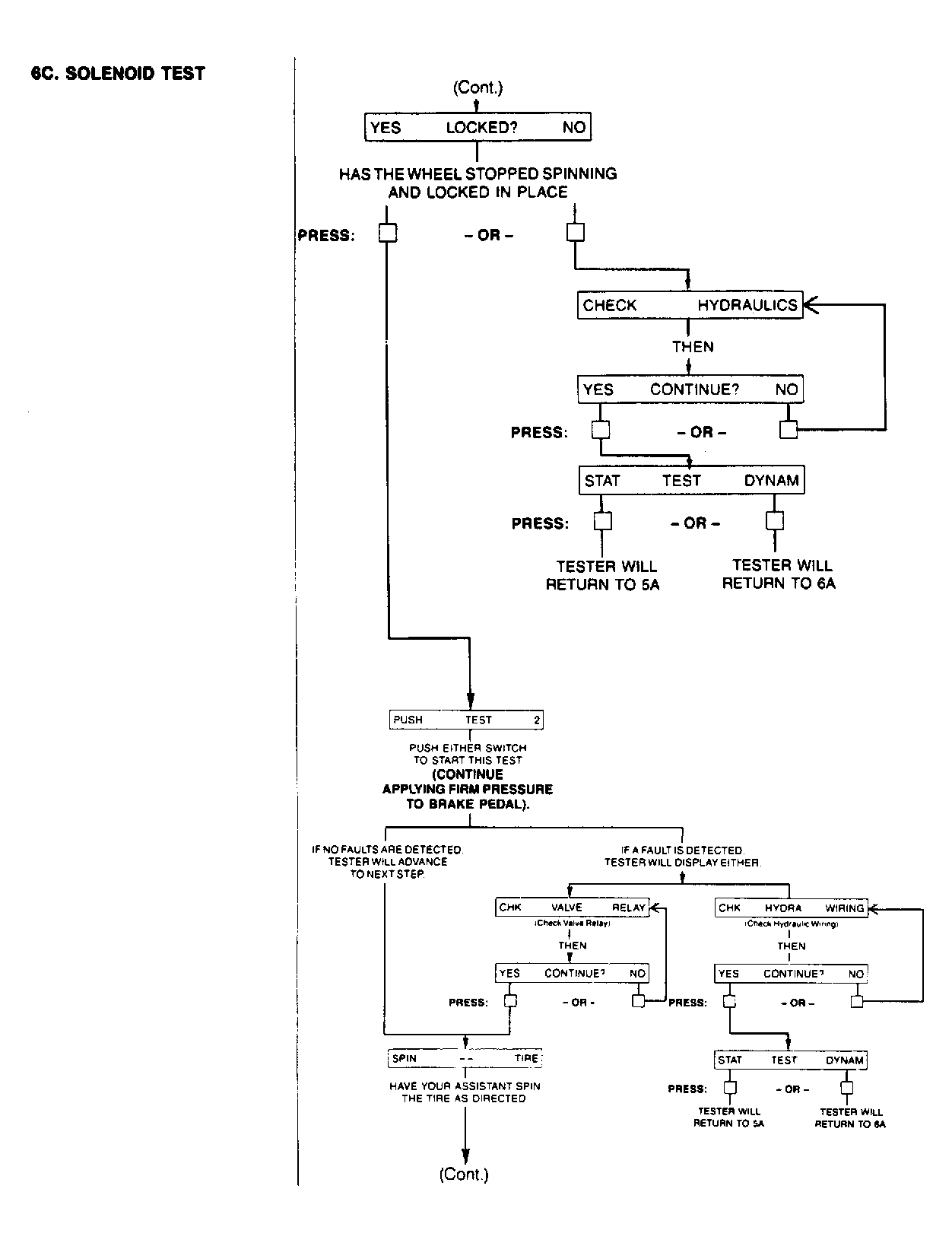

Fig 8: Solenoid Test (Cont.) (8 of 9)
G90J09910Courtesy of MAZDA MOTORS CORP.

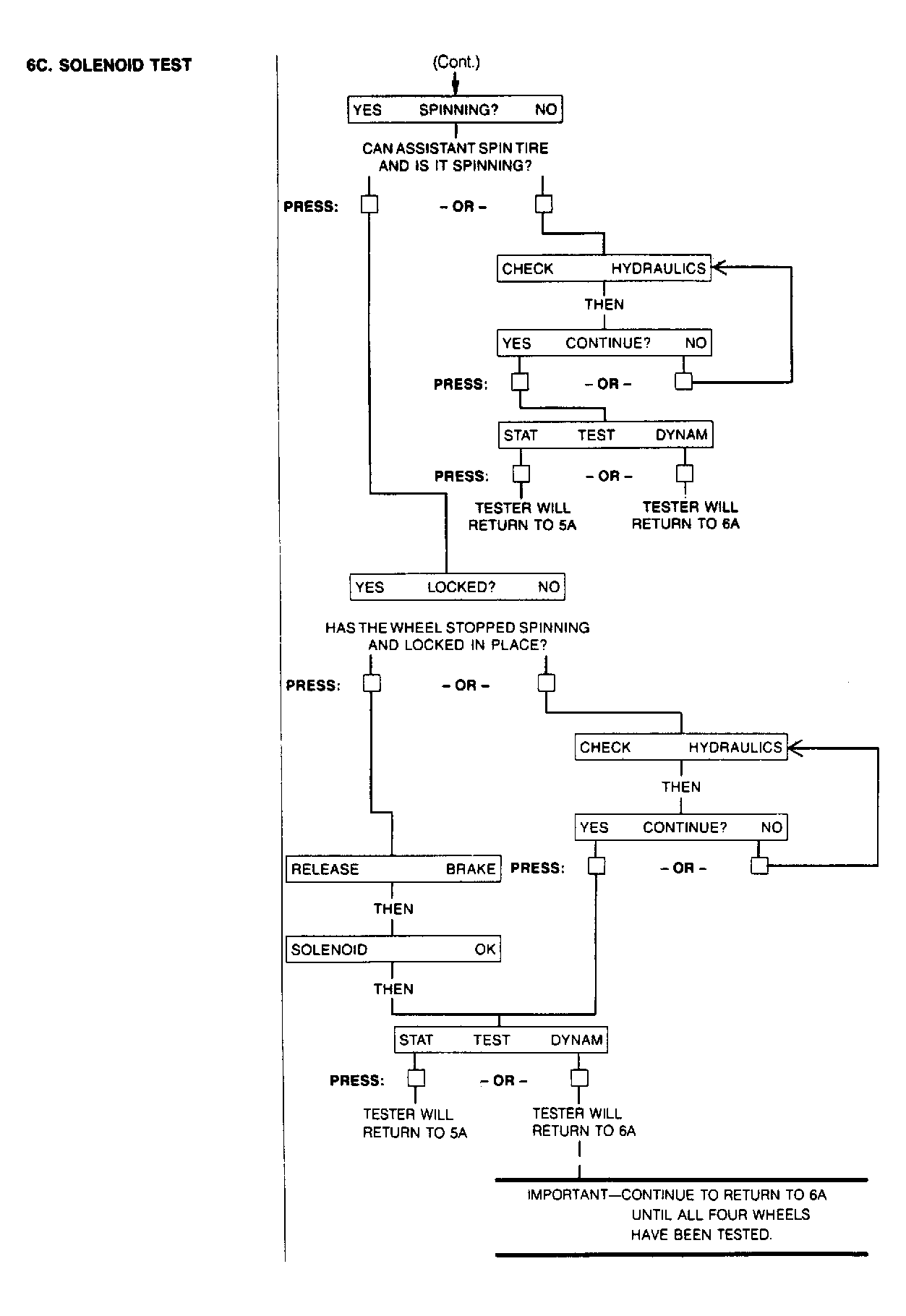

Fig 9: Solenoid Test (Cont.) (9 of 9)
G90B09911Courtesy of MAZDA MOTORS CORP.
