Connecting Abs Tester
CAUTION:
DO NOT drive vehicle with ABS Tester (0000-42-0010) connected.

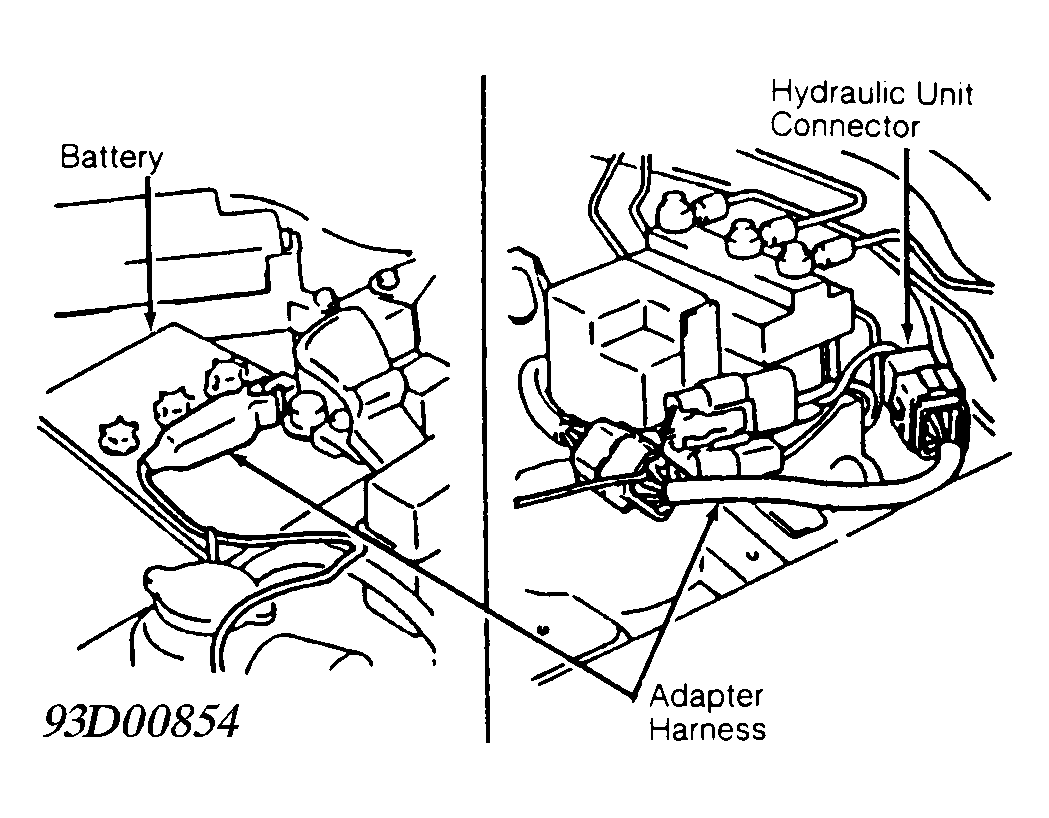

Turn ignition off. Connect Adapter Harness (49-H066-003) between hydraulic unit harness connector and battery positive terminal. See Fig 1 . Remove rear seat cushion and rear seat back, and remove ABS control unit protector panel. Connect ABS Tester (0000-42-0010) harness to harness side of ABS control unit connector. Proceed to TESTING SEQUENCE charts under DIAGNOSING ABS. When diagnosing ABS, complete tests in the order given under TESTING SEQUENCE.
