Ignition Coil Resistance

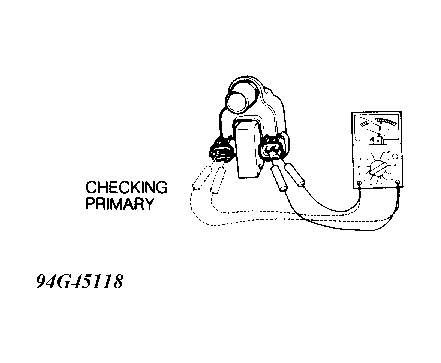

- Remove primary and secondary leads from ignition coil. Using ohmmeter, check primary resistance between positive and negative terminals of coil. See Fig 1 . Resistance should be as specified in IGNITION COIL RESISTANCE table. If resistance is not as specified, replace ignition coil.
- Check secondary resistance between (positive) terminal and coil tower. See Fig 1 . See IGNITION COIL RESISTANCE table. If resistance is not within specification, replace coil.
IGNITION COIL RESISTANCE - Ohms 68°F (20°C)
| Application | Primary | Secondary |
|---|---|---|
| 929 | .77-1.0 | 9000-17,000 |
