Code 36 & 37: (Right/Left O2 Sensor Heater Relay)

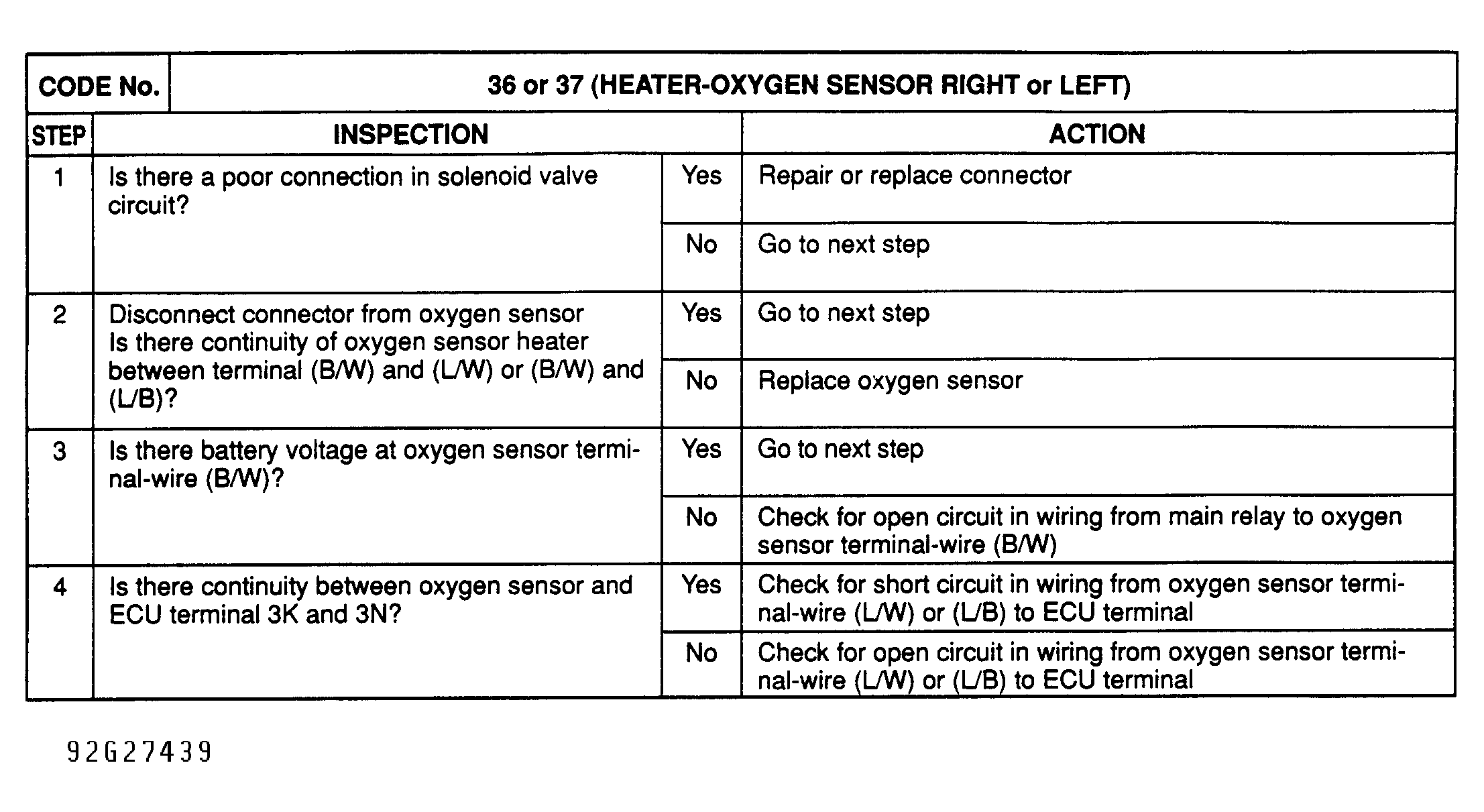

Fig 1: Trouble Code No. 36/37 Diag. Chart (R/L O2 Sensor Htr. Rly.)
G92G27439Courtesy of MAZDA MOTORS CORP.
