Service Code Definition Charts

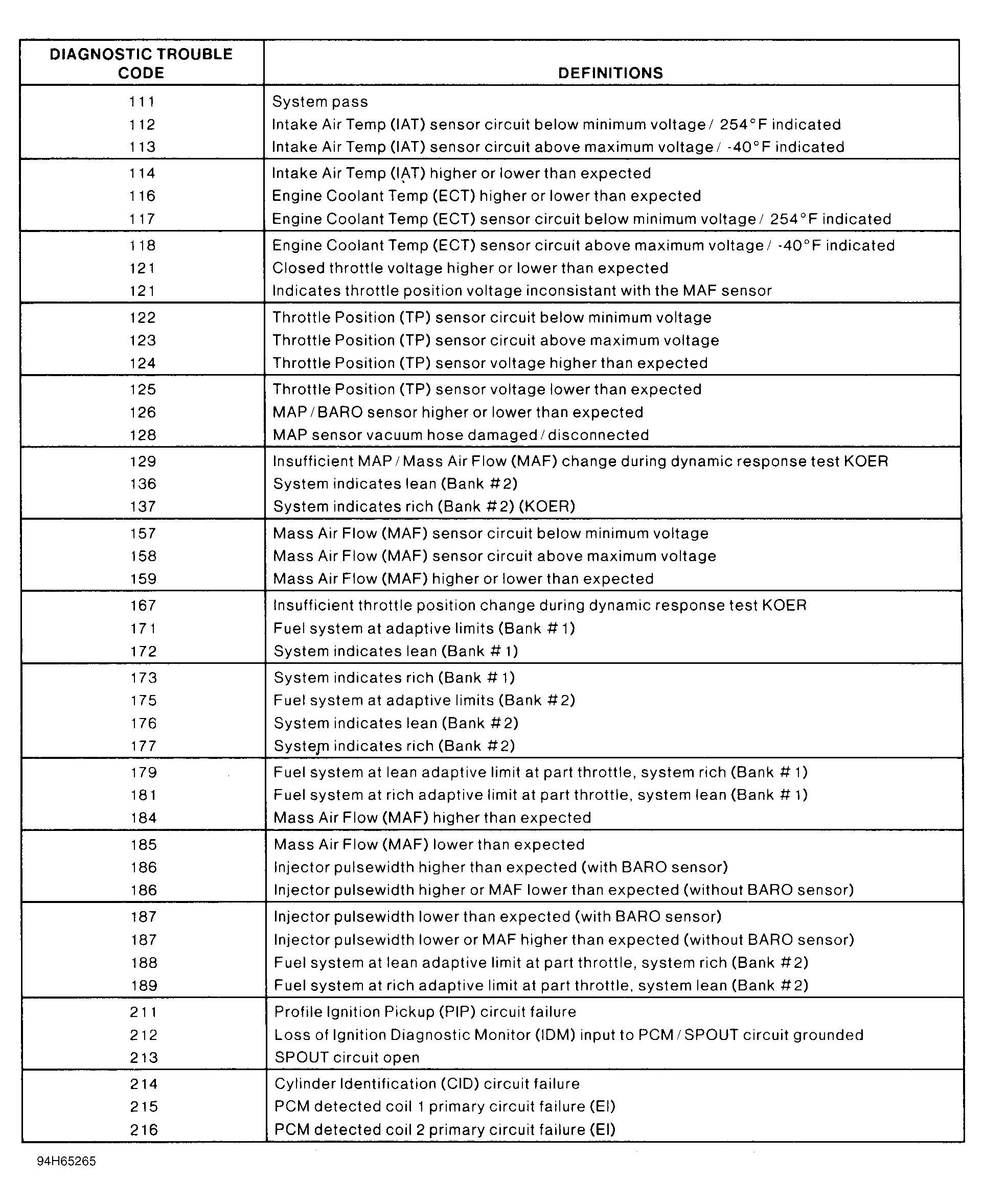

Fig 1: Diagnostic Trouble Codes 111-216
G94H65265Courtesy of FORD MOTOR CO.

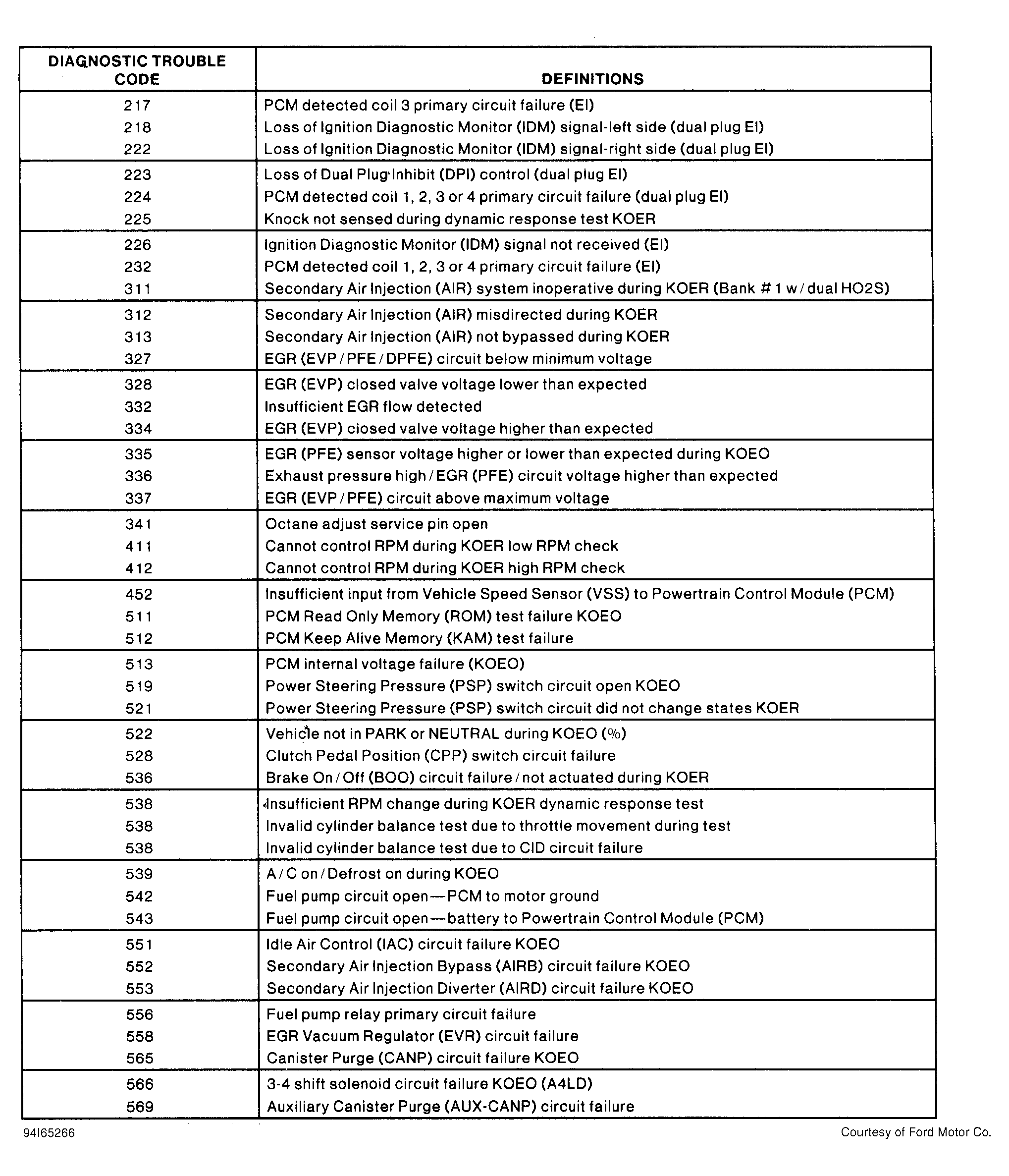

Fig 2: Diagnostic Trouble Codes 217-569
G94I65266Courtesy of FORD MOTOR CO.

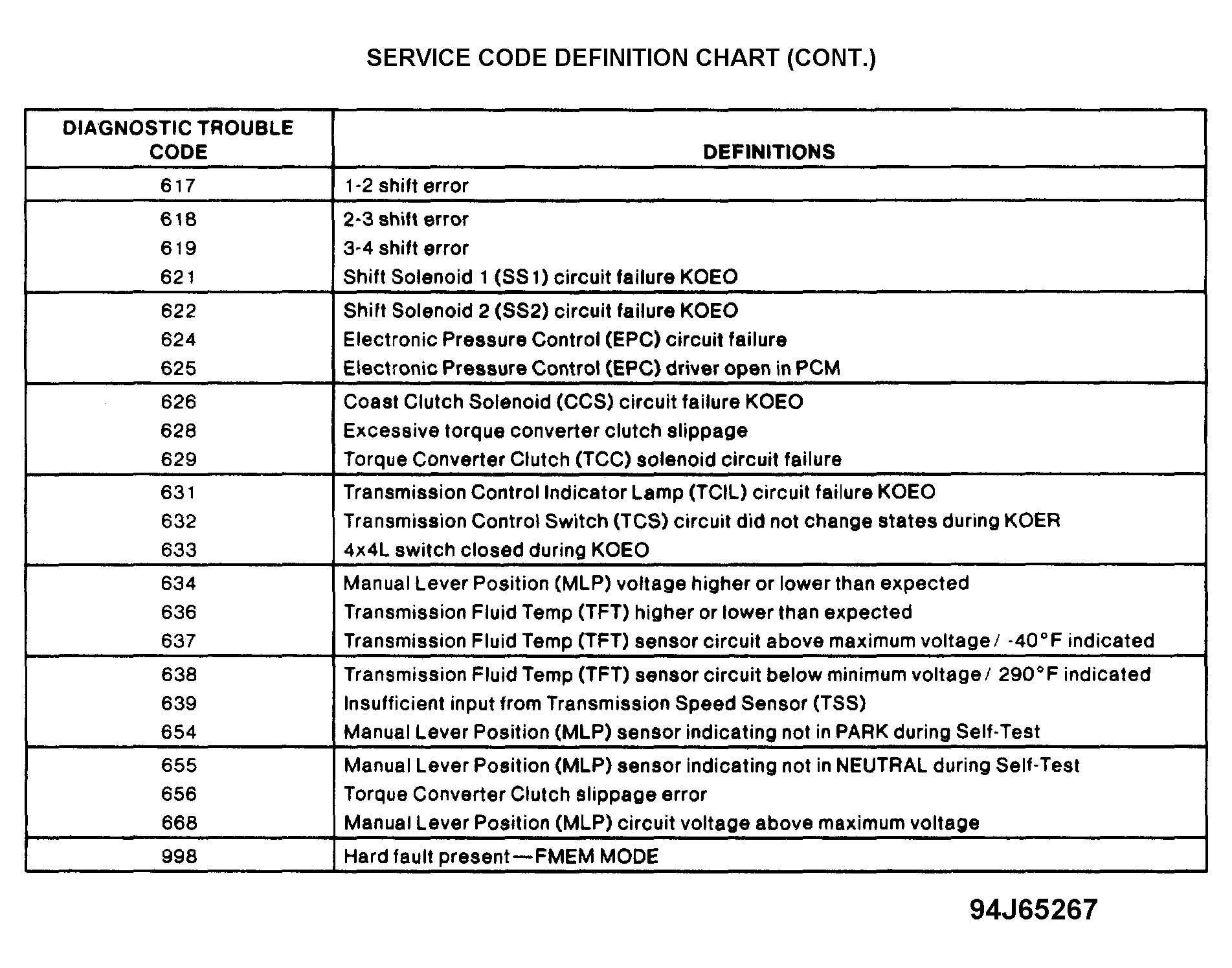

Fig 3: Diagnostic Trouble Codes 617-998
G94J65267Courtesy of FORD MOTOR CO.
