Throttle Position (TP) Sensor: Adjustment

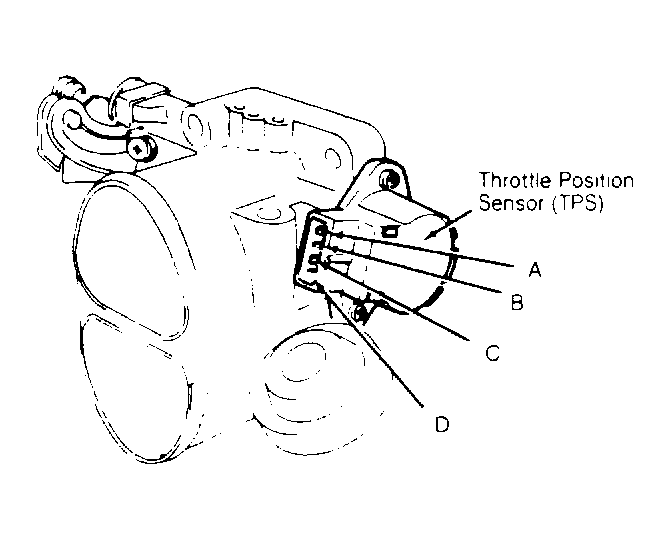

- Insert a feeler gauge of specified thickness between throttle lever and throttle stop screw. See TP SENSOR ADJUSTMENT (3.0L) table. Check continuity between TP sensor connector terminals "C" and "D". See Fig 1 .
- If continuity is not as specified, loosen TP sensor mounting screws. Rotate TP sensor until continuity is as specified. Tighten mounting screws. Connect TP sensor connector.
TP SENSOR RESISTANCE
| Application | Ohms | ||
|---|---|---|---|
| 3.0L | |||
| Between Terminals "A" & "D" | 3000-6000 | ||
| Between Terminals "B" & "D" | |||
| Closed Throttle | About 1000 Or Less | ||
| Wide Open Throttle | 3000-6000 | ||
TP SENSOR ADJUSTMENT
| Condition (1) | Continuity Between Terminals "C" & "D" | |||
|---|---|---|---|---|
| 3.0L | ||||
| .020" (.5 mm) | Yes | |||
| .028" (.7 mm) | No | |||
|
||||
