Code 10: (Intake Air THERMOSENSOR)

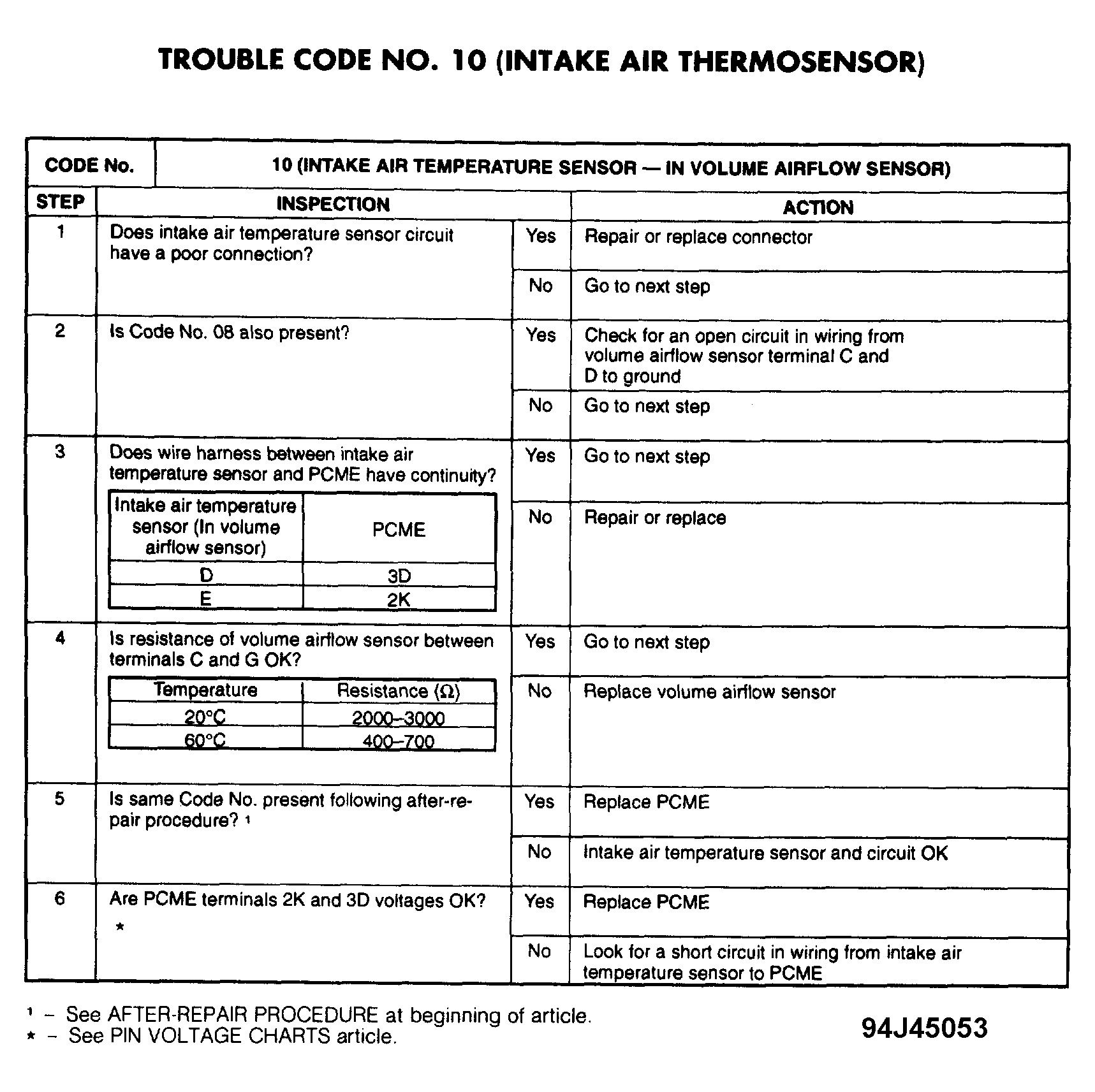

Fig 1: Trouble Code No. 10 Diagnostic Chart (Intake Air Thermosensor)
G94J45053Courtesy of MAZDA MOTORS CORP.

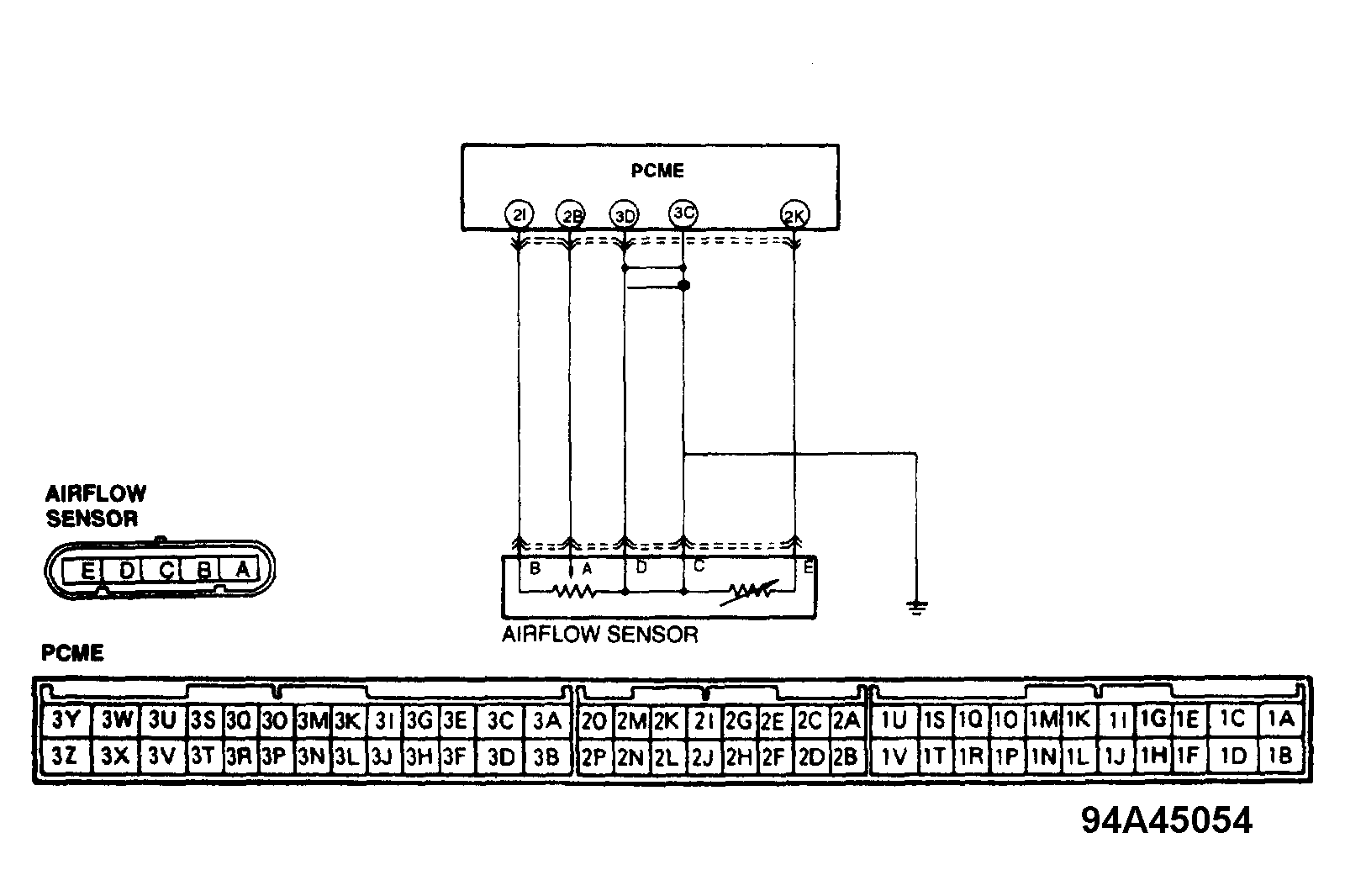

Fig 2: Trouble Code No. 10 Circuit Diagram
G94A45054Courtesy of MAZDA MOTORS CORP.
