Code 16: (EGR Position Sensor)

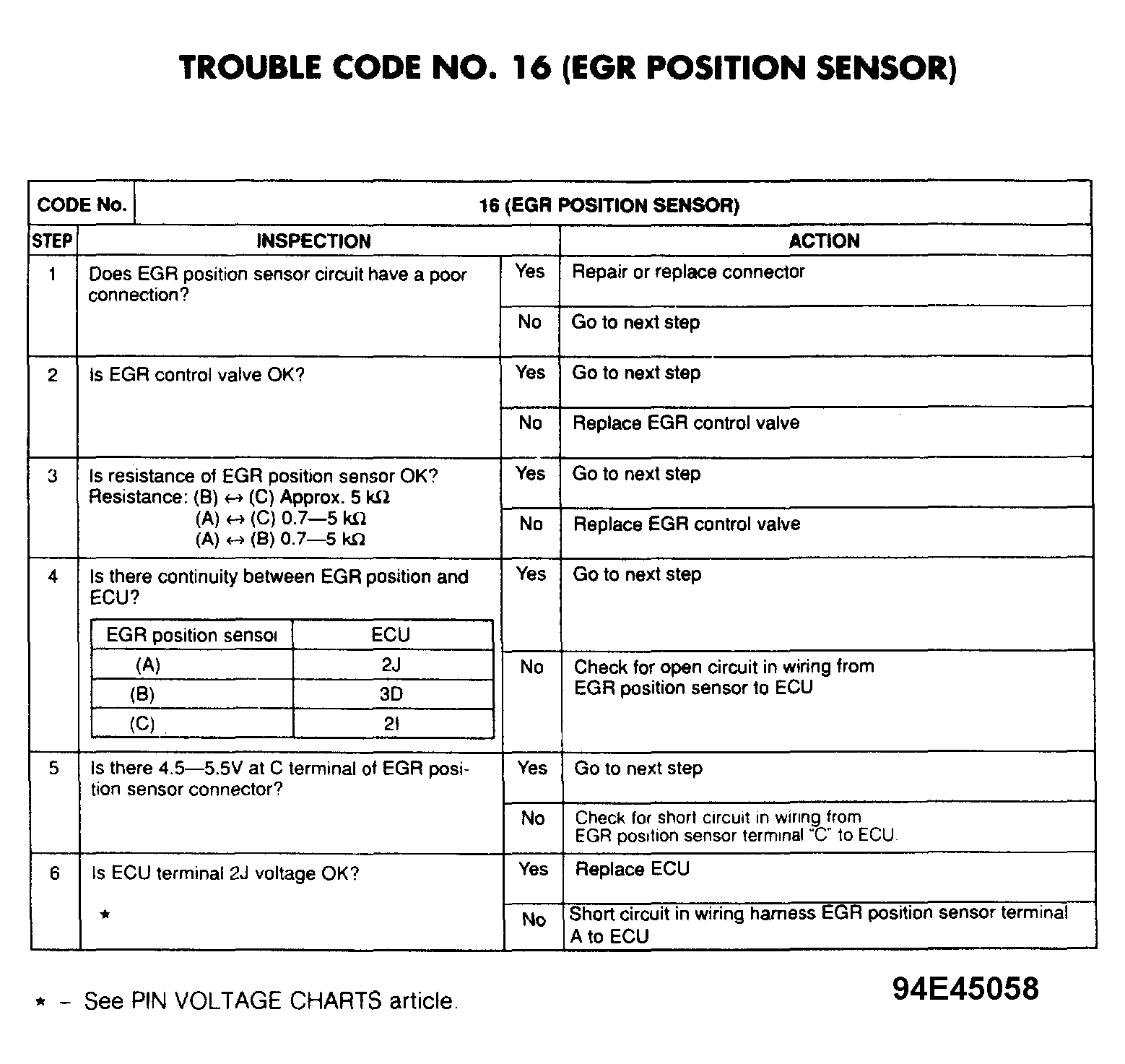

Fig 1: Trouble Code No. 16 Diagnostic Chart (EGR Position Sensor )
G94E45058Courtesy of MAZDA MOTORS CORP.

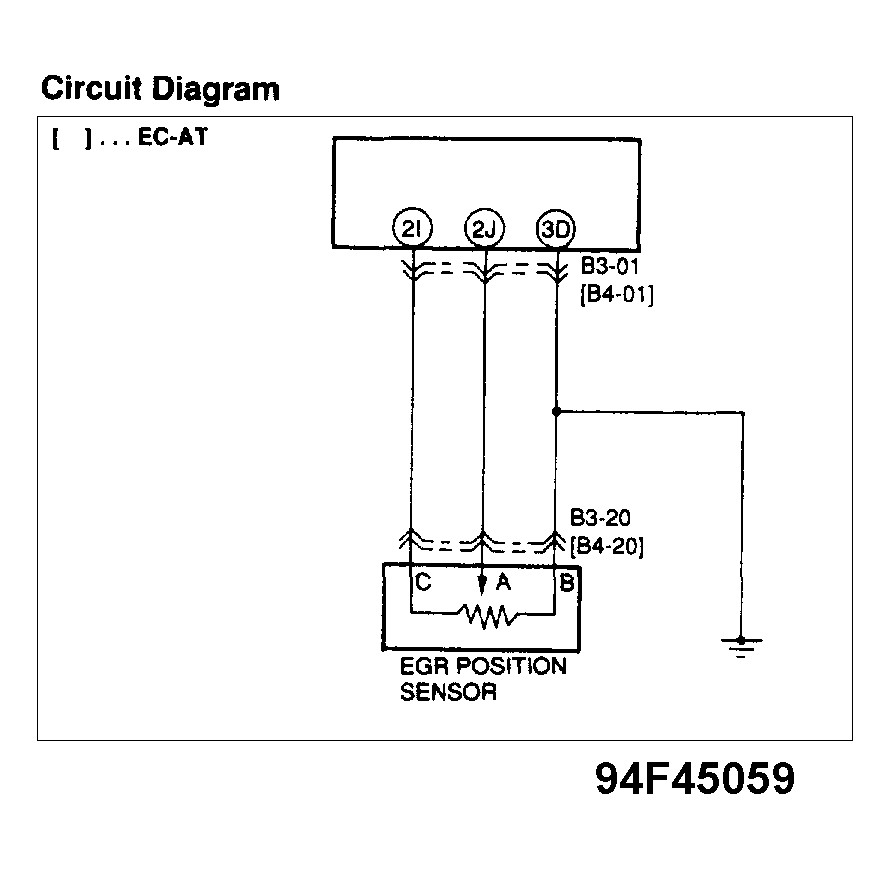

Fig 2: Trouble Code No. 16 Circuit Diagram
G94F45059Courtesy of MAZDA MOTORS CORP.
