Code 2: (Ne2 Signal - Distributor)

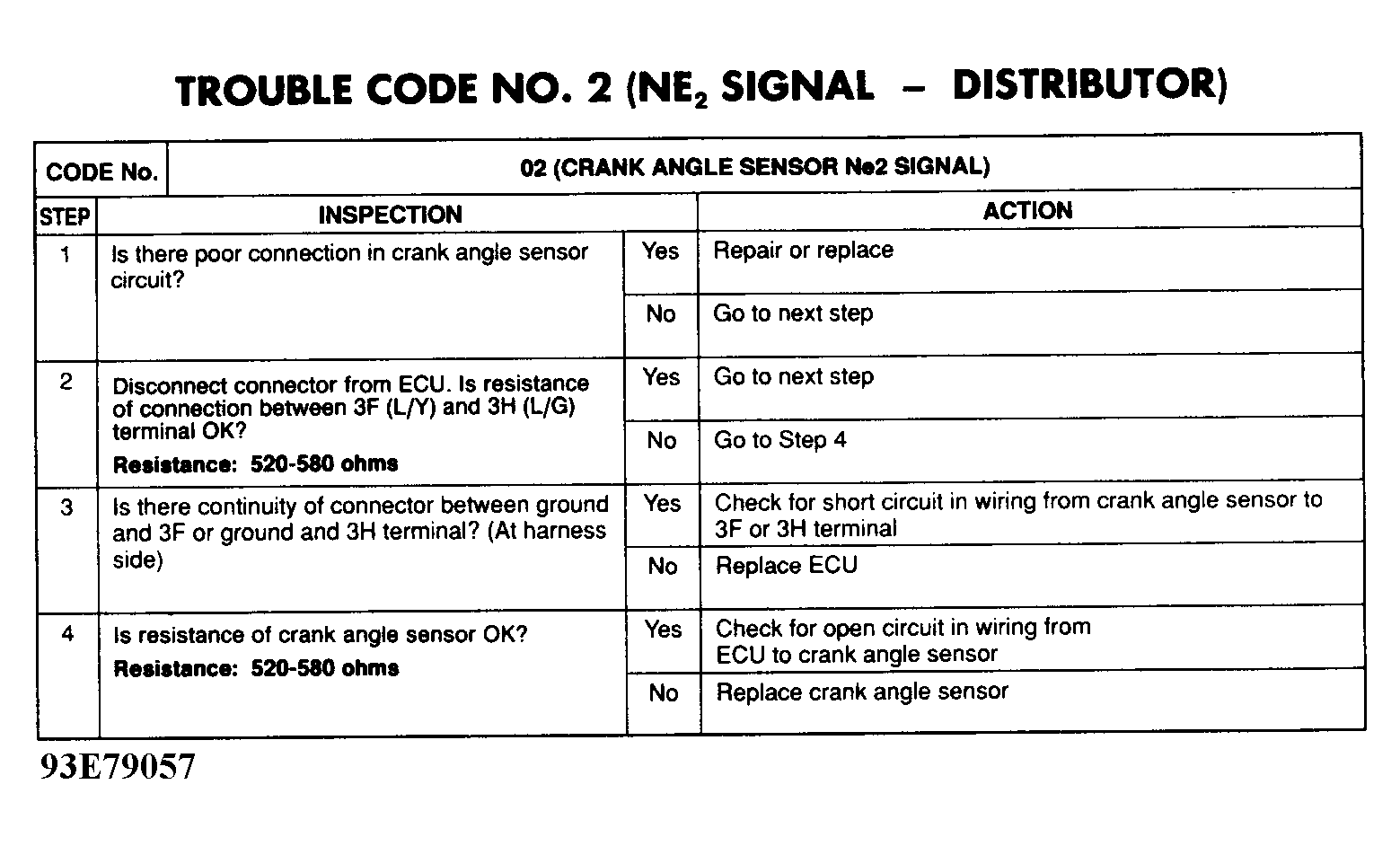

Fig 1: Trouble Code No. 2 Diagnostic Chart (NE2 Signal - Distributor)
Courtesy of MAZDA MOTORS CORP.

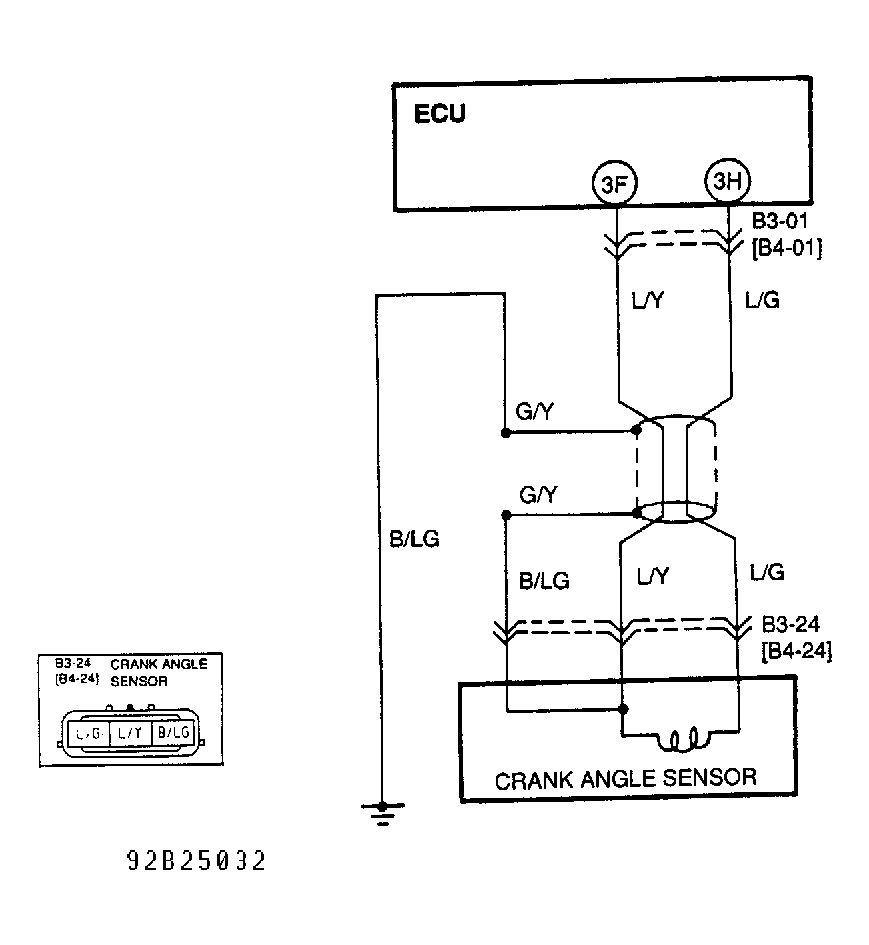

Fig 2: Trouble Code No. 2 Circuit Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
