Code 3: (G Signal - Distributor)

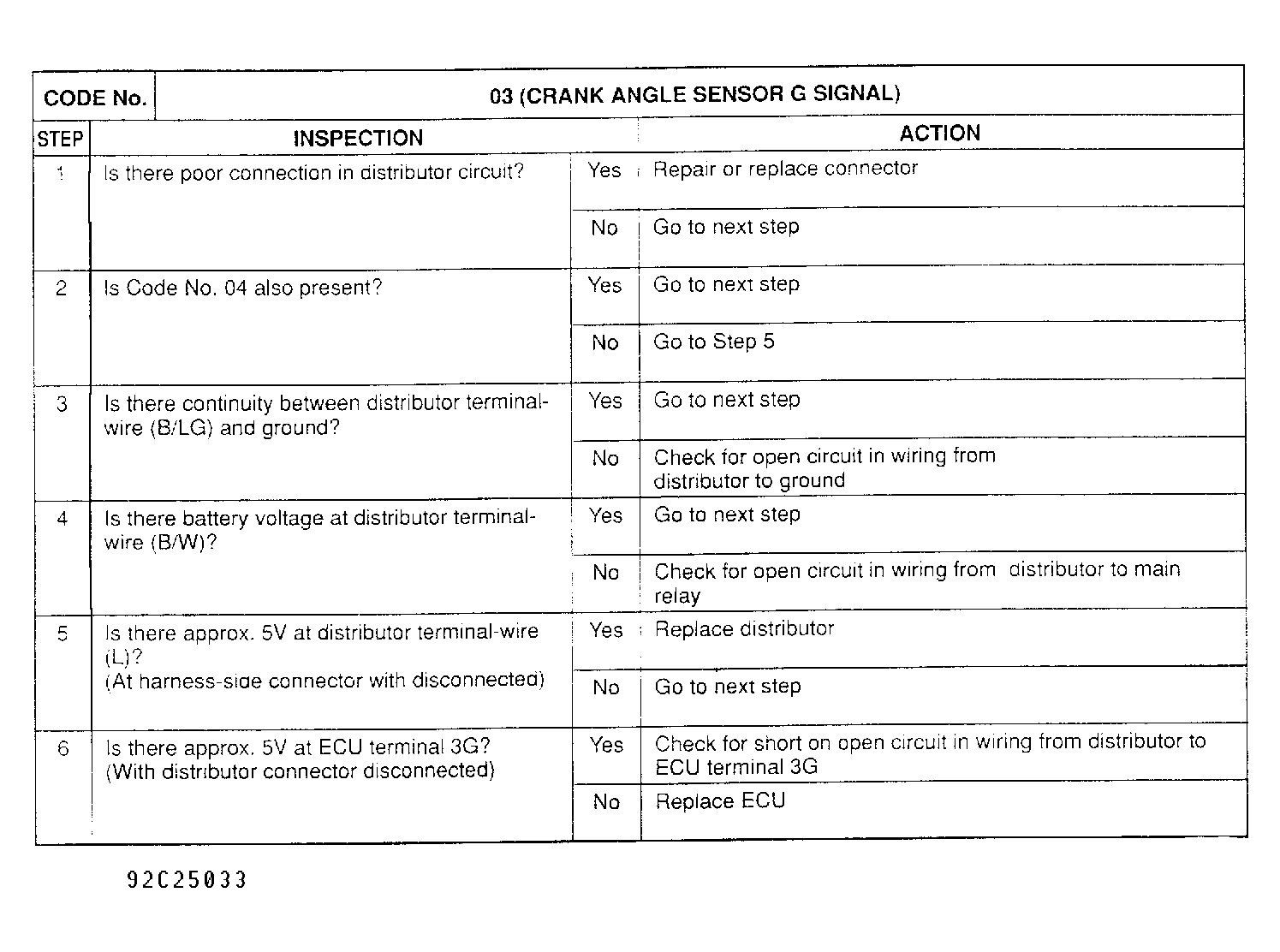

Fig 1: Trouble Code No. 3 Diagnostic Chart (G Signal - Distributor )
G92C25033Courtesy of MAZDA MOTORS CORP.
Fig 2: Trouble Code No. 3 Circuit Diagram
G92E25035Courtesy of MAZDA MOTORS CORP.
