Code 4: (Ne1 Signal - Distributor)

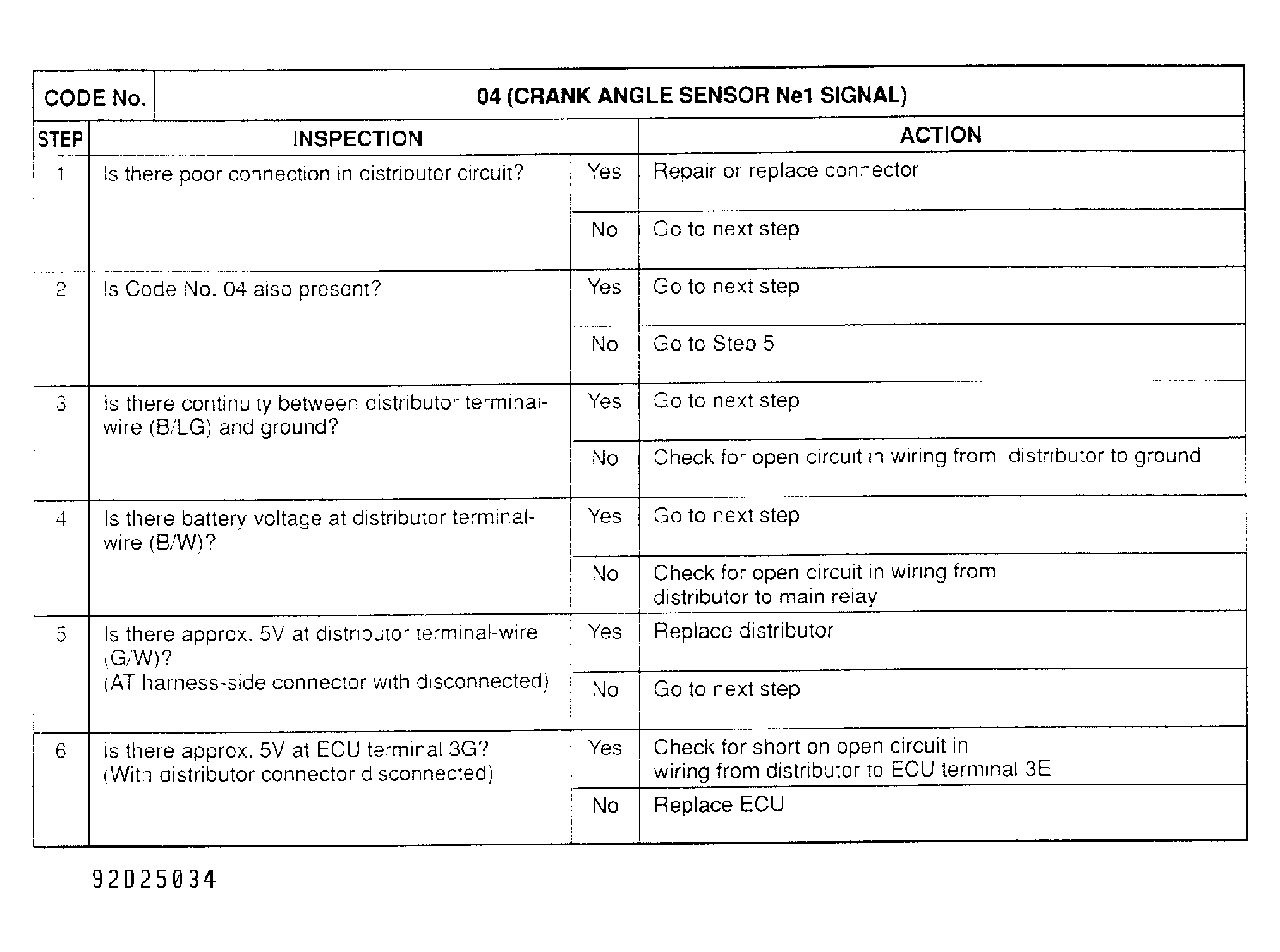

Fig 1: Trouble Code No. 4 Diagnostic Chart (NE1 Signal - Distributor)
G92D25034Courtesy of MAZDA MOTORS CORP.

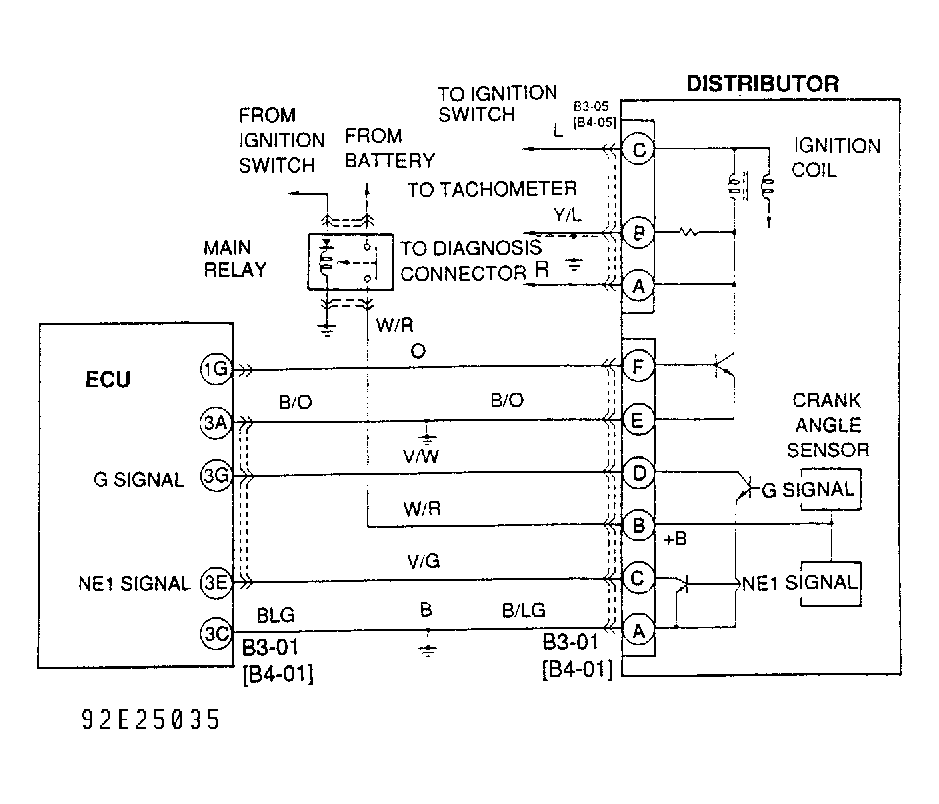

Fig 2: Trouble Code No. 4 Circuit Diagram
G92E25035Courtesy of MAZDA MOTORS CORP.
