Code 5: (Knock Sensor)

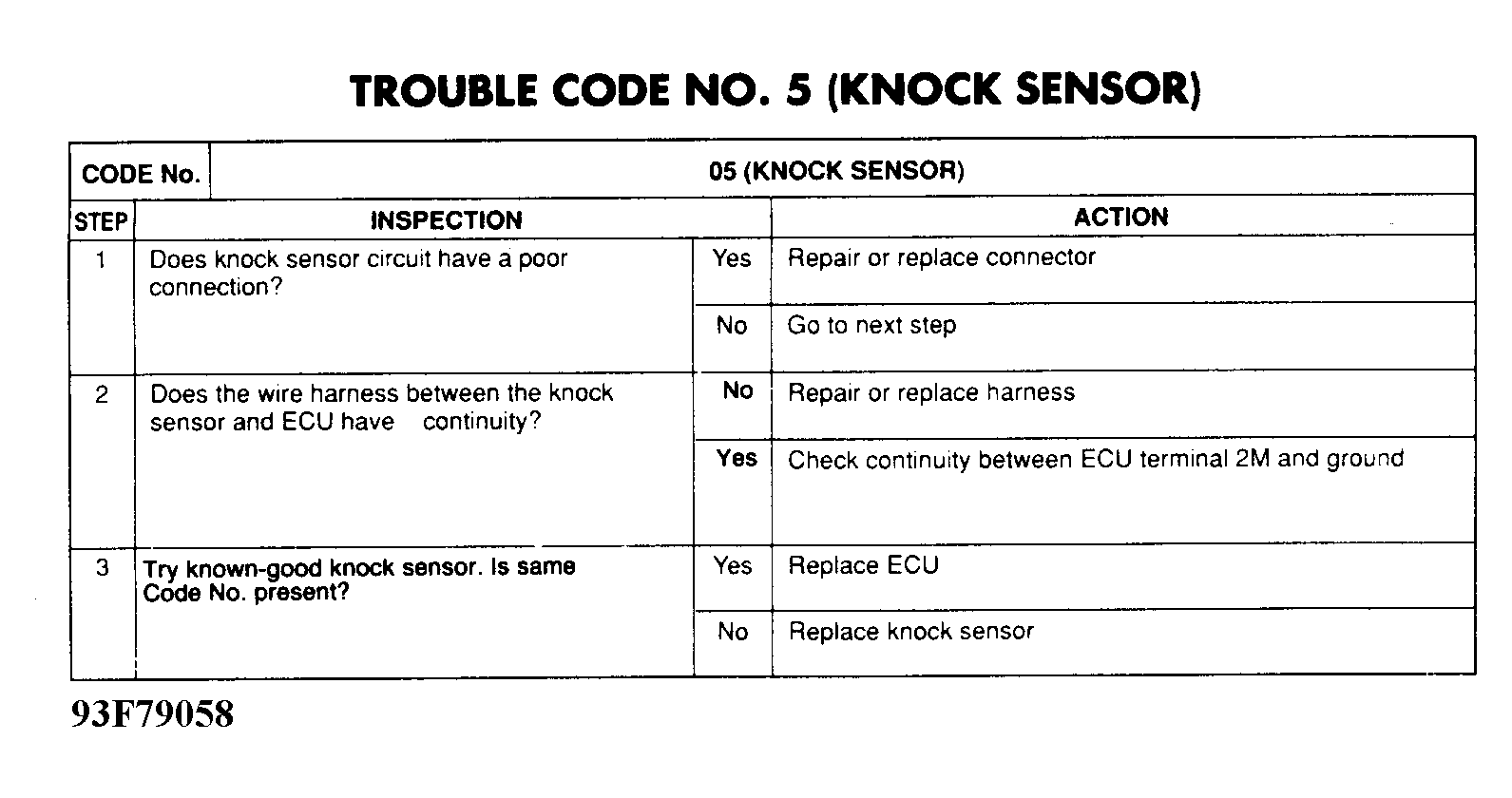

Fig 1: Trouble Code No. 5 Diagnostic Chart (Knock Sensor
G93F79058Courtesy of MAZDA MOTORS CORP.
Fig 2: Trouble Code No. 5 Circuit Diagram
G92G25037Courtesy of MAZDA MOTORS CORP.
