Code 8: (Airflow Meter)

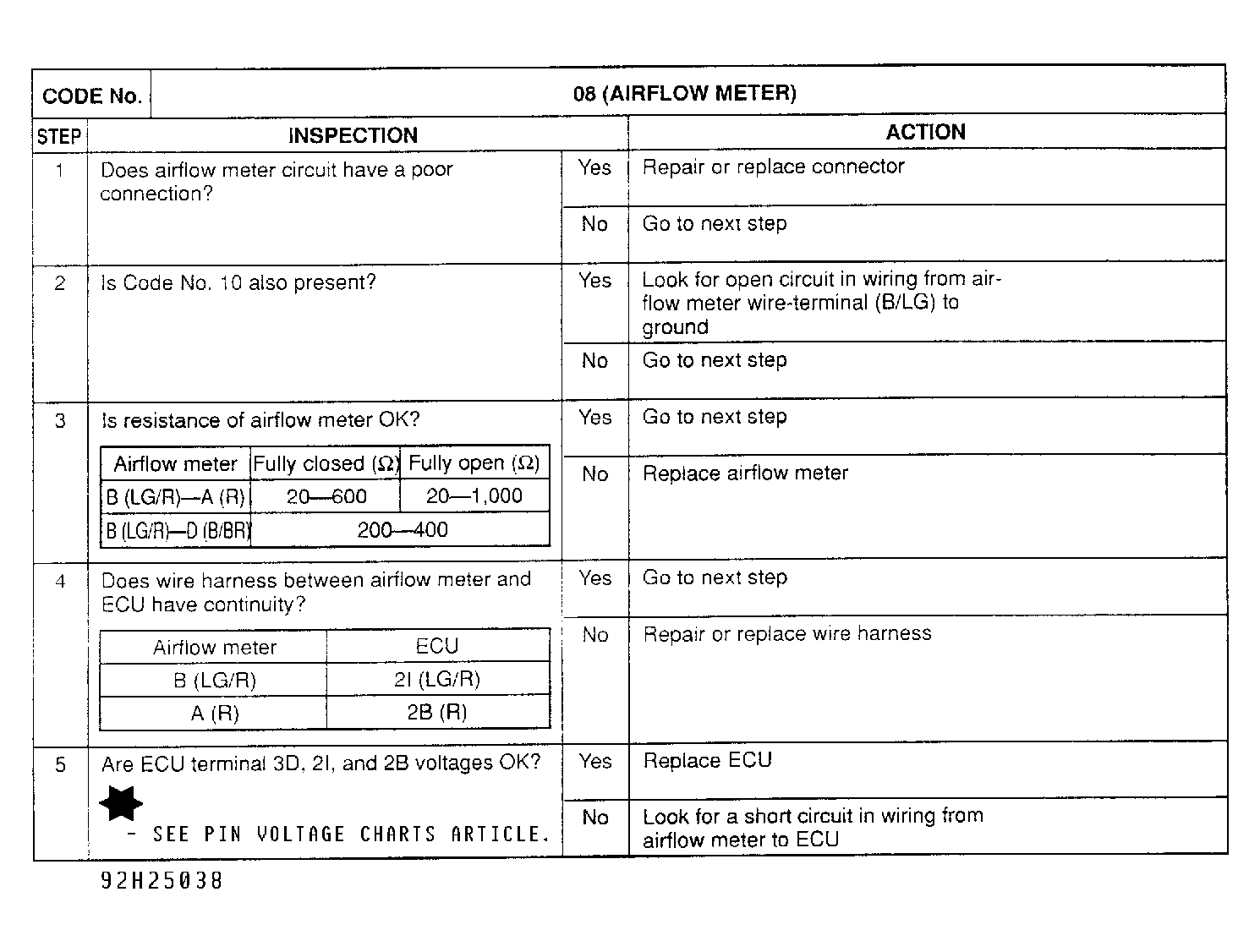

Fig 1: Trouble Code No. 8 Diagnostic Chart (Airflow Meter)
G92H25038Courtesy of MAZDA MOTORS CORP.

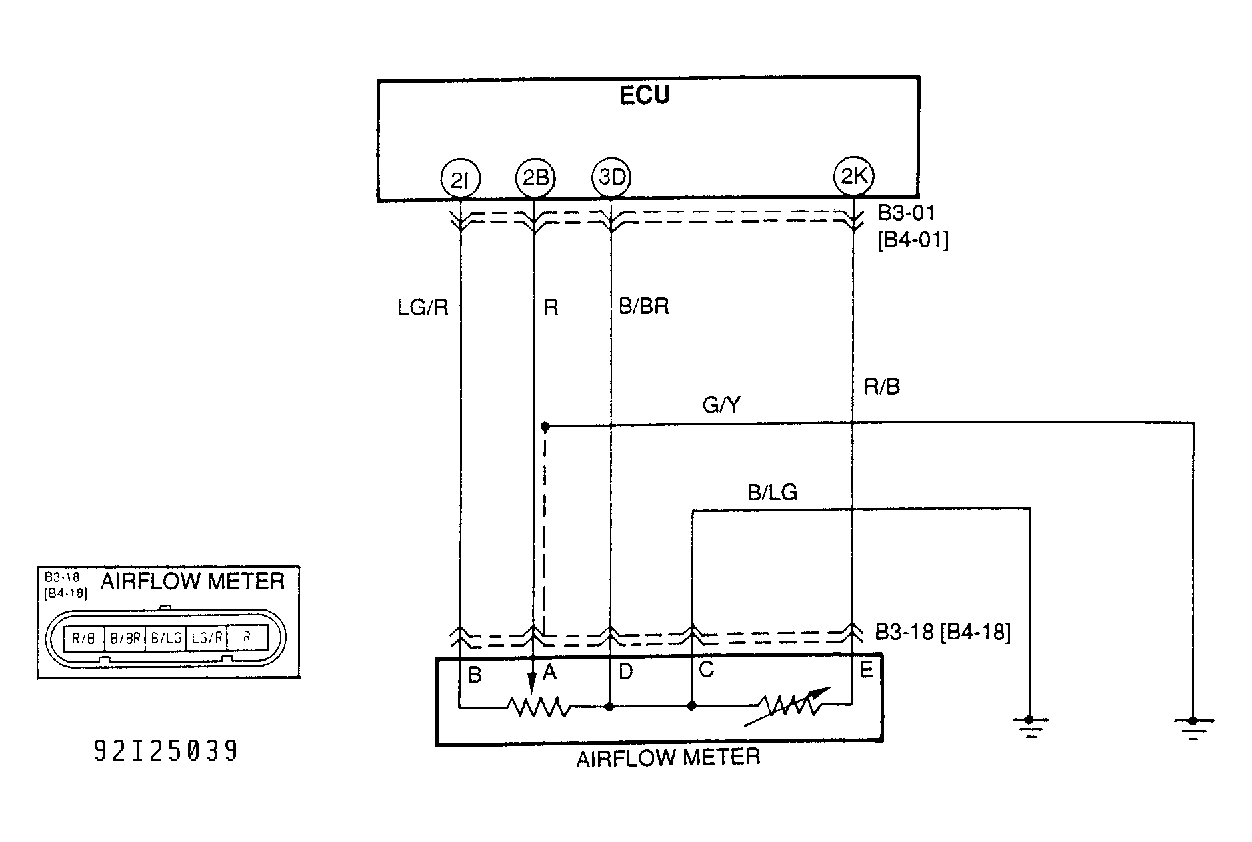

Fig 2: Trouble Code No. 8 Circuit Diagram
G92I25039Courtesy of MAZDA MOTORS CORP.
