Code 9: (Coolant THERMOSENSOR)

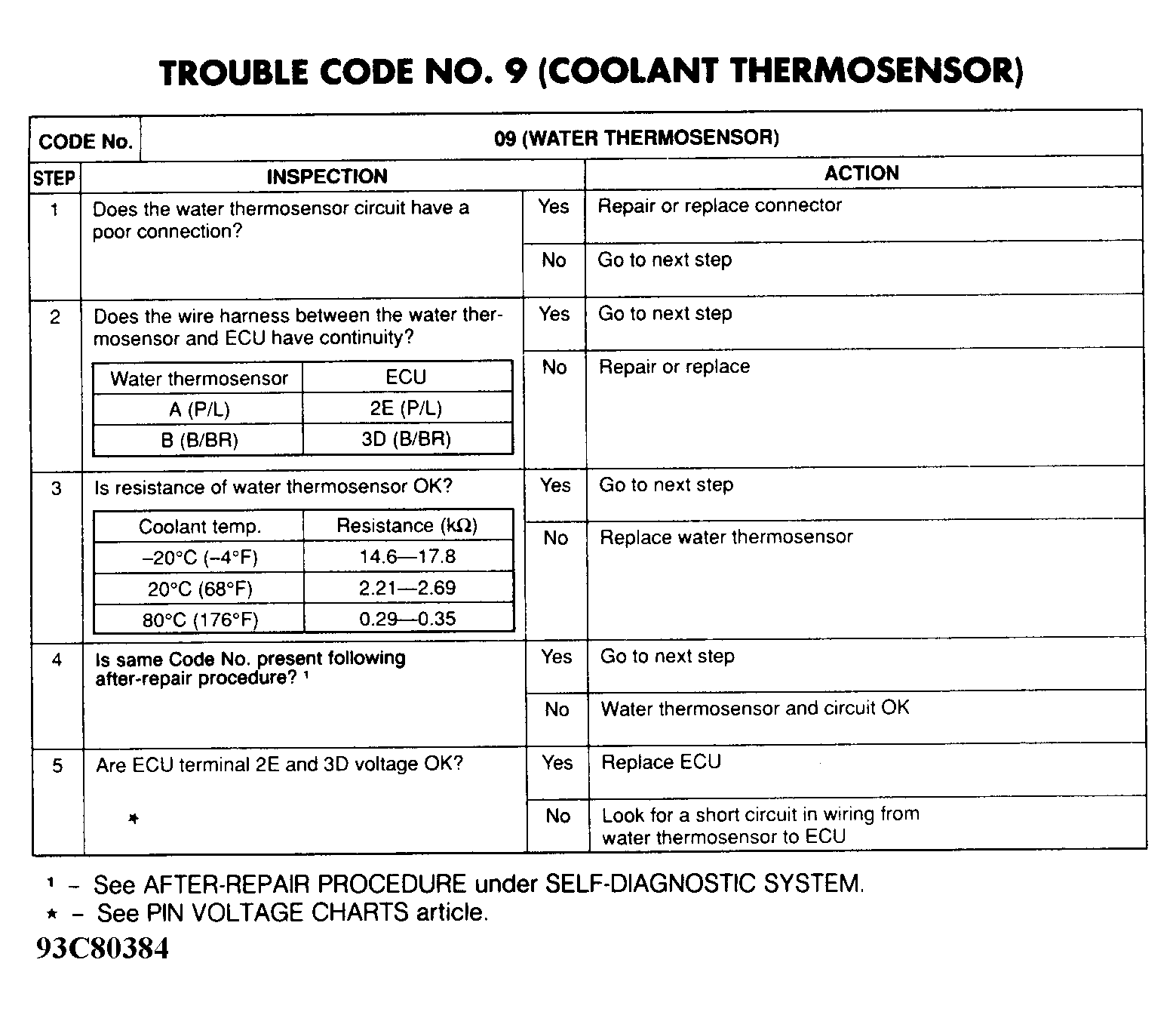

Fig 1: Trouble Code No. 9 Diagnostic Chart (Coolant Thermosensor )
G93C80384Courtesy of MAZDA MOTORS CORP.

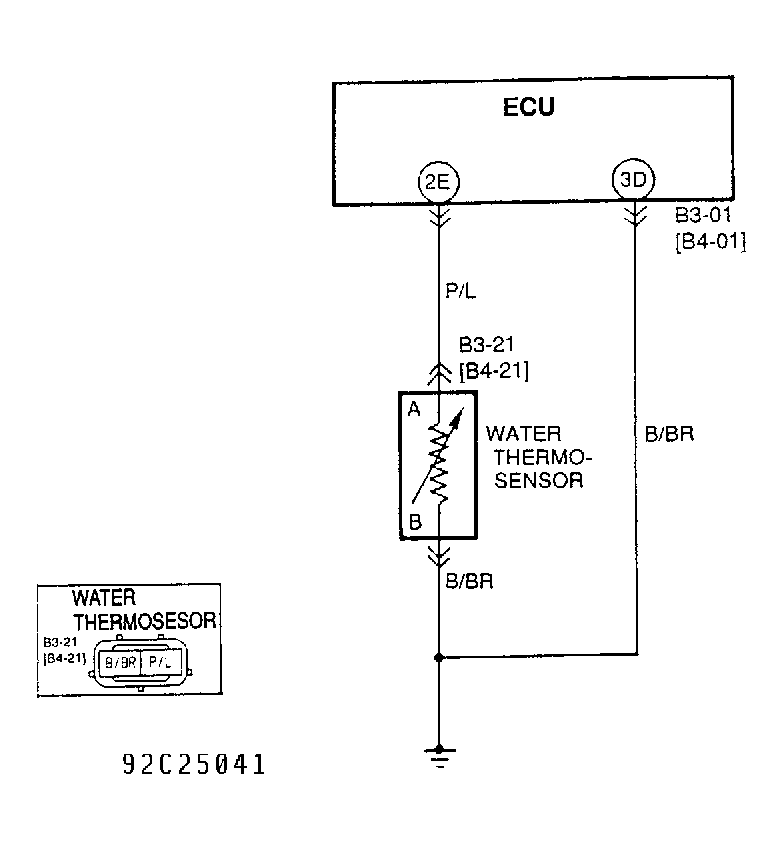

Fig 2: Fig. 16: Trouble Code No. 9 Circuit Diagram)
G92C25041Courtesy of MAZDA MOTORS CORP.
