Service Point Locations

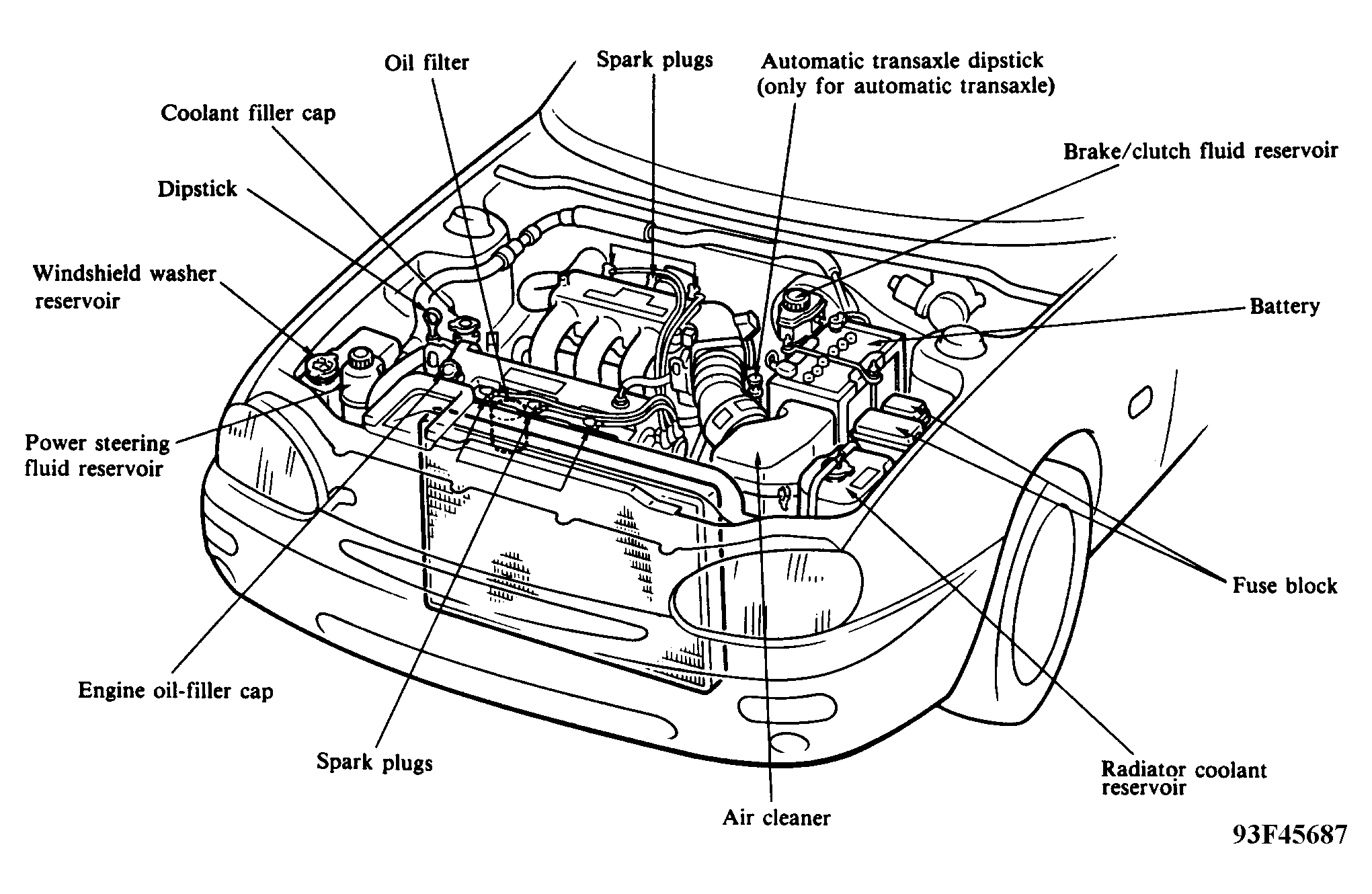

Fig 1: Service Point Locations (1.6L 4-Cylinder Engine)
Courtesy of MAZDA MOTOR OF AMERICA, INC.

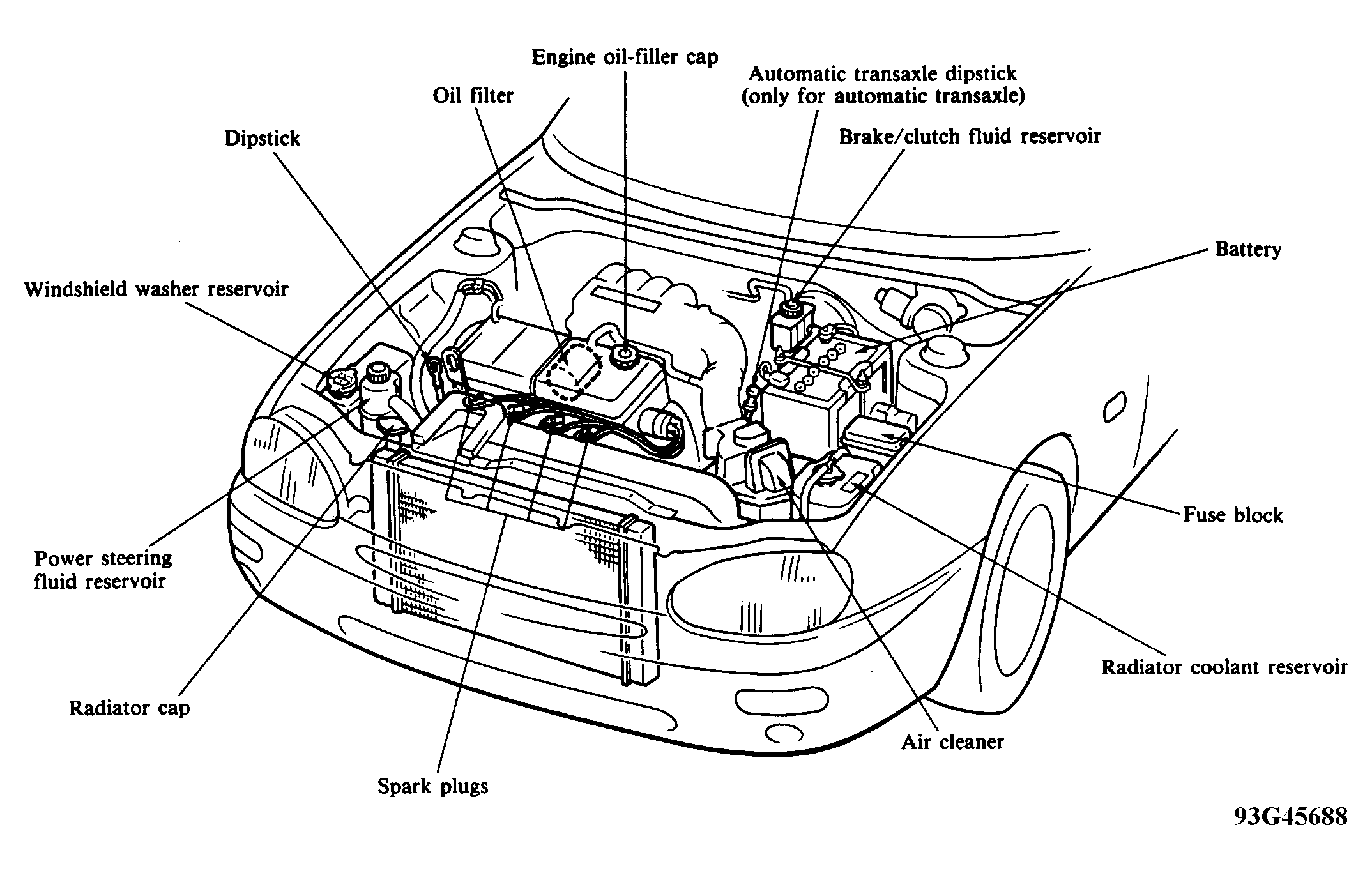

Fig 2: Service Point Locations (1.8L V6 Engine)
Courtesy of MAZDA MOTOR OF AMERICA, INC.
Courtesy of MAZDA MOTOR OF AMERICA, INC.
Courtesy of MAZDA MOTOR OF AMERICA, INC.
