Code 25: (PRC Solenoid Valve)

PRC SOLENOID VALVE WIRE COLORS

Terminal Wire Color
"A" WHT/RED
"B" YEL/GRN

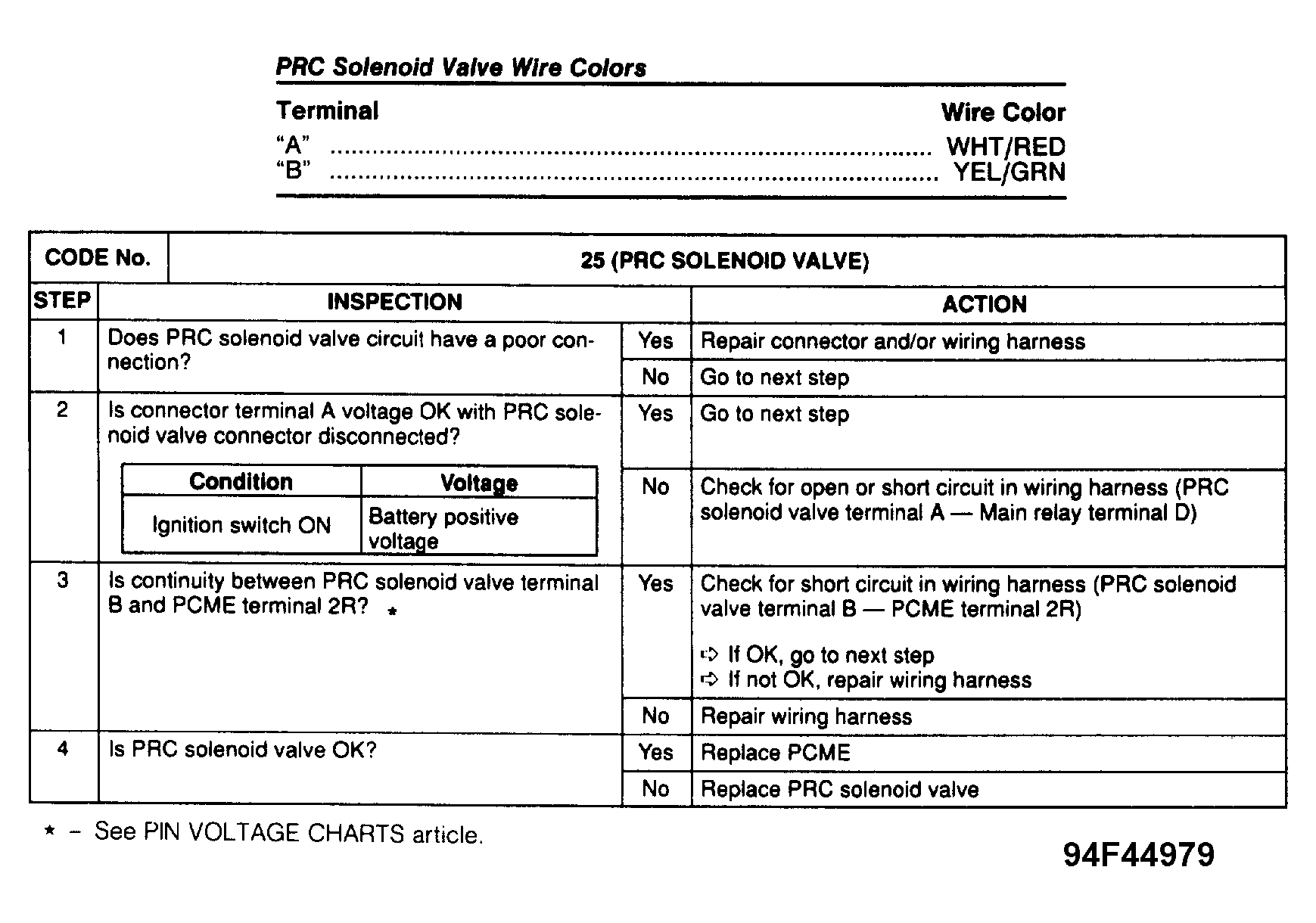

Fig 1: Trouble Code No. 25 Diagnostic Chart (PRC Solenoid Valve)
G94F44979Courtesy of MAZDA MOTORS CORP.
