Code 29: (EGR Vent Solenoid Valve)

EGR VENT SOLENOID VALVE WIRE COLORS

Terminal Wire Color
"A" WHT/RED
"B" YEL/BLK

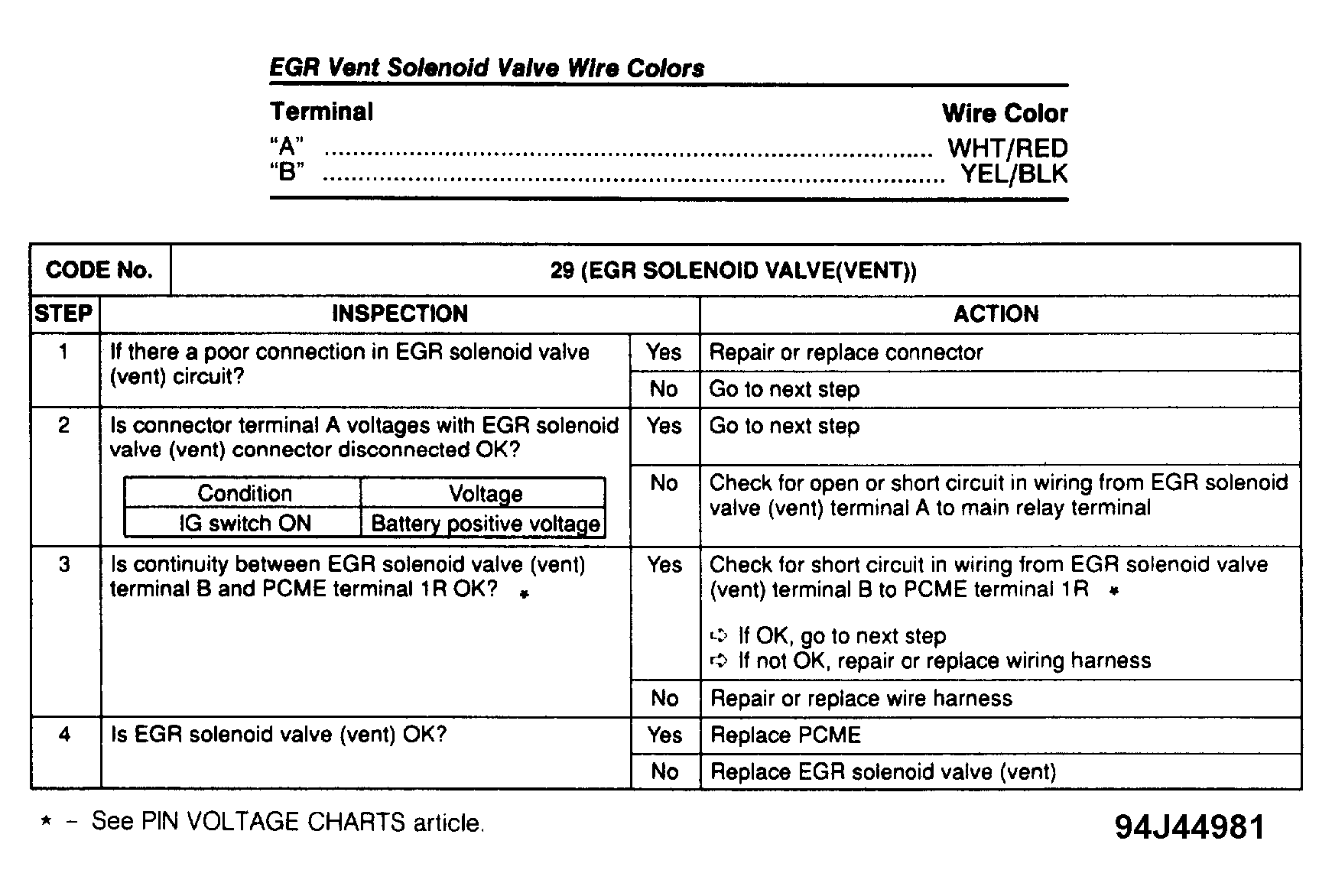

Fig 1: Trouble Code No. 29 (EGR Vent Solenoid Valve)
G94J44981Courtesy of MAZDA MOTORS CORP.
