Code 8: (Airflow Meter)

AIRFLOW METER WIRE COLORS

Terminal Wire Color
"E" BLK/LT. GRN
"B" RED

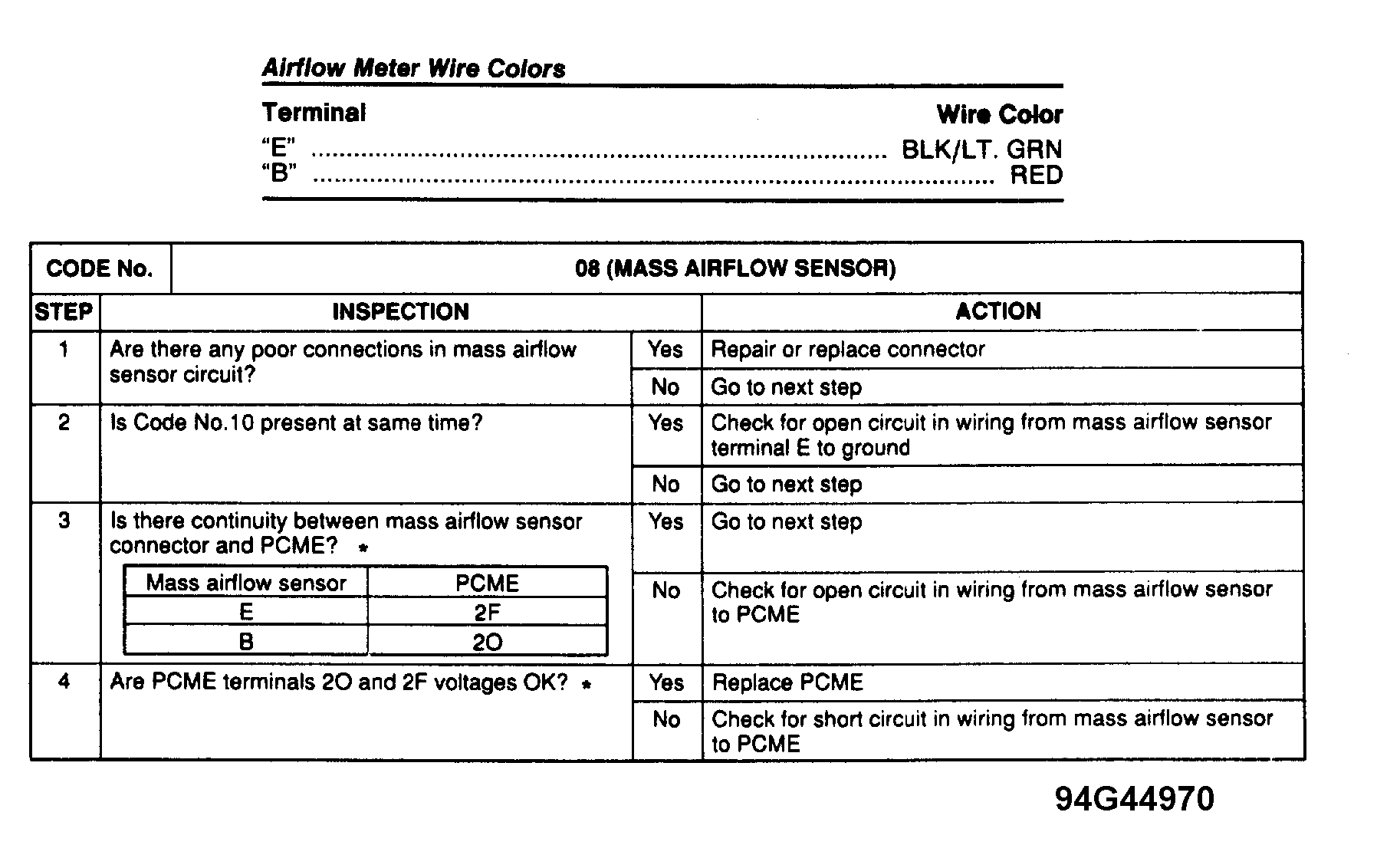

Fig 1: Trouble Code No. 8 Diagnostic Chart (Airflow Meter)
G94G44970Courtesy of MAZDA MOTORS CORP.
