EGR Position Sensor (2.0L)

Disconnect EGR position sensor electrical connector. Check resistance across terminals. See Fig 1 . At room temperature, resistance should be 182-336 ohms. If resistance is not as specified, replace EGR control valve.

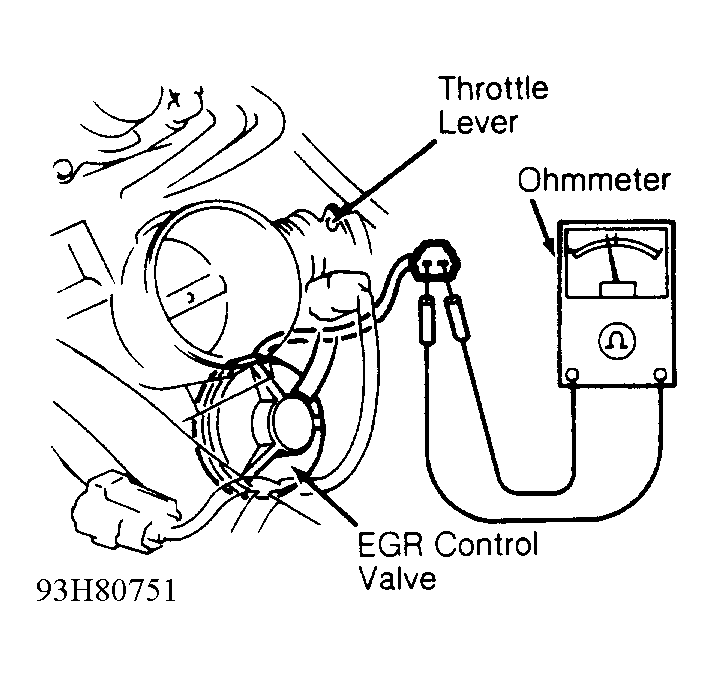

Fig 1: Testing EGR Position Sensor (2.0L)

Courtesy of MAZDA MOTORS CORP.
