Code 03: (SGC Signal - Distributor)

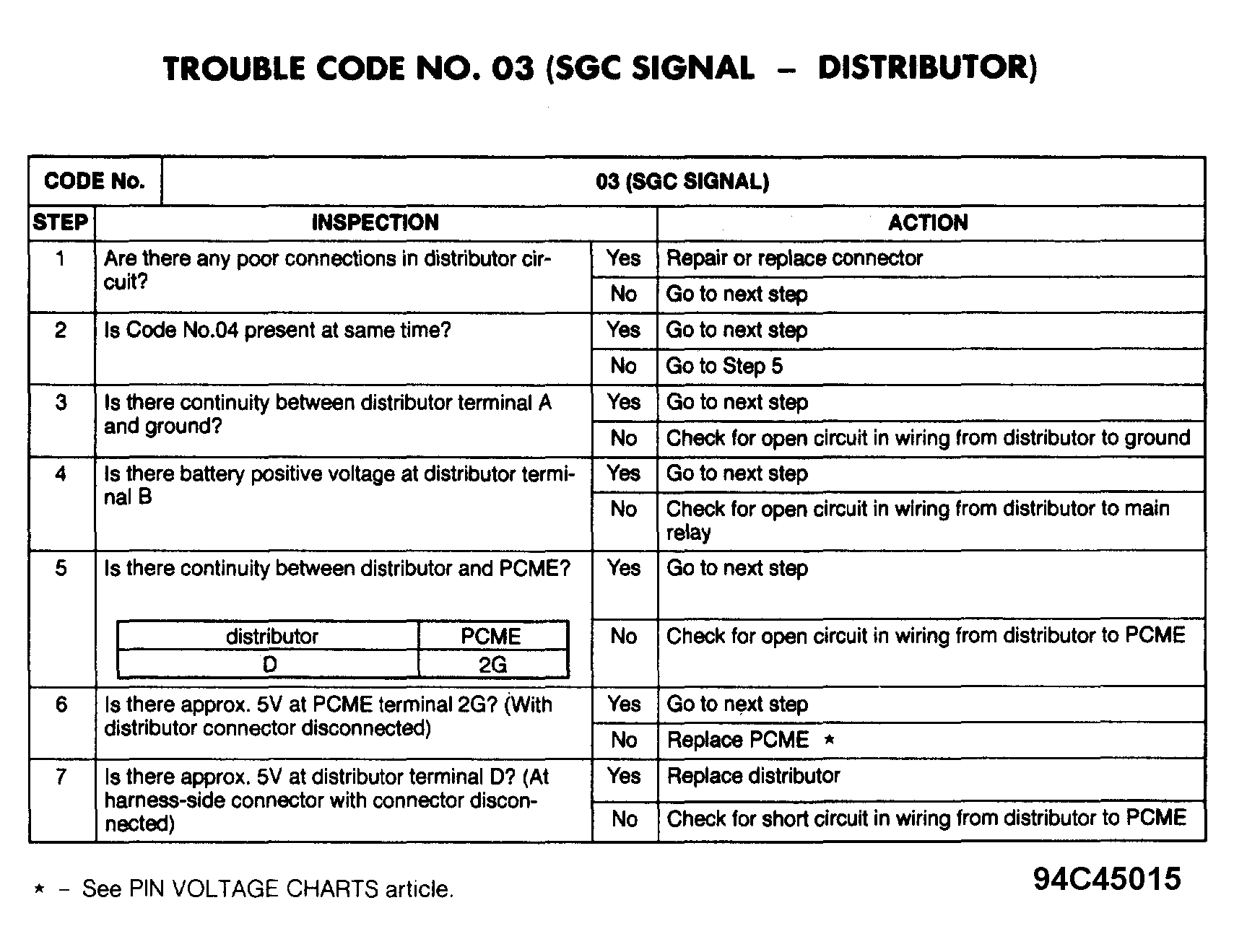

Fig 1: Trouble Code No. 03 Diagnostic Chart (SGC Signal - Distributor )
G94C45015Courtesy of MAZDA MOTORS CORP.
