Code 08: (Airflow Meter)

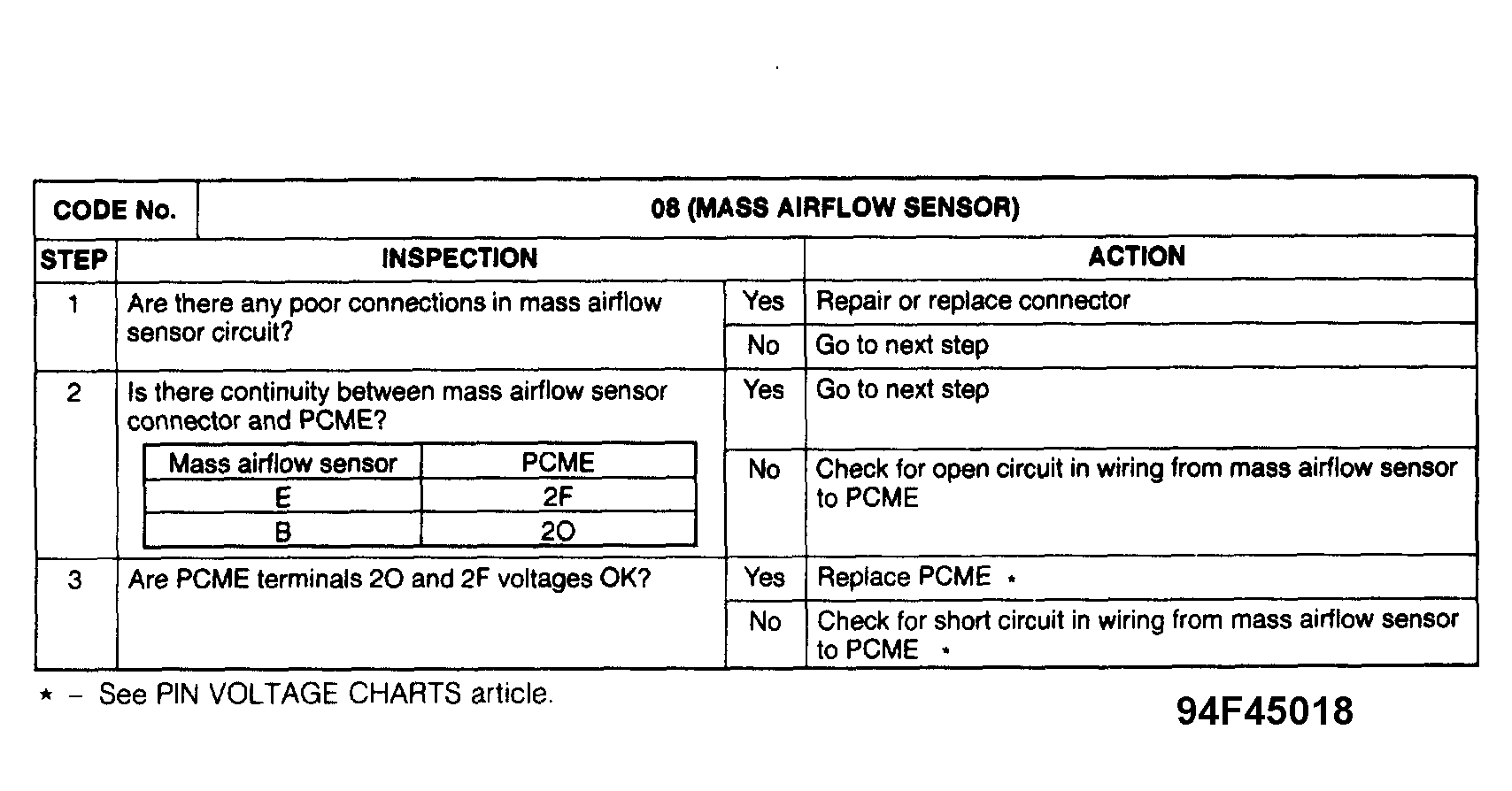

Fig 1: Trouble Code No. 08 Diagnostic Chart (Airflow Meter - Protege)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
