Code 10: (Intake Air THERMOSENSOR)

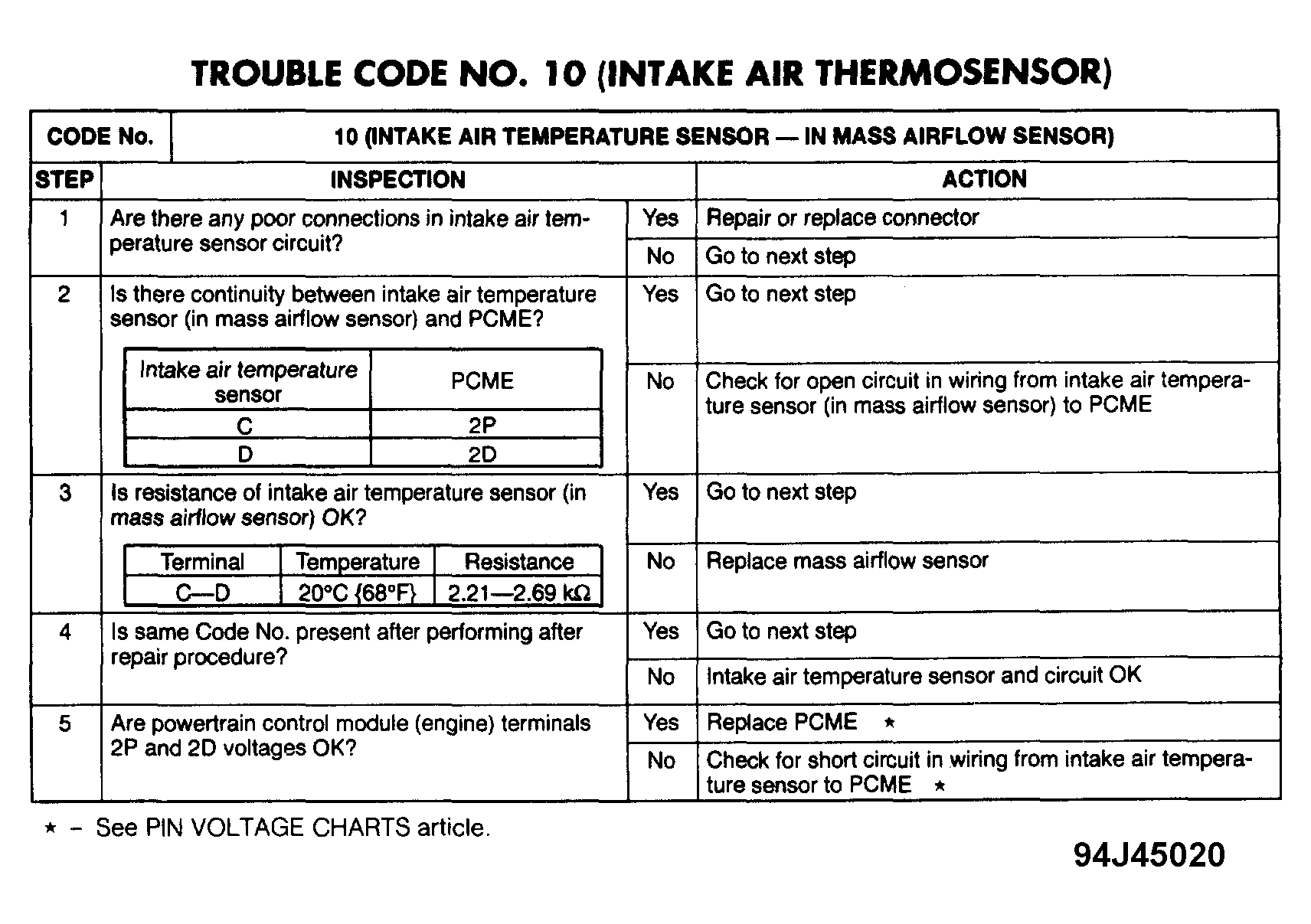

Fig 1: Trouble Code No. 10 Diagnostic Chart (Intake Air Thermosensor - Protege)
G94J45020Courtesy of MAZDA MOTORS CORP.
