Code 12: (Throttle Sensor)

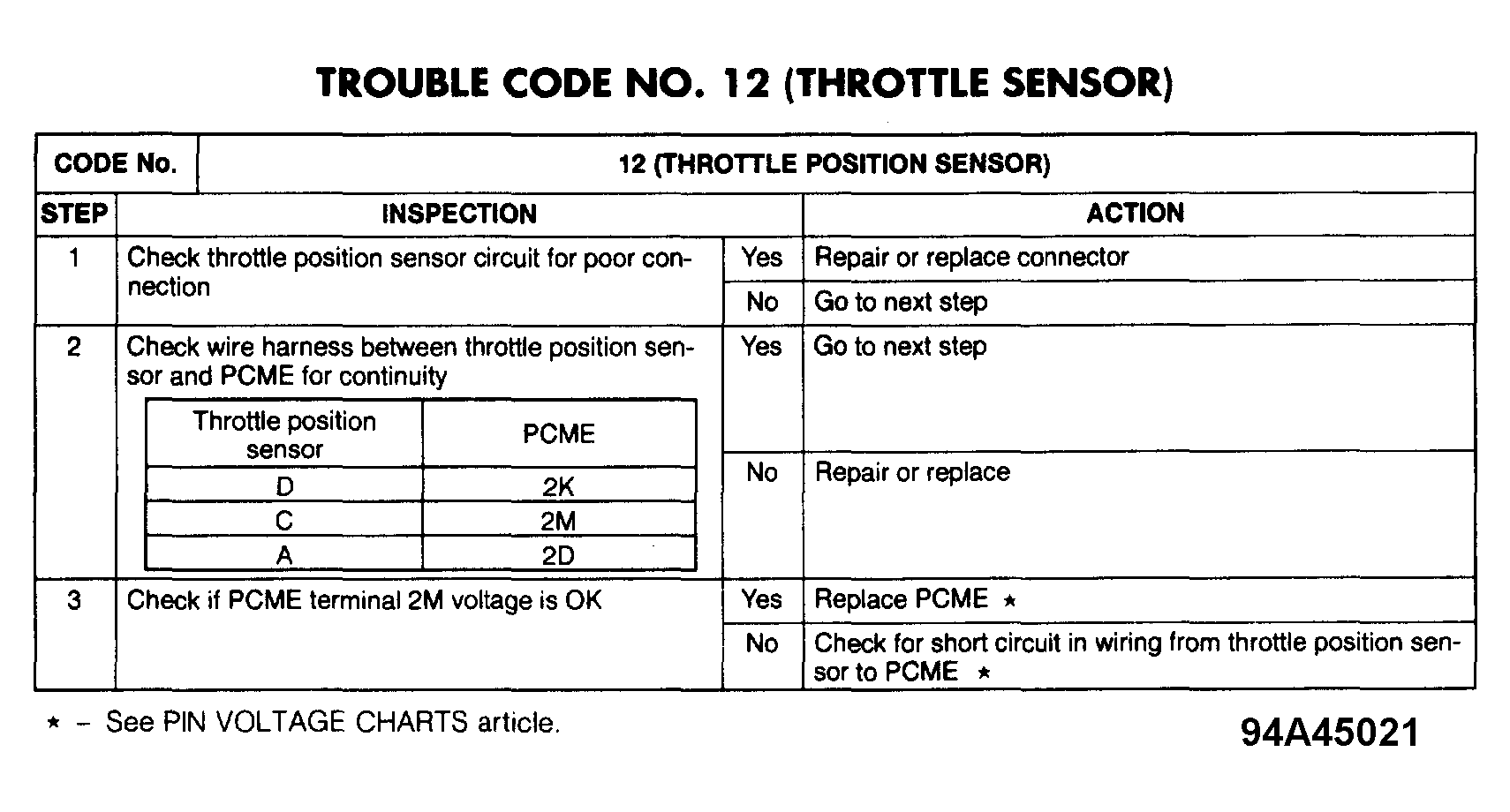

Fig 1: Trouble Code No. 12 Diagnostic Chart (Throttle Sensor - Protege)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
