Code 16: (EGR Function Sensor)

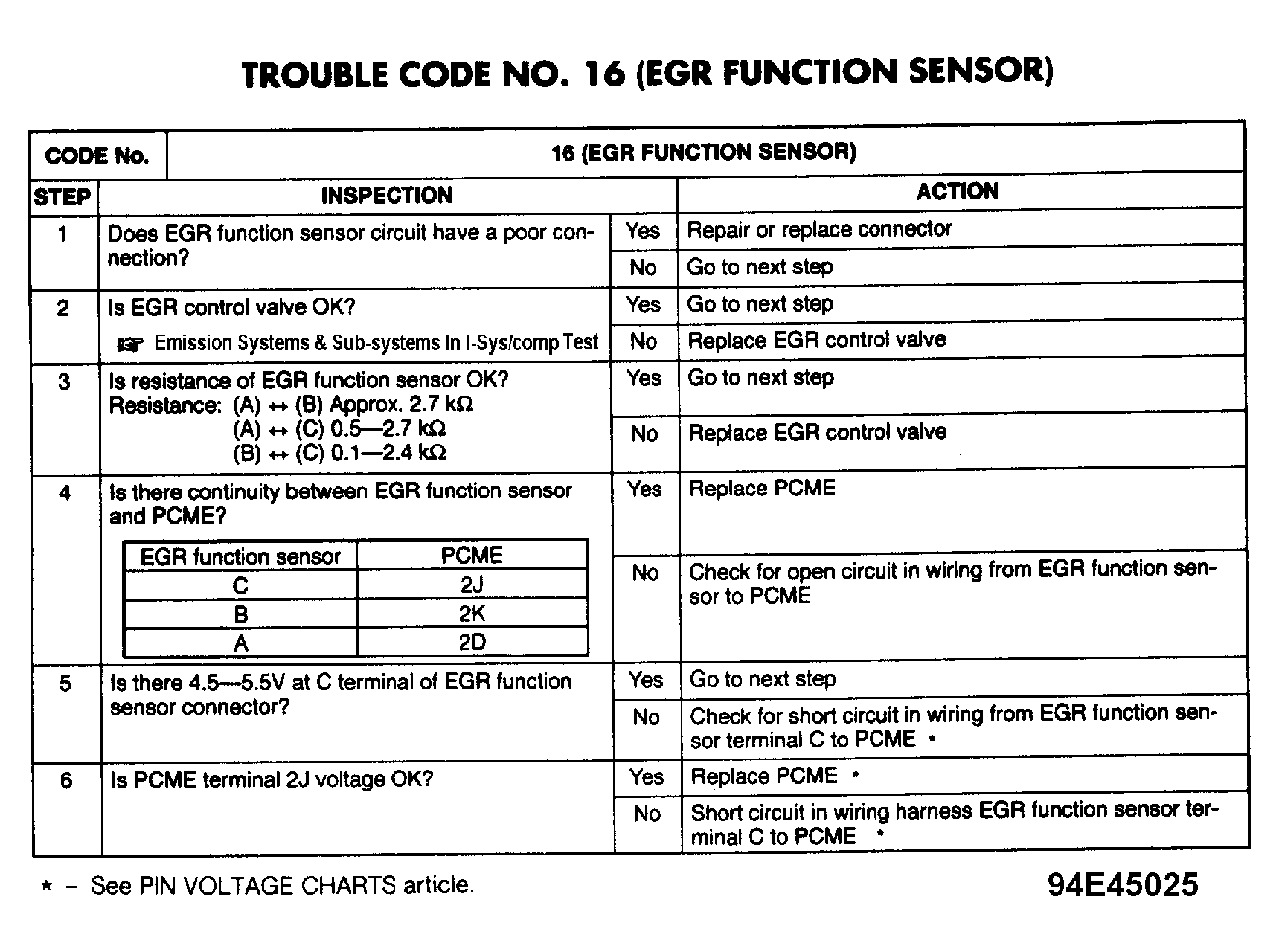

Fig 1: Trouble Code No. 16 Diagnostic Chart (EGR Function Sensor) Ckt. Diagram
G94E45025Courtesy of MAZDA MOTORS CORP.

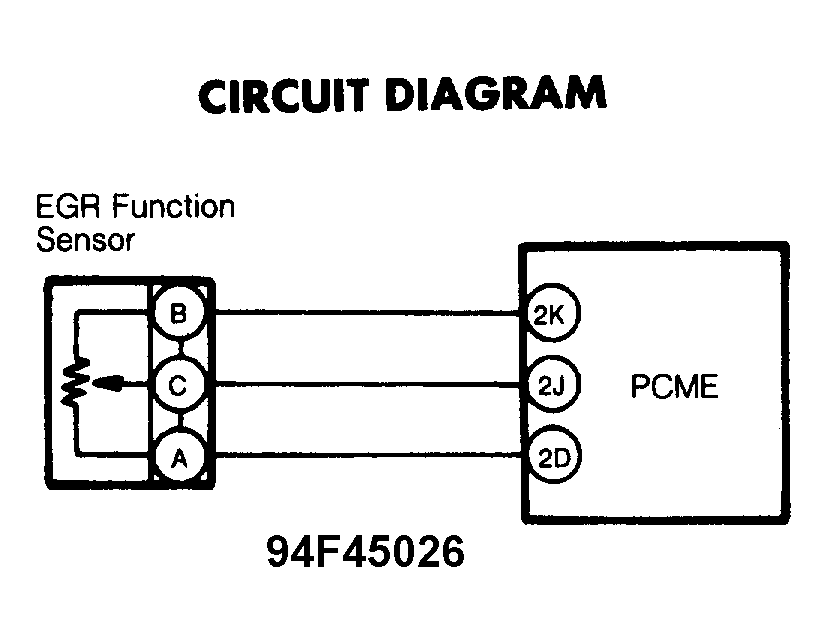

Fig 2: Trouble Code No. 16 Circuit Diagram
G94F45026Courtesy of MAZDA MOTORS CORP.
