Code 25: (Pressure Regulator Solenoid Valve)

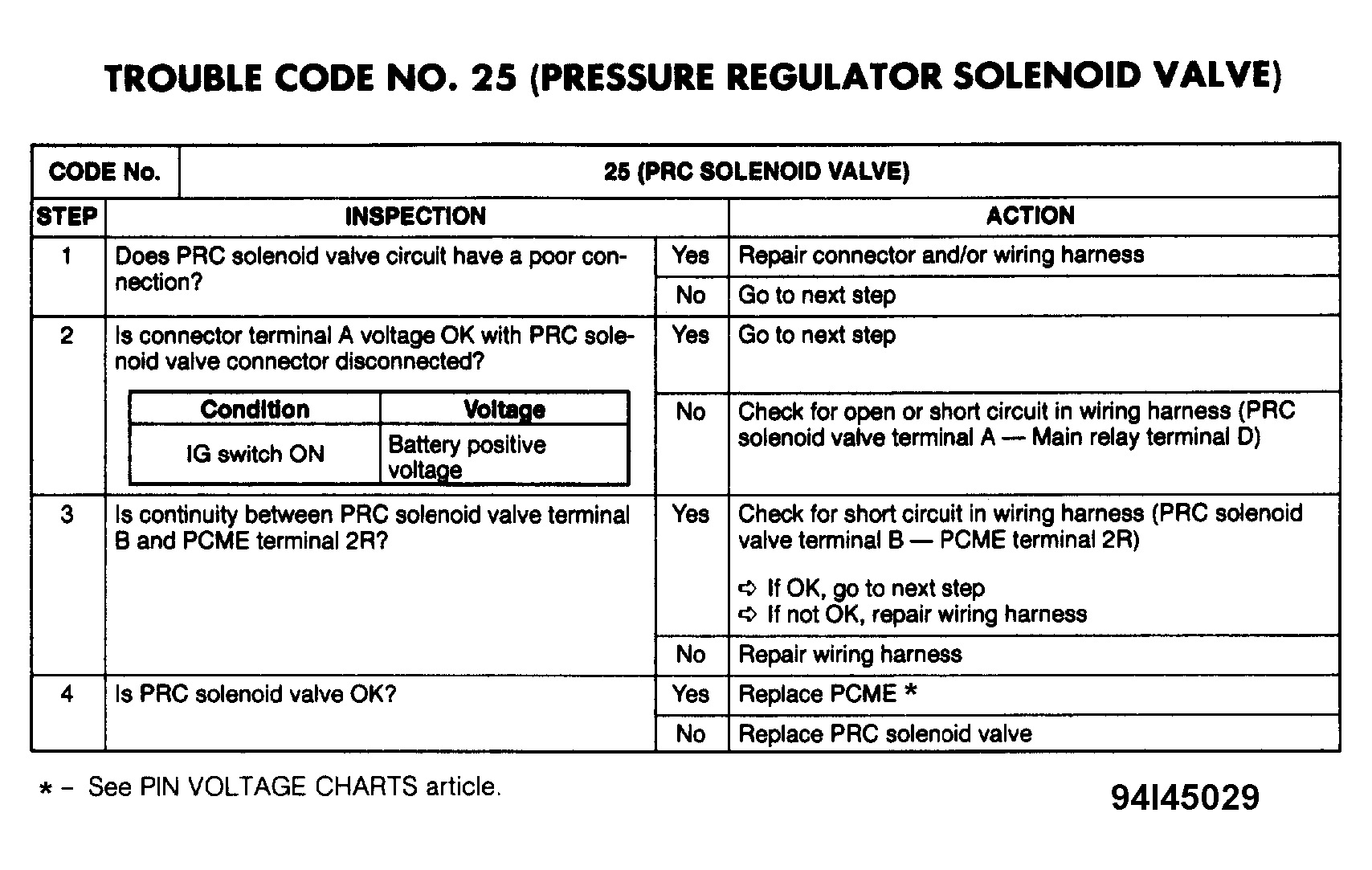

Fig 1: Trouble Code No. 25 Diagnostic Chart (Pressure Regulator Solenoid Valve )
G94I45029Courtesy of MAZDA MOTORS CORP.
