Code 28: (EGR Vacuum Valve Solenoid)

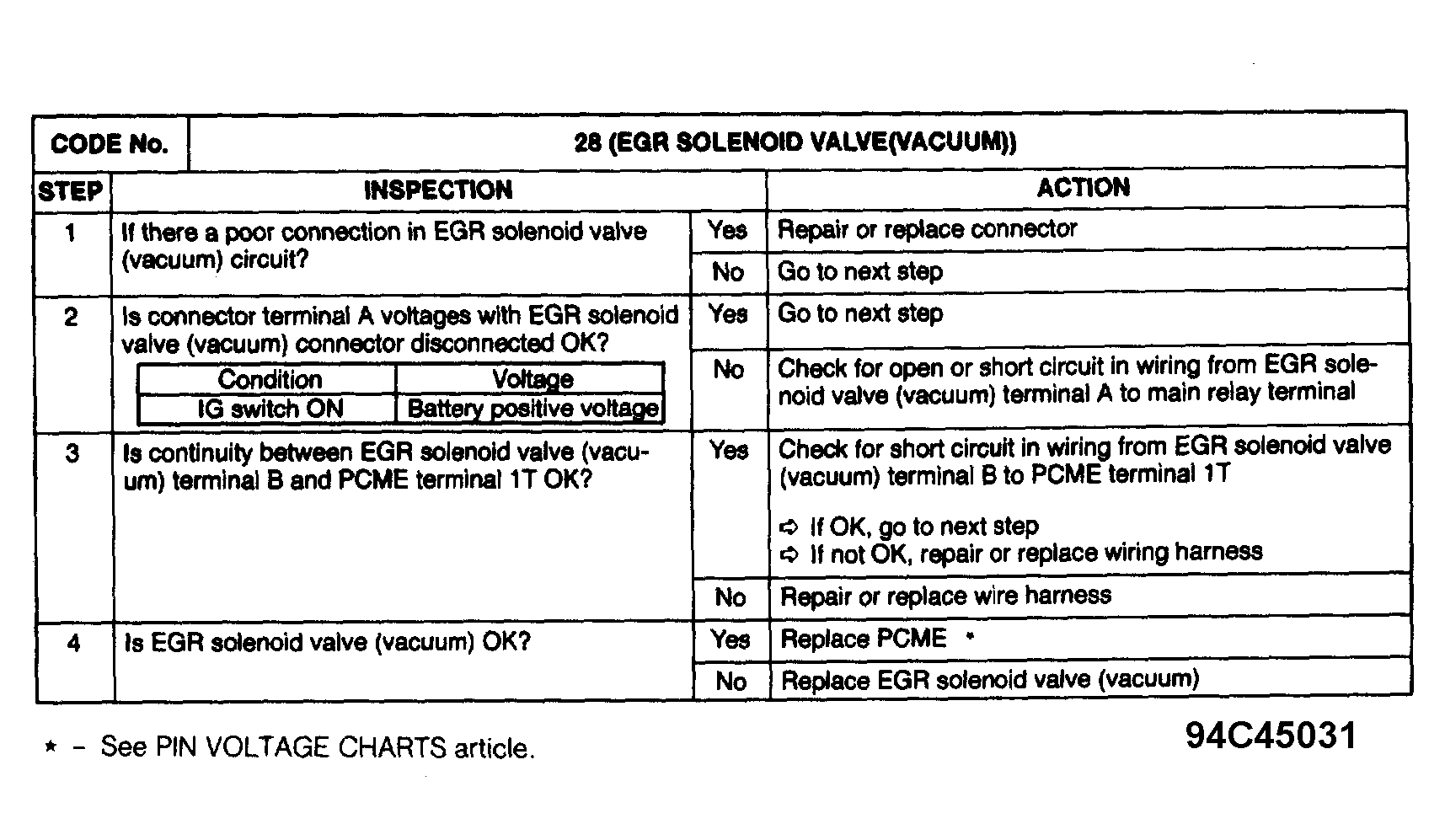

Fig 1: Trouble Code No. 28 Diagnostic Chart (EGR Vacuum Valve Solenoid )
G94C45031Courtesy of MAZDA MOTORS CORP.
