Code 34: (Idle Speed Control)

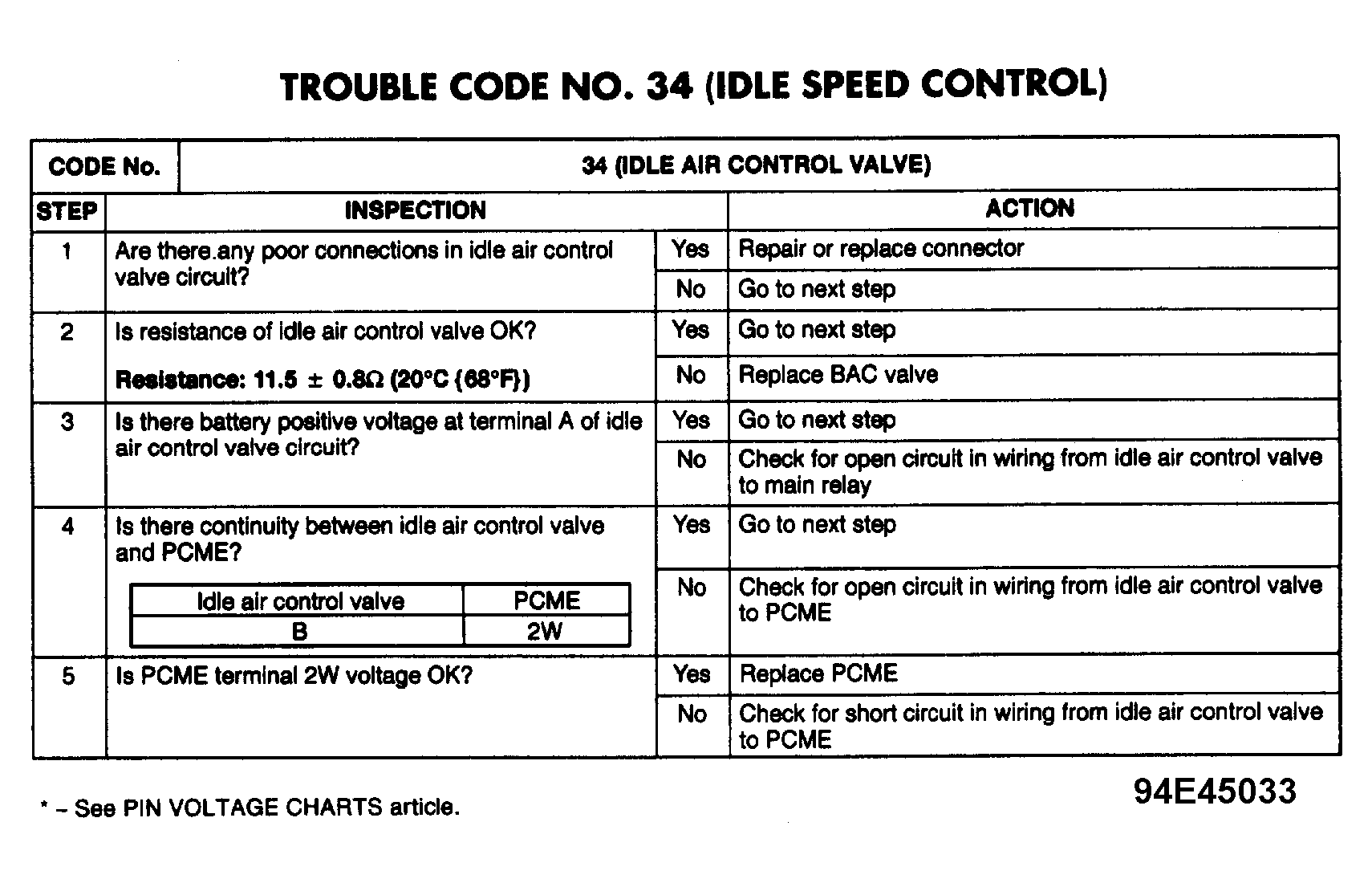

Fig 1: Trouble Code No. 34 Diagnostic Chart (Idle Speed Control)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
