Code 11: (Intake Air THERMOSENSOR)

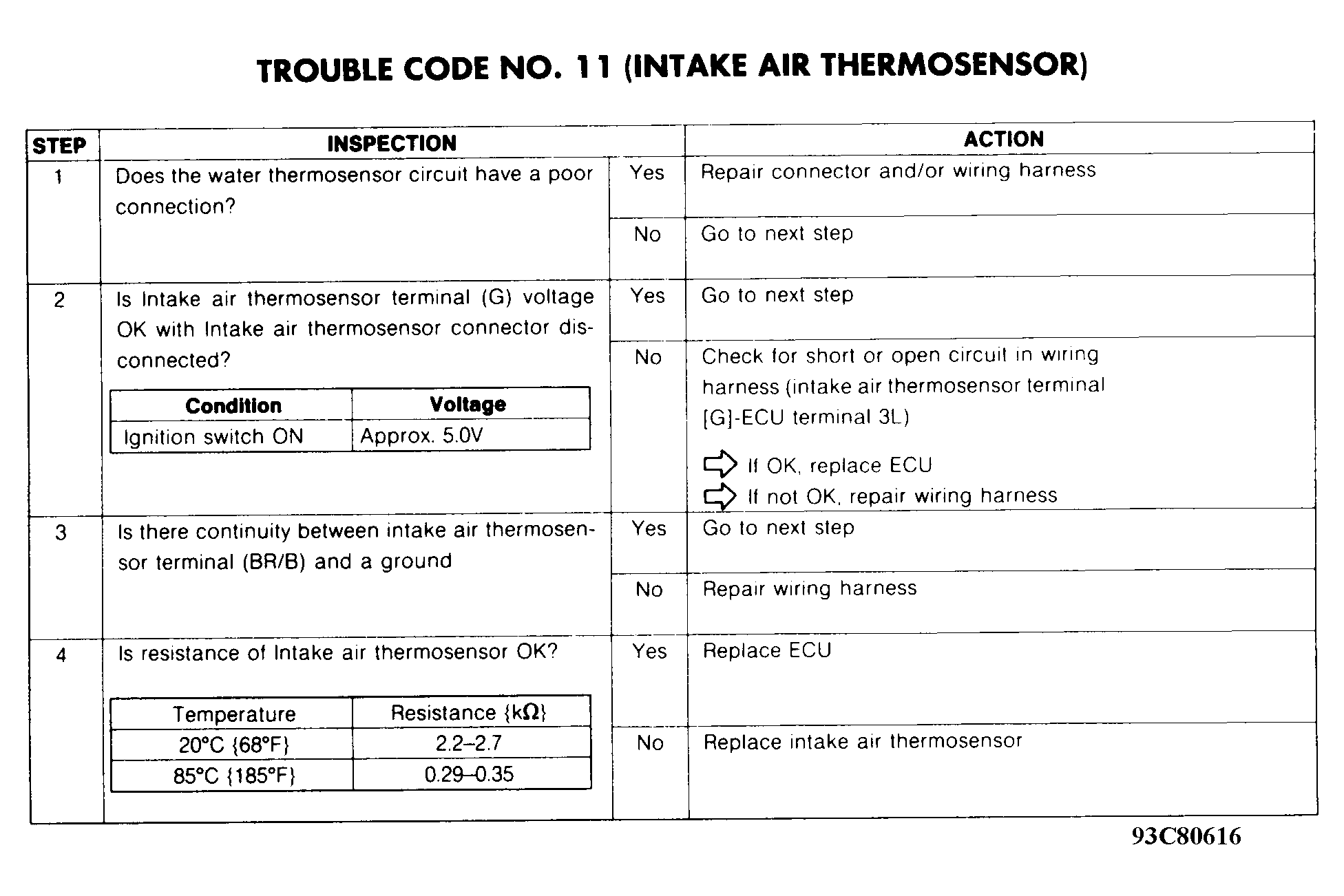

Fig 1: Trouble Code No. 11 Diagnostic Chart (RX7) (Intake Air Thermosensor)
G93C80616

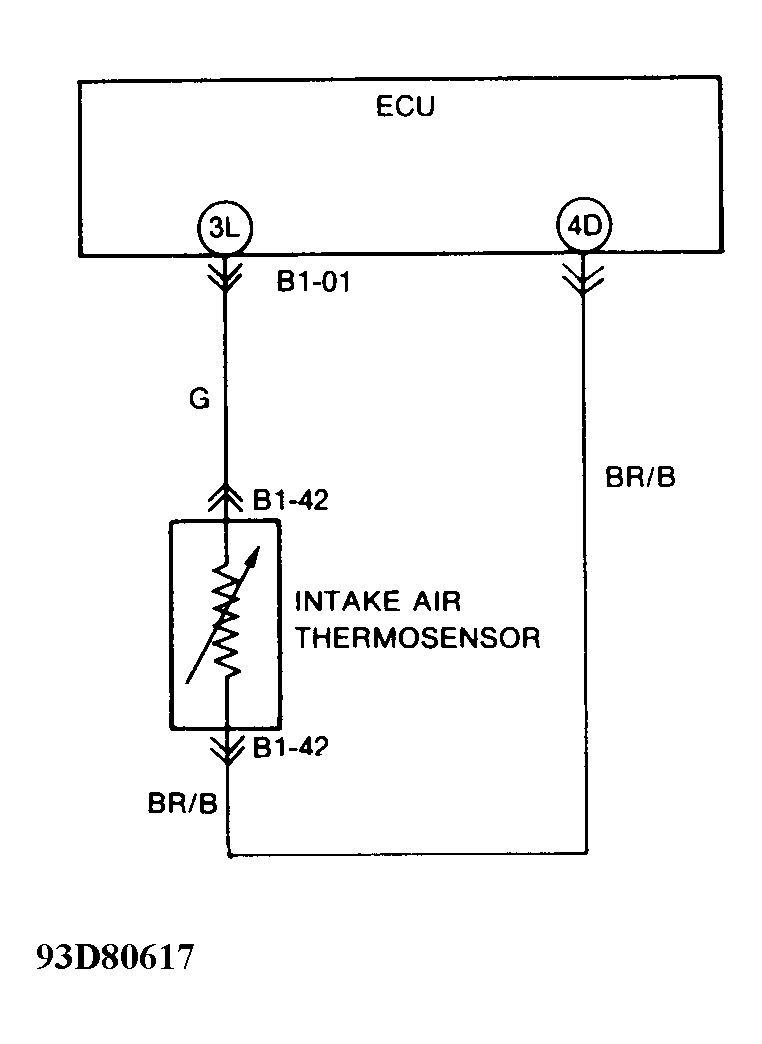

Fig 2: Trouble Code No. 11 Schematic (RX7) (Intake Air Thermosensor)
G93D80617
