Code 13: (Pressure Sensor)

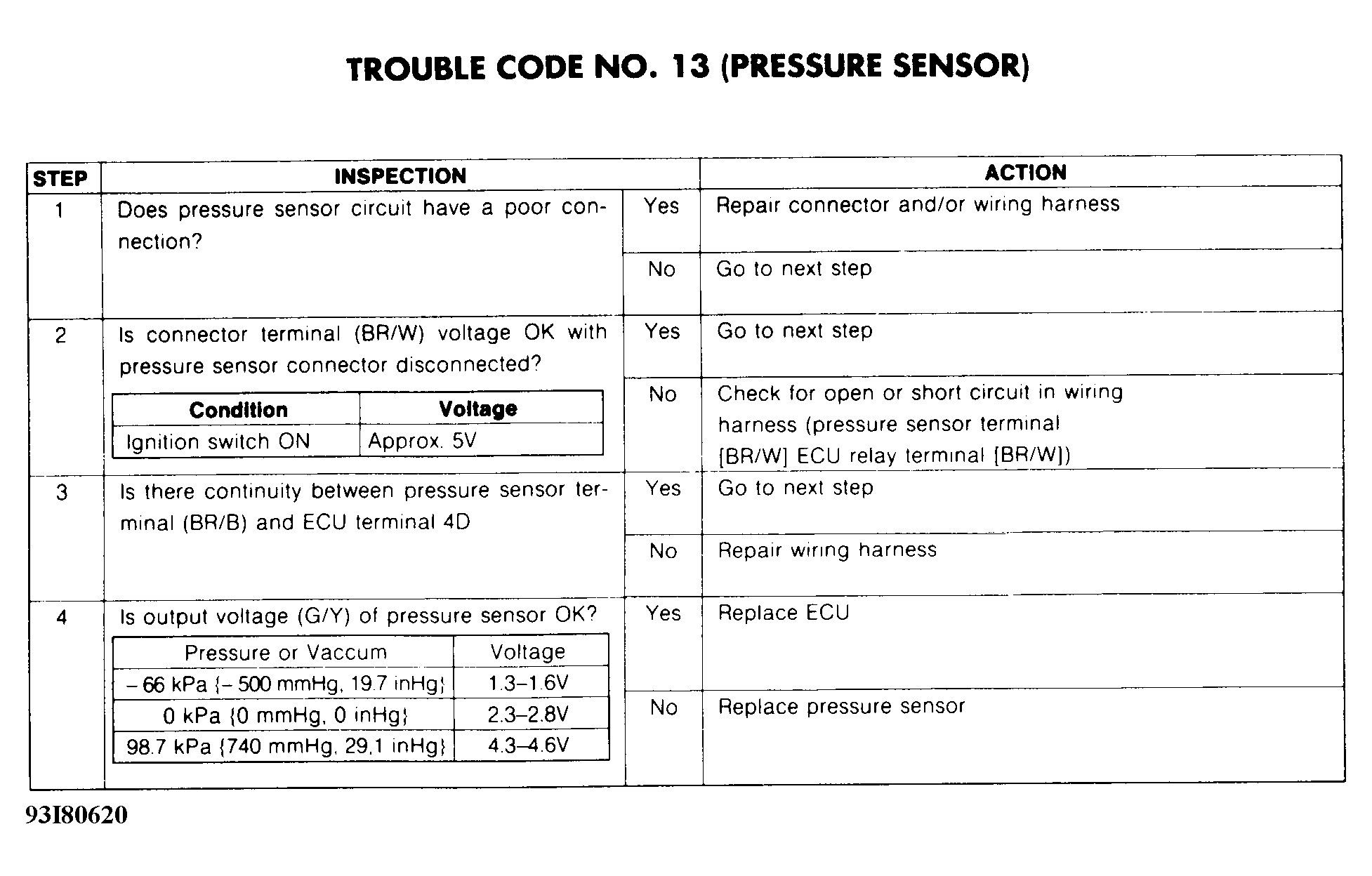

Fig 1: Trouble Code No. 13 Diagnostic Chart (RX7) (Pressure Sensor)
G93I80620

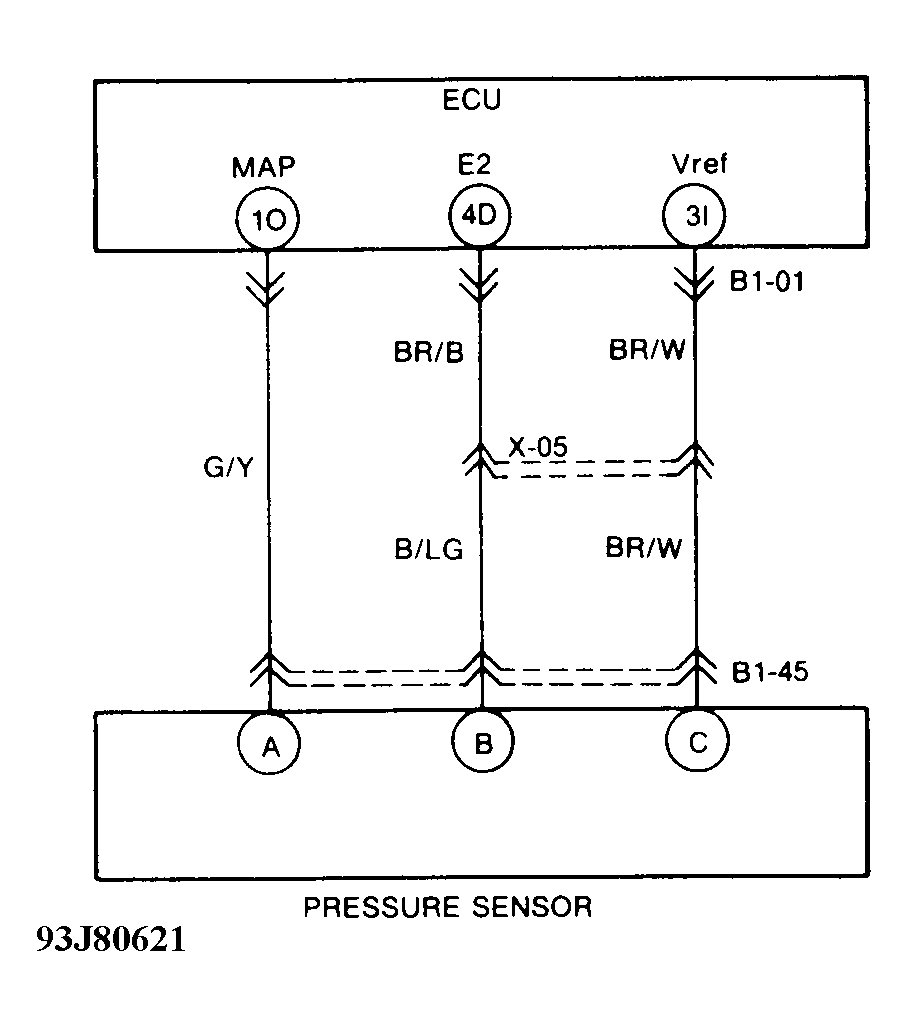

Fig 2: Trouble Code No. 13 Schematic (RX7) (Pressure Sensor)
G93J80621
