Code 17: (Feedback System)

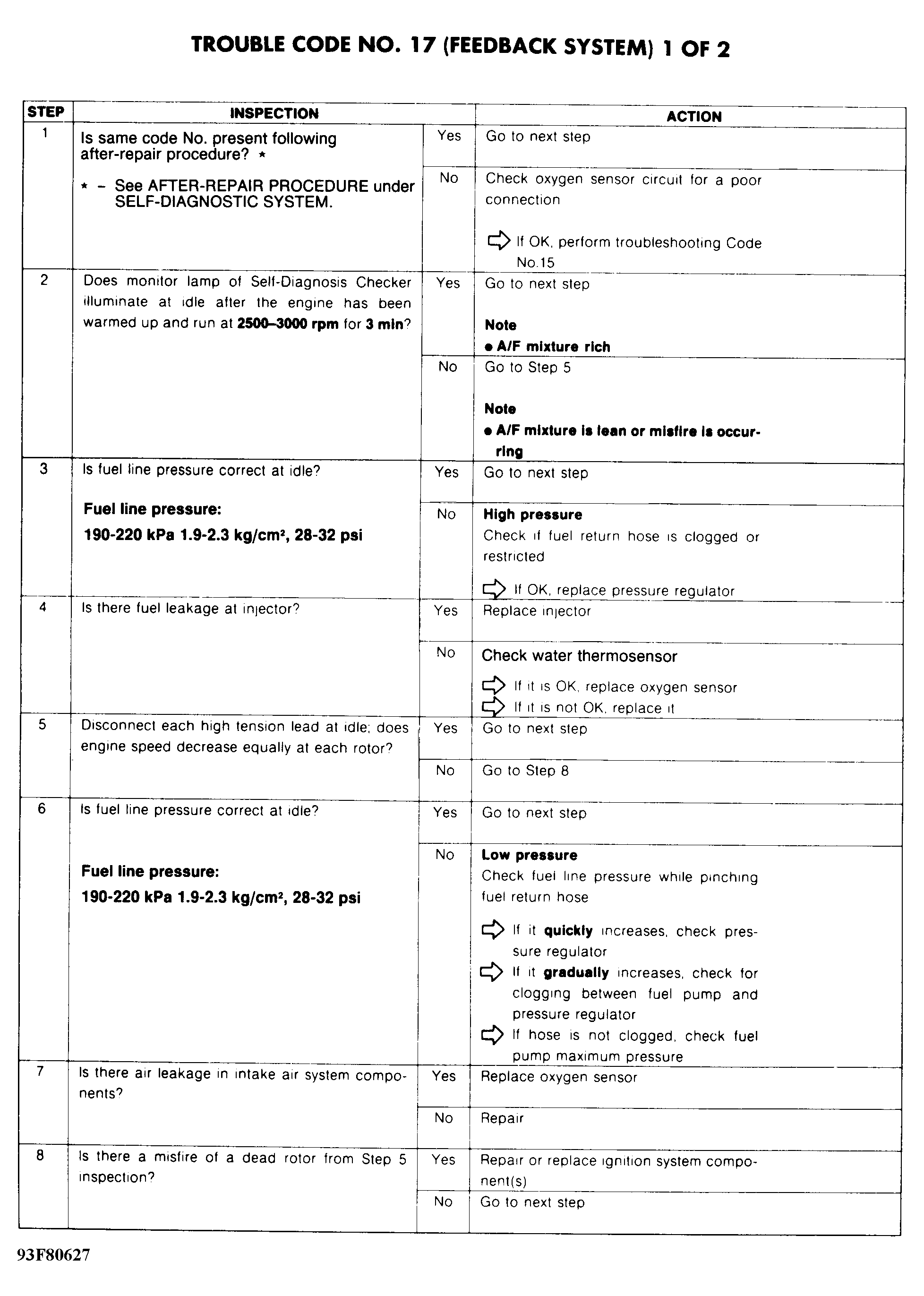

Fig 1: Trouble Code No. 17 Diagnostic Chart (1 Of 2) (Feedback System)
G93F80627

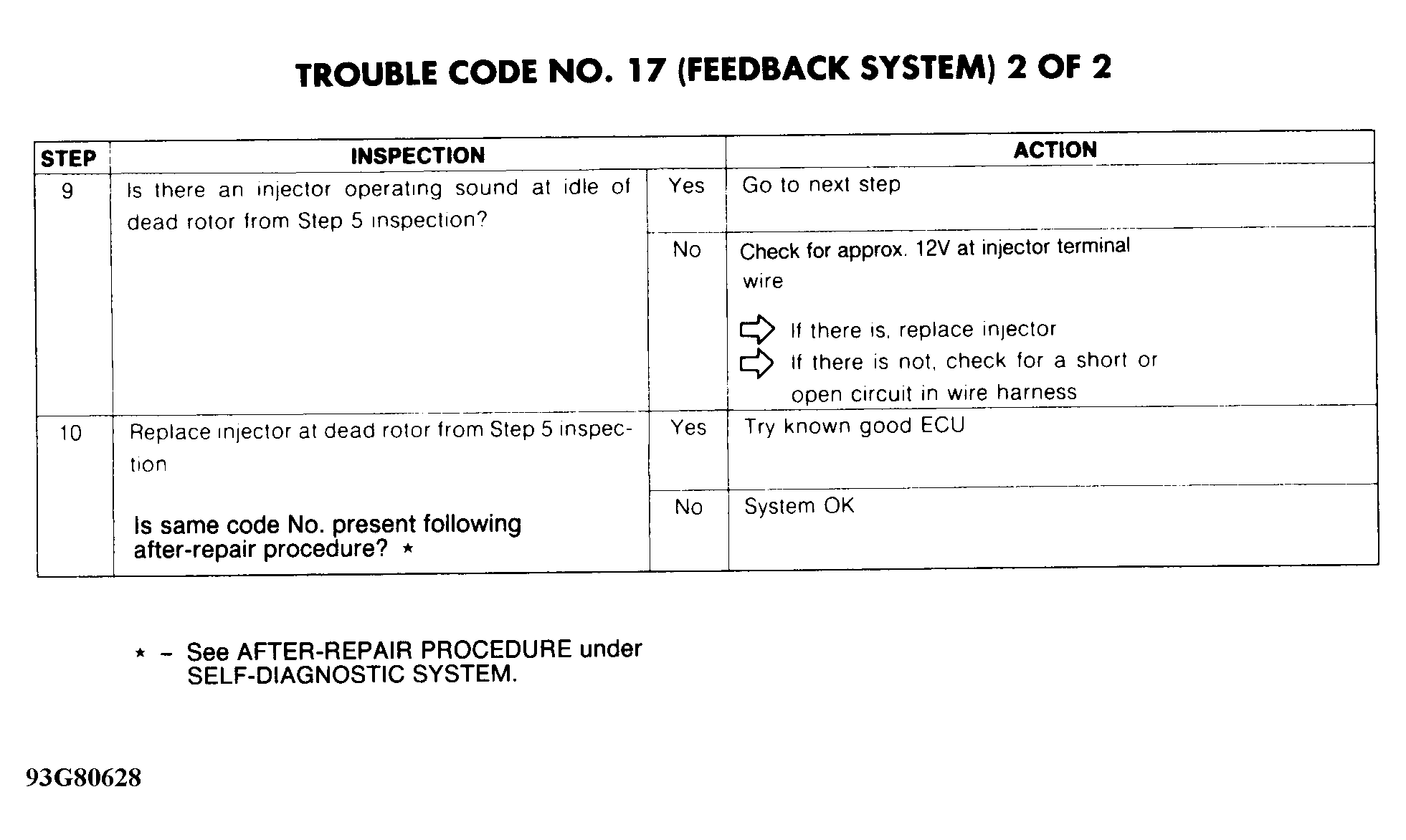

Fig 2: Trouble Code No. 17 Diagnostic Chart (2 Of 2) (Feedback System)
G93G80628

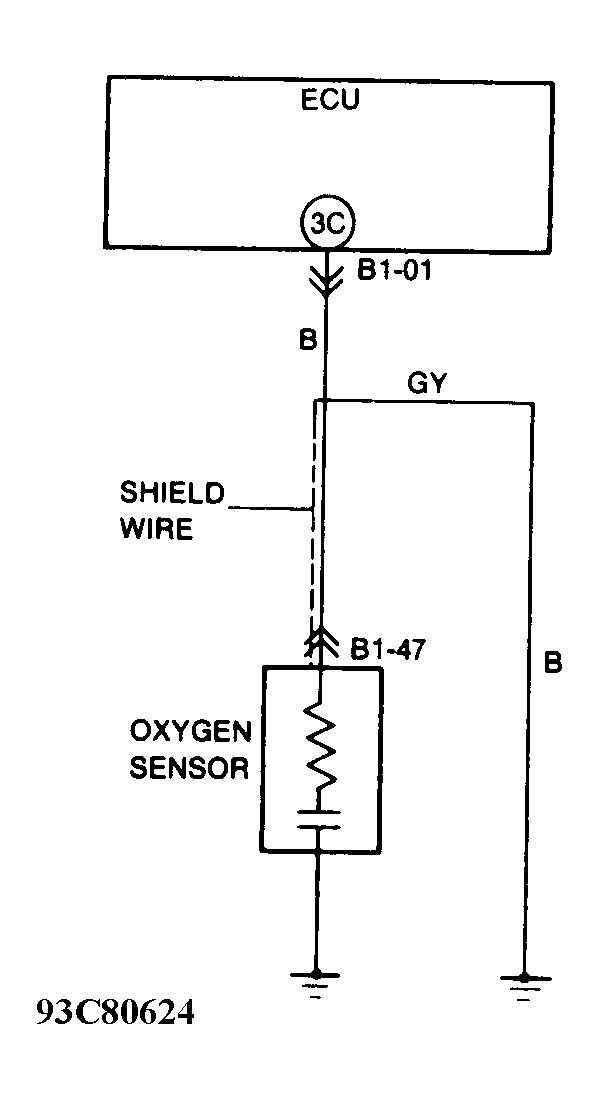

Fig 3: Trouble Code No. 17 Schematic (Feedback System)
G93C80624
