Code 5: (Knock Sensor)

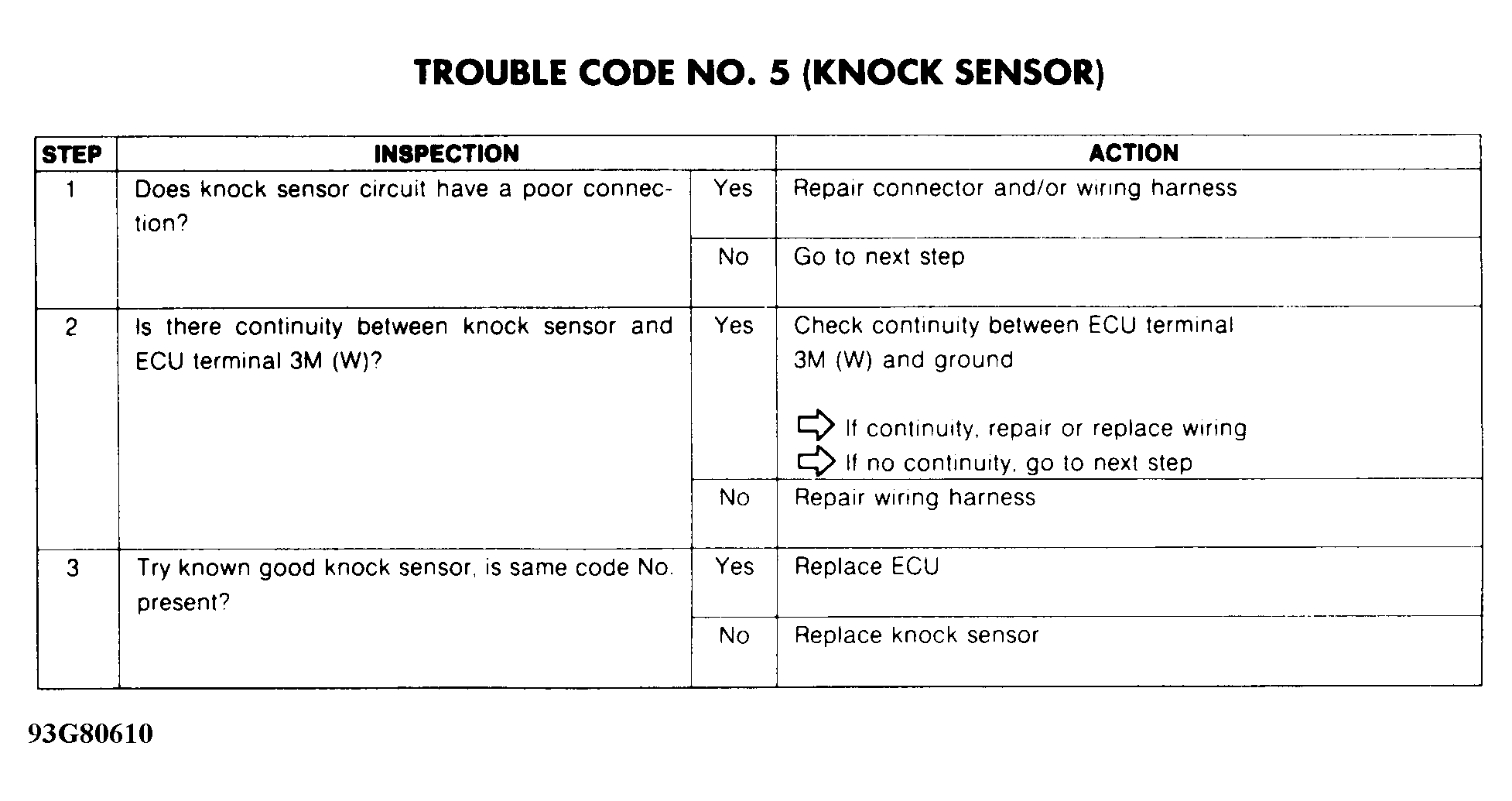

Fig 1: Trouble Code No. 5 Diagnostic Chart (RX7) (Knock Sensor)
G93G80610

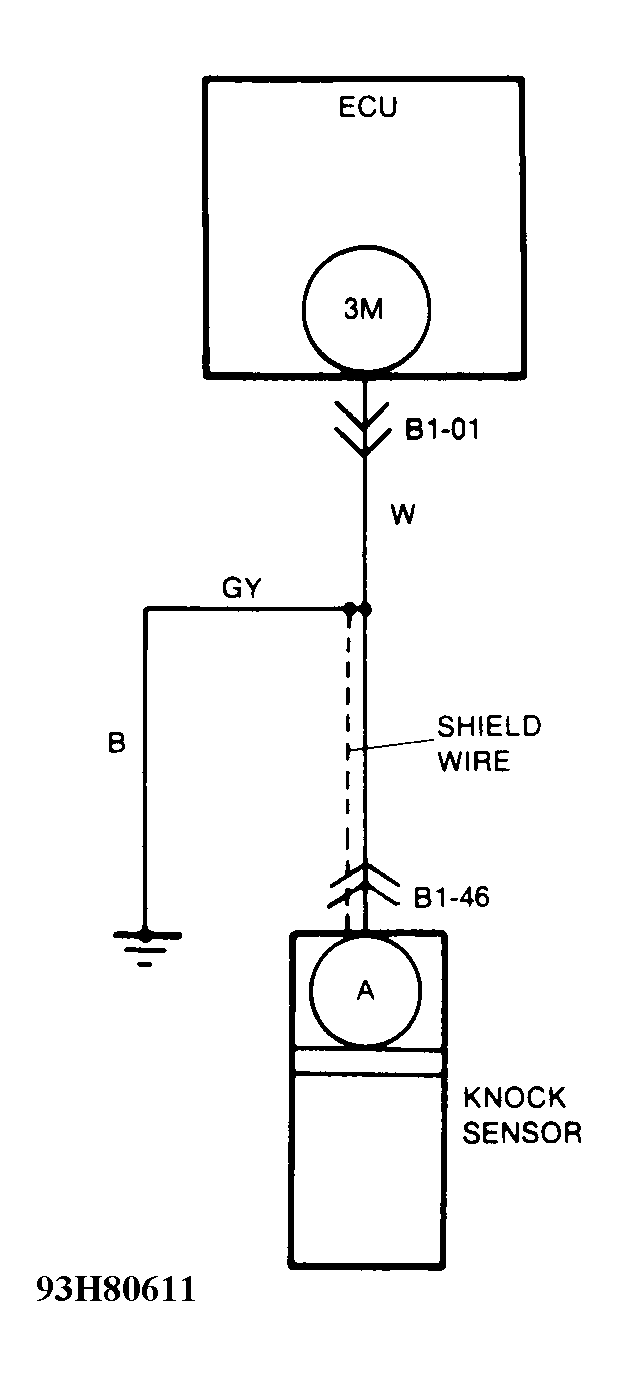

Fig 2: Trouble Code No. 5 Schematic (RX7) (Knock Sensor)
G93H80611
