Code 50: (Sol Valve - Double Throttle Control)

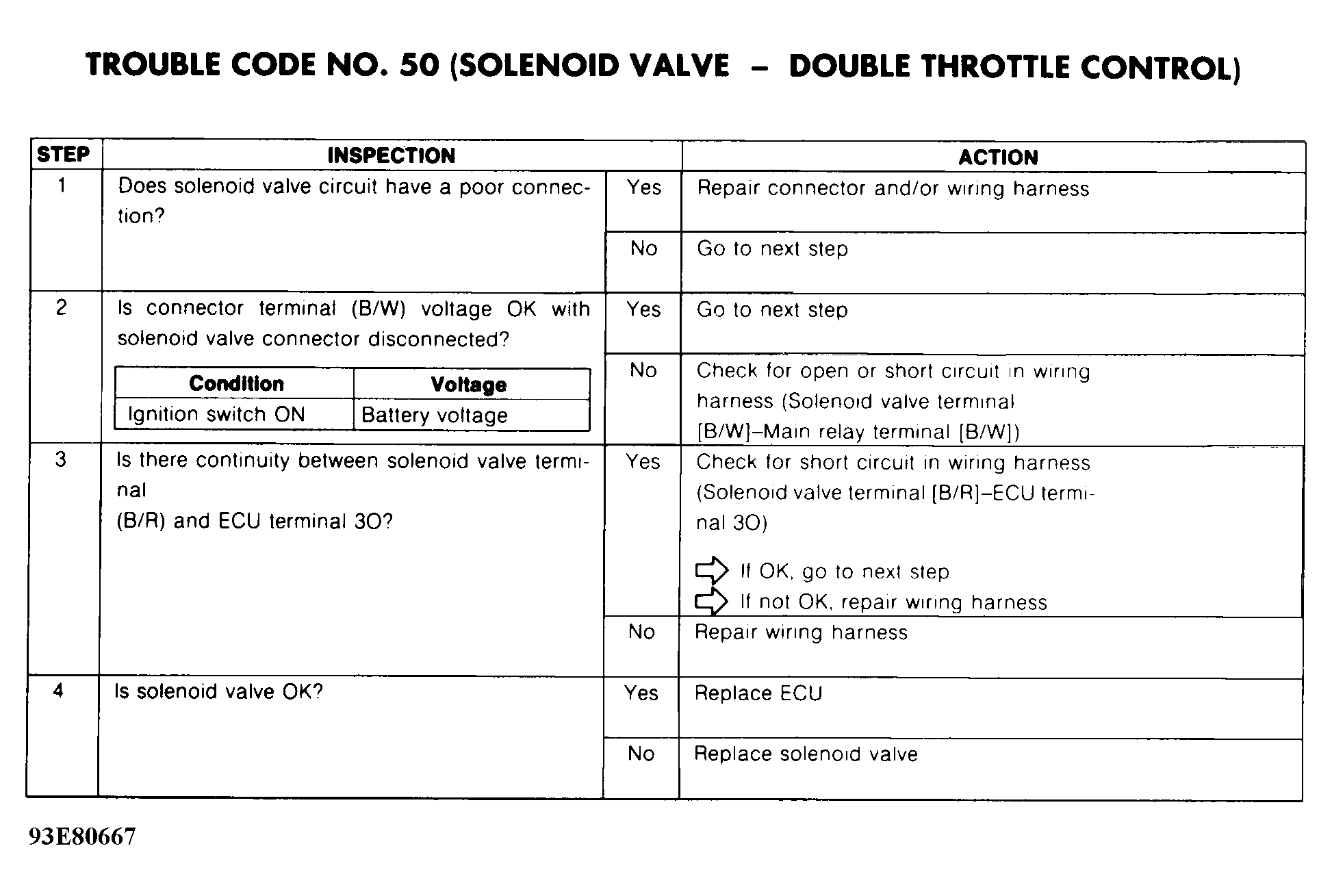

Fig 1: Trouble Code No. 50 Diagnostic Chart (RX7) (Solenoid Valve - Double Throttle Control)
G93E80667

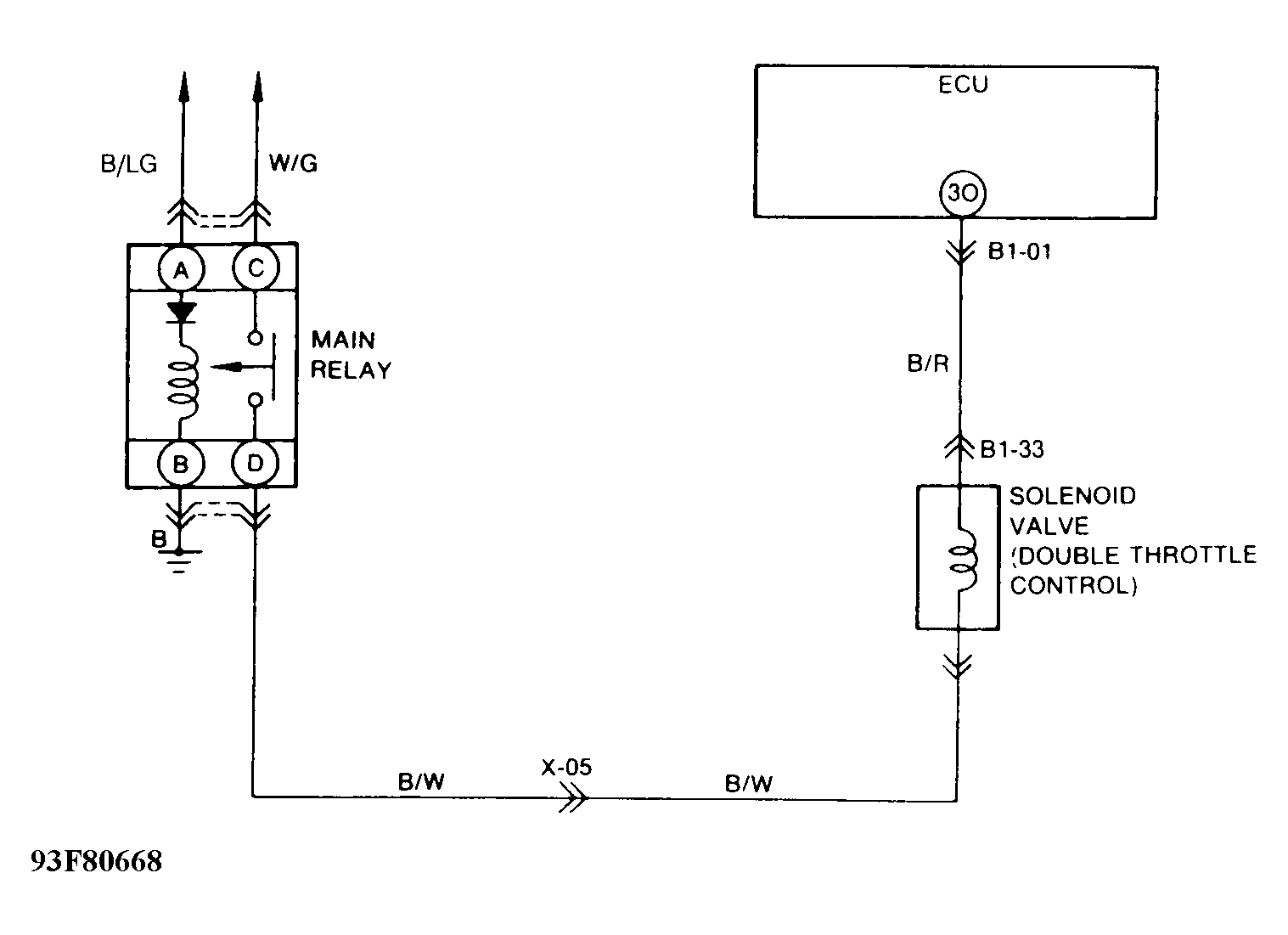

Fig 2: Trouble Code No. 50 Schematic (RX7) (Solenoid Valve - Double Throttle Control)
G93F80668
