Door Lock Switch

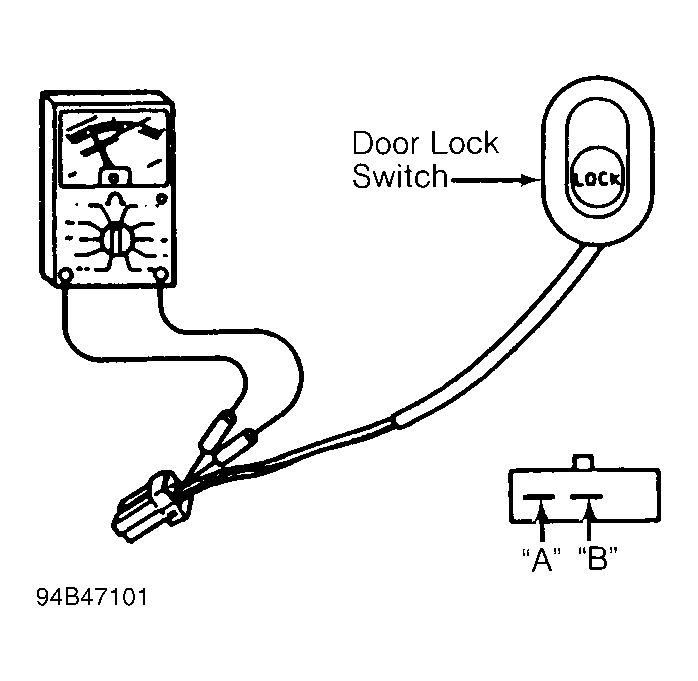

- Remove door trim panel. Disconnect door lock switch 3-pin connector. Check continuity between terminals "A" and "B" of door lock switch connector. SeeFig 1
. With door lock switch in unlocked position, continuity should exist. With door lock switch in locked position, continuity should exist.
- If continuity is as specified, check resistance of door lock switch with switch in locked position. If resistance is not 950-1050 ohms, replace door lock switch.
Courtesy of MAZDA MOTORS CORP.
