Door Lock Timer Unit: Notes

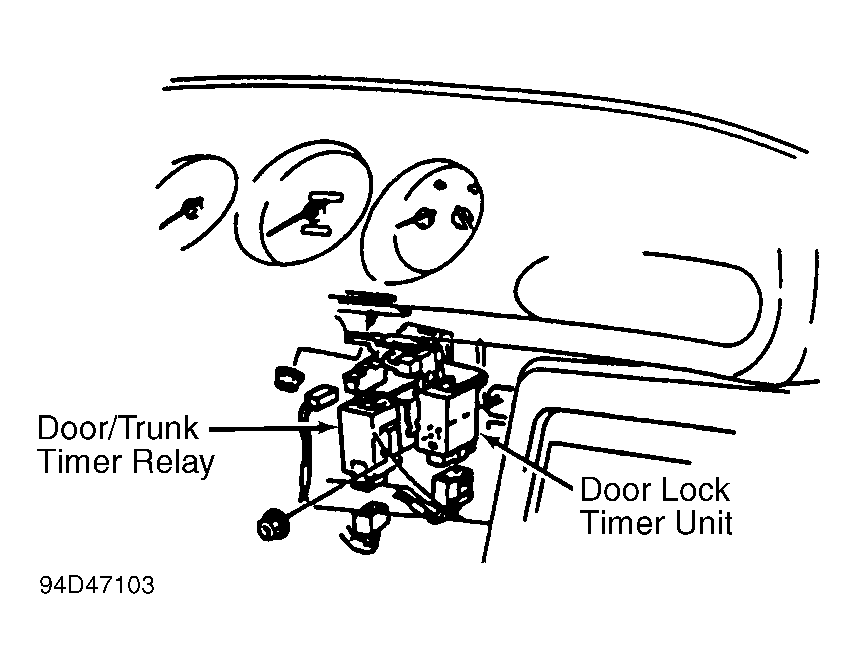

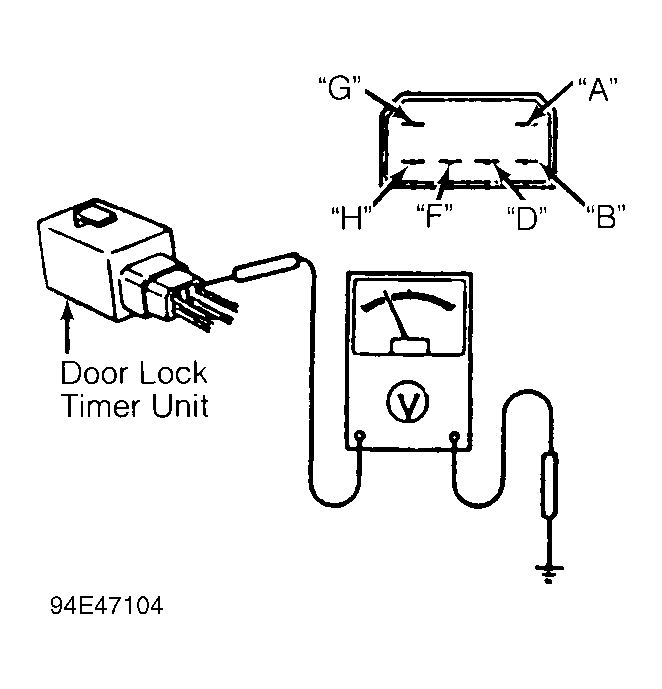

Remove door lock timer unit from bracket. SeeFigure . DO NOT disconnect door lock timer unit connector. A list of door lock timer unit connector terminals with specified voltages follows. Measure voltage at each door lock timer unit connector terminal (backprobe connector). SeeFigure . If voltages are not as specified, check wiring. If wiring is okay, replace door lock timer unit.
