Abs Control Module Test

Turn ignition off. Test ABS Control Module (ABS CM) using DVOM and Adapter Harness (49-F066-002) connected to ABS CM connector. See Fig 1 . Measure resistance, continuity or voltage as specified. See Fig 1 through Fig 4 If checking voltage, measure between applicable terminal and GND terminal (AB, AC or AM) of ABS CM connector. If voltage, continuity or resistance is not as specified, replace ABS CM.

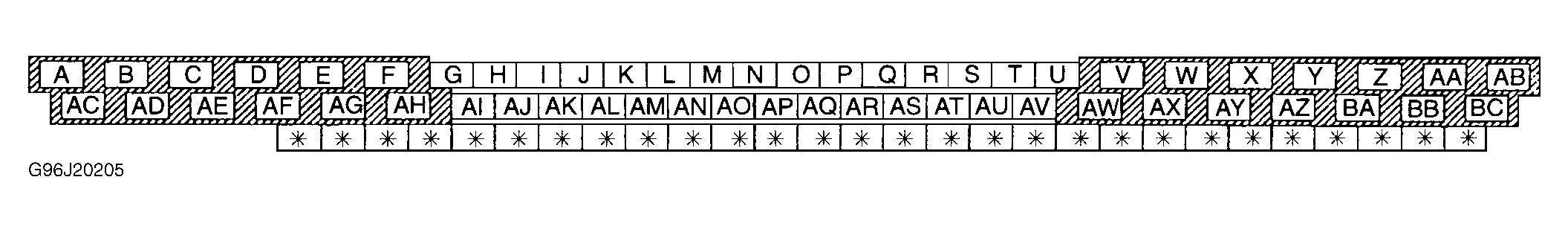

Fig 1: Identifying ABS Control Module Connector Terminals

Courtesy of MAZDA MOTORS CORP.

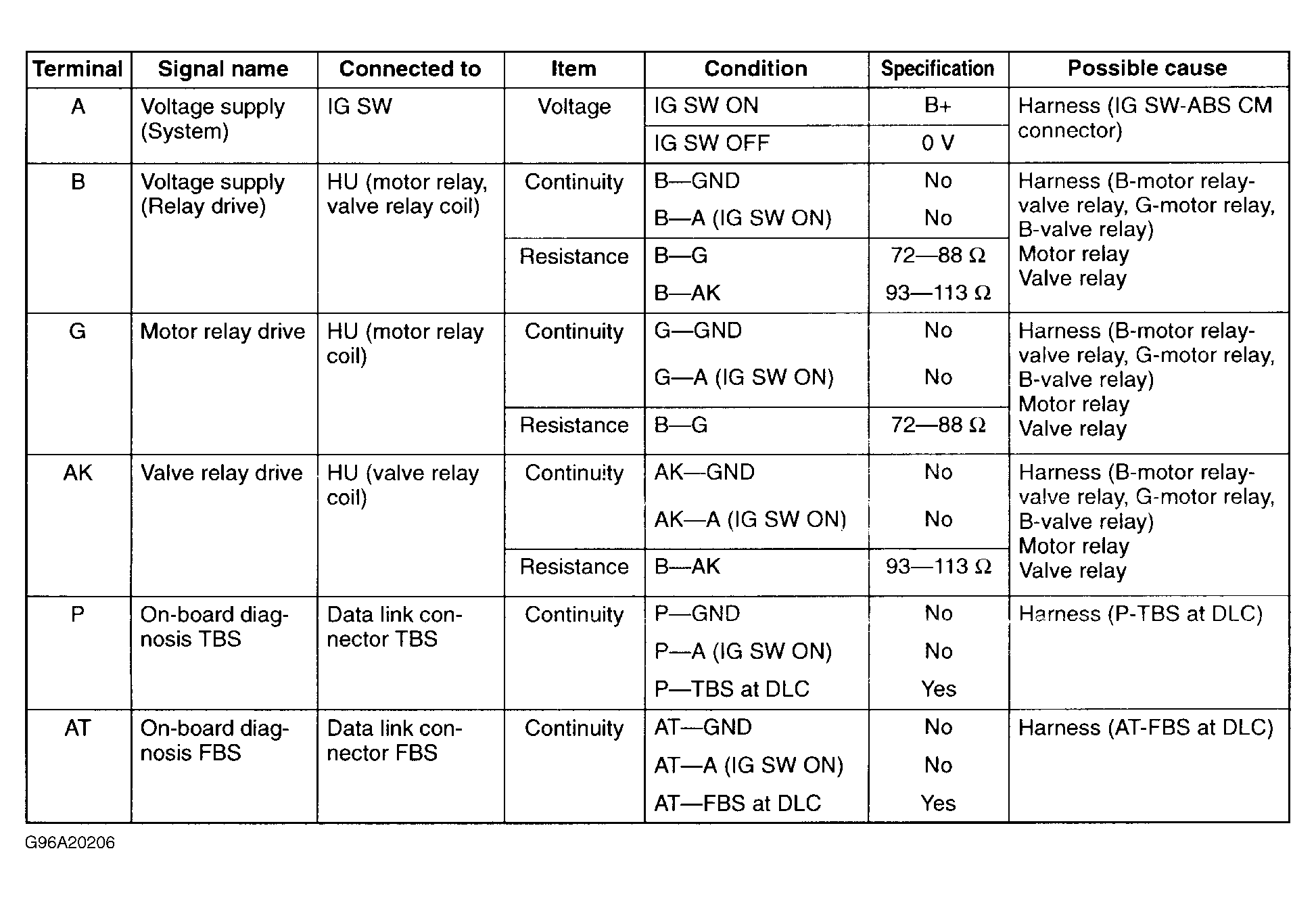

Fig 2: Testing ABS Control Module (1 Of 3)

Courtesy of MAZDA MOTORS CORP.

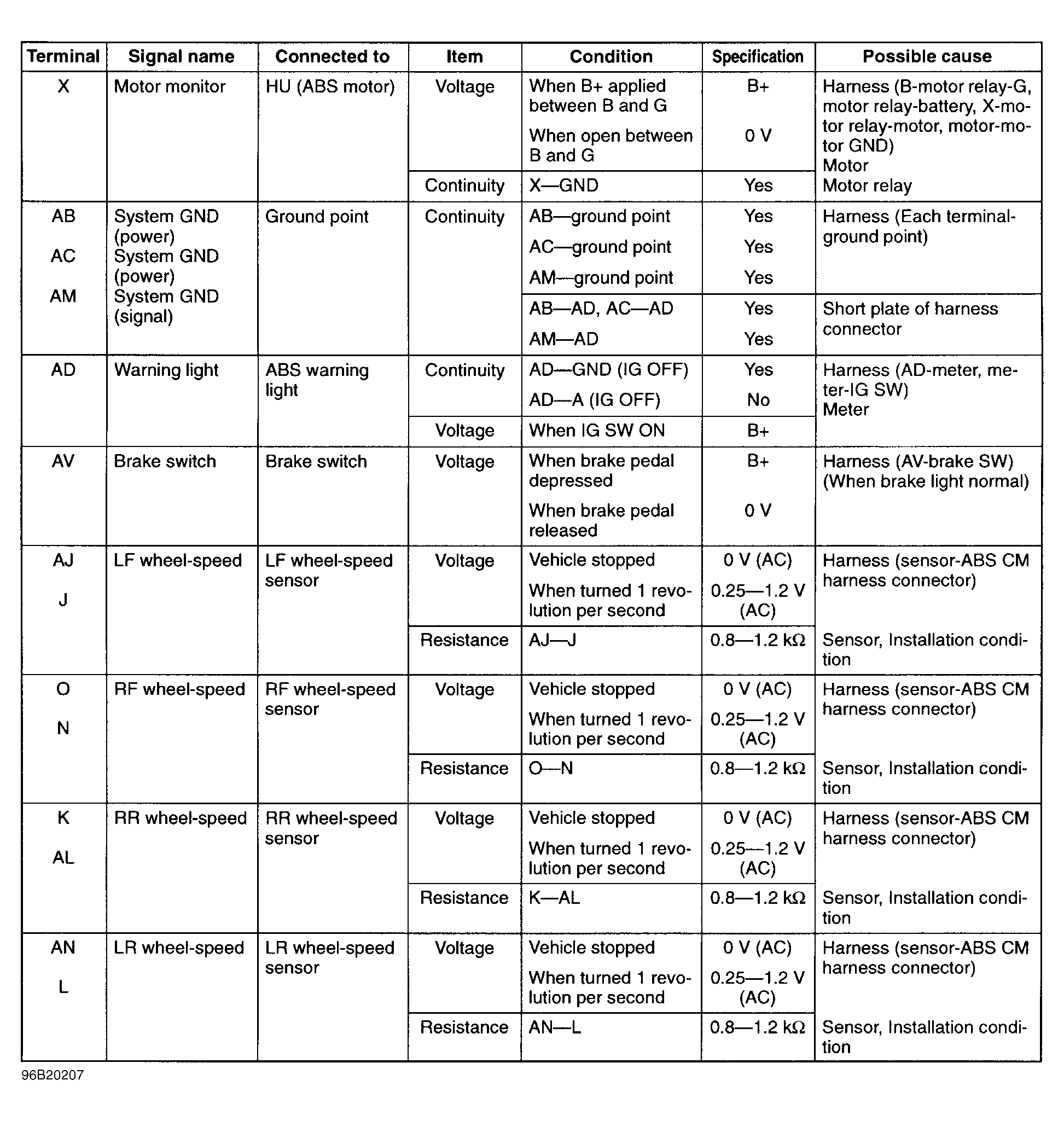

Fig 3: Testing ABS Control Module (2 Of 3)

Courtesy of MAZDA MOTORS CORP.

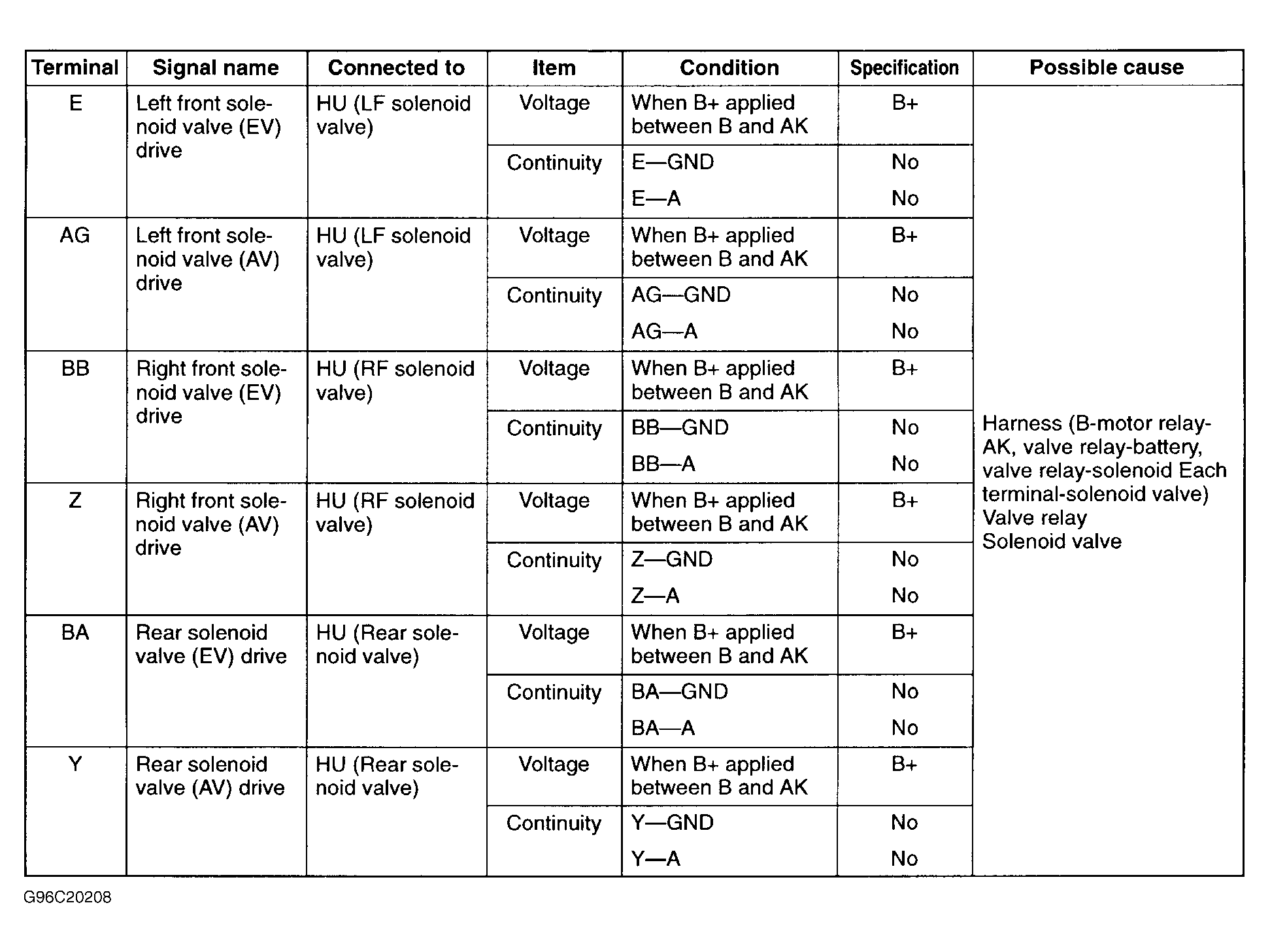

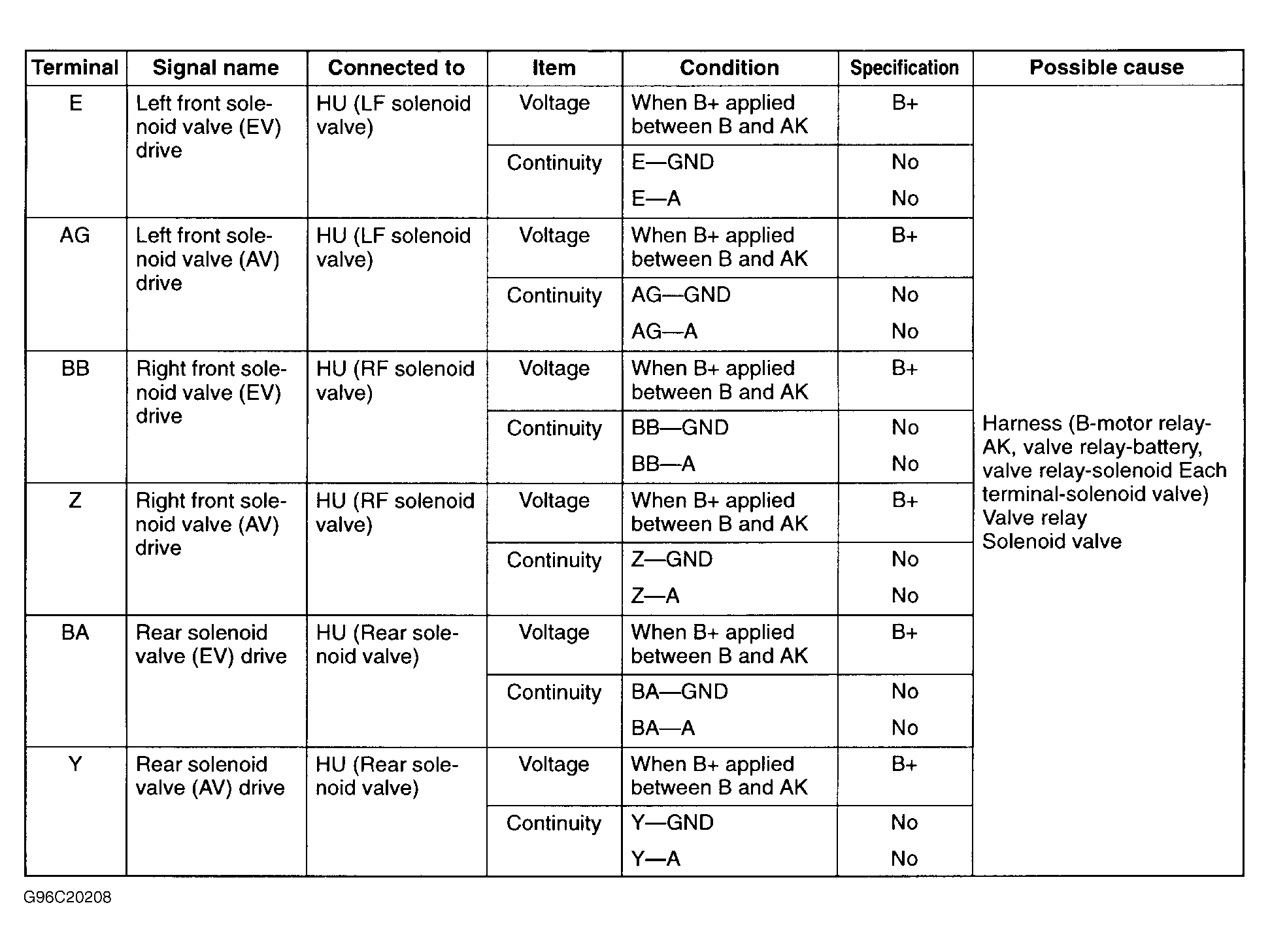

Fig 4: Testing ABS Control Module (3 Of 3)

Courtesy of MAZDA MOTORS CORP.
