Pump Motor
- Turn ignition off. Disconnect ABS Control Module (ABS CM) connector. See COMPONENT LOCATIONS
. Connect Adapter Harness (49-F066-002) to ABS CM connector. Using ohmmeter, measure resistance between terminal "X" of ABS CM connector and ground. See Figure
. Resistance should not be more than one ohm. If resistance is not as specified, check wiring harness between ABS CM and pump motor. See WIRING DIAGRAMS
. If wiring harness is okay, go to next step.

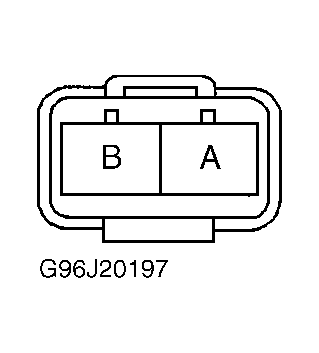

- Turn ignition off. Disconnect pump motor/hydraulic unit 2-pin connector. Using ohmmeter, measure resistance between terminal "B" of pump motor/hydraulic unit connector and ground. See Fig 1
. Resistance should not be more than one ohm. Apply 12 volts across pump motor/hydraulic unit 2-pin connector terminals. Pump motor should operate. If resistance is not as specified or pump motor does not operate, check wiring harness. If wiring harness is okay, replace hydraulic unit.
Courtesy of MAZDA MOTORS CORP.
