Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

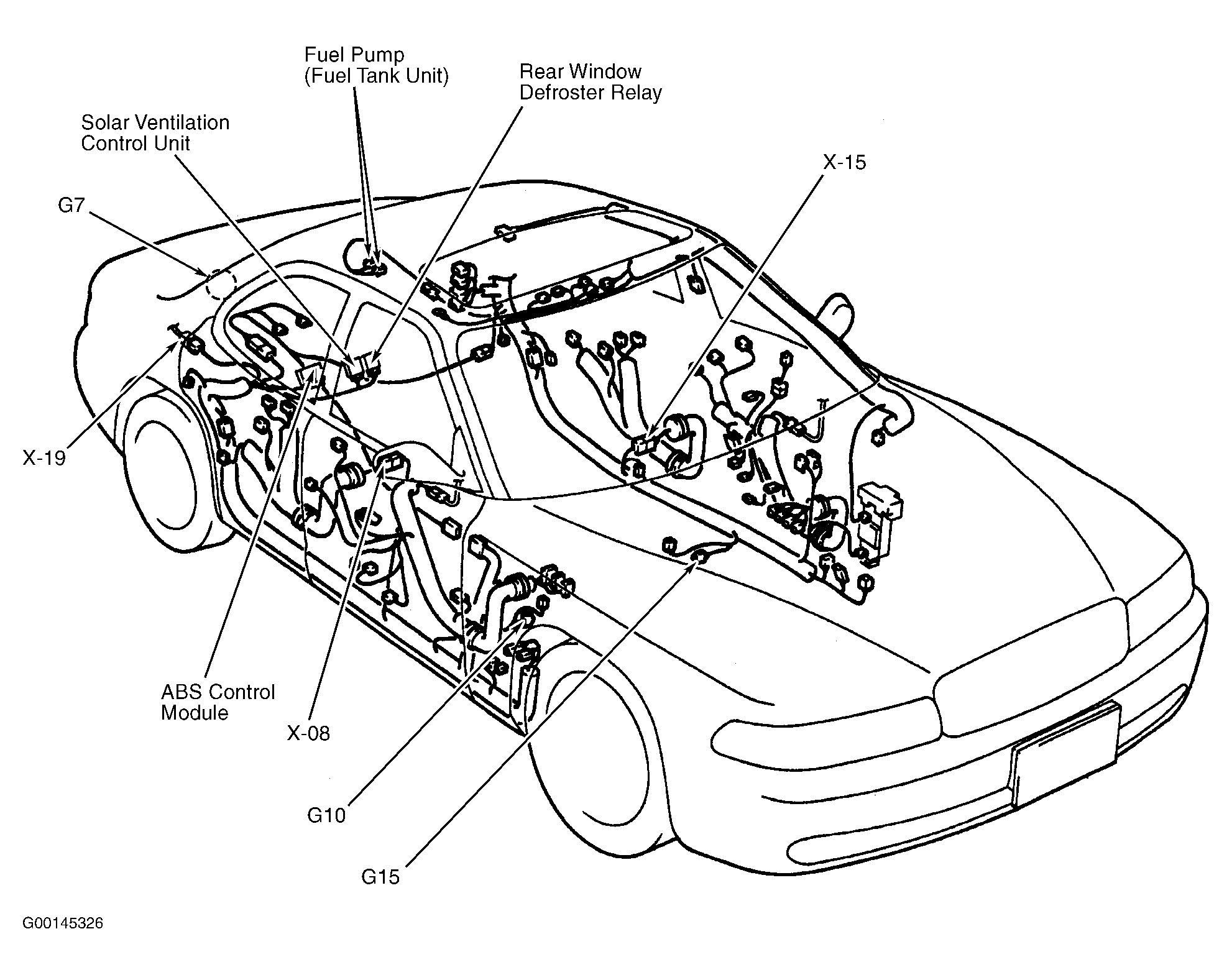

| ABS Control Module | Behind right side of rear seat back. See Figure . |
| Audio Amplifier | Behind left side of rear seat back. |
| CD Changer Controller | Behind center of dash. |

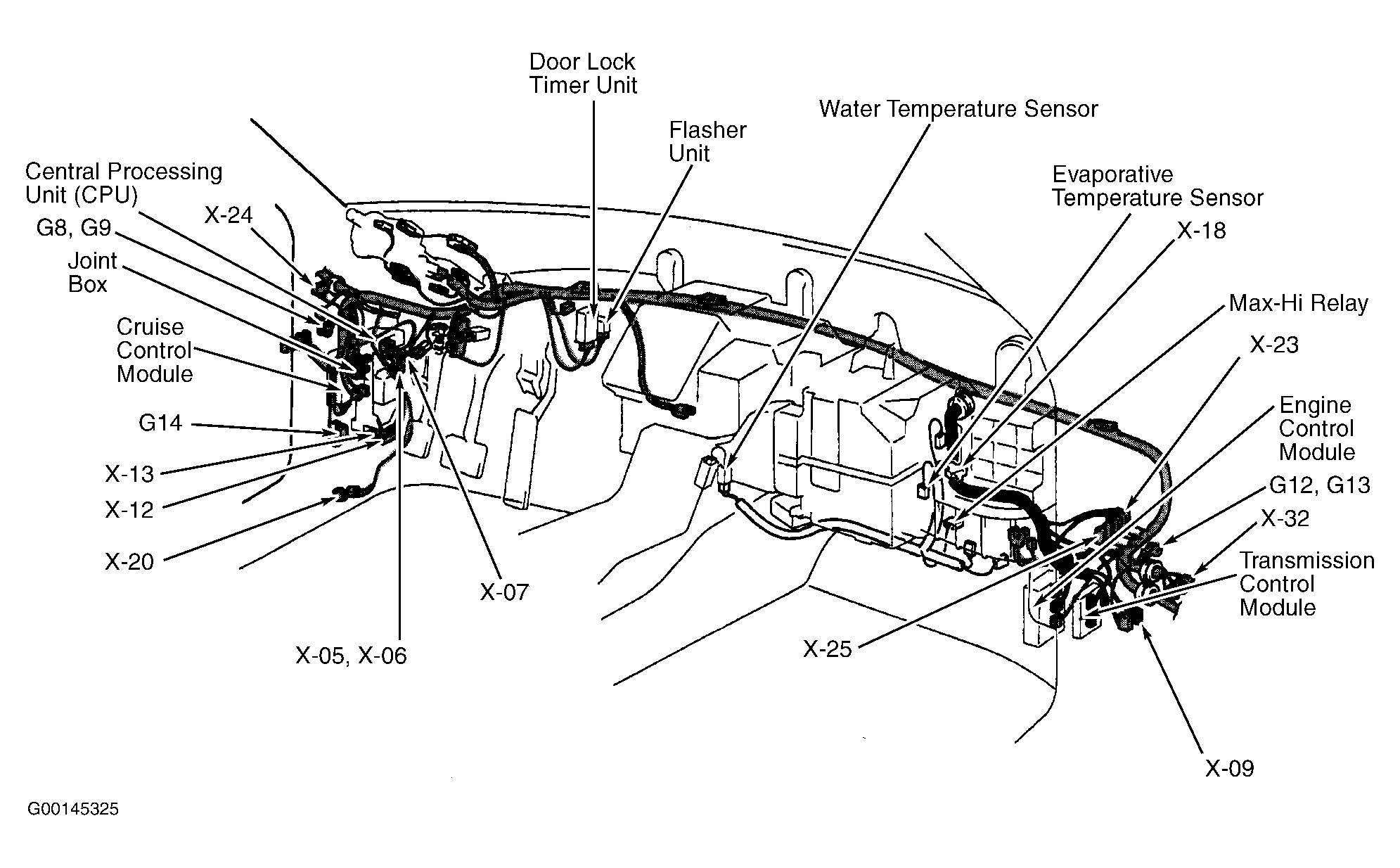

| Central Processing Unit (CPU) | Behind left side of dash, above kick panel. See Figure . |
| Cruise Control Module | Behind left front kick panel. See Figure . |
| Diagnostic Module | Behind left side of dash. |
| Engine Control Module | Behind right kick panel. See Figure . |

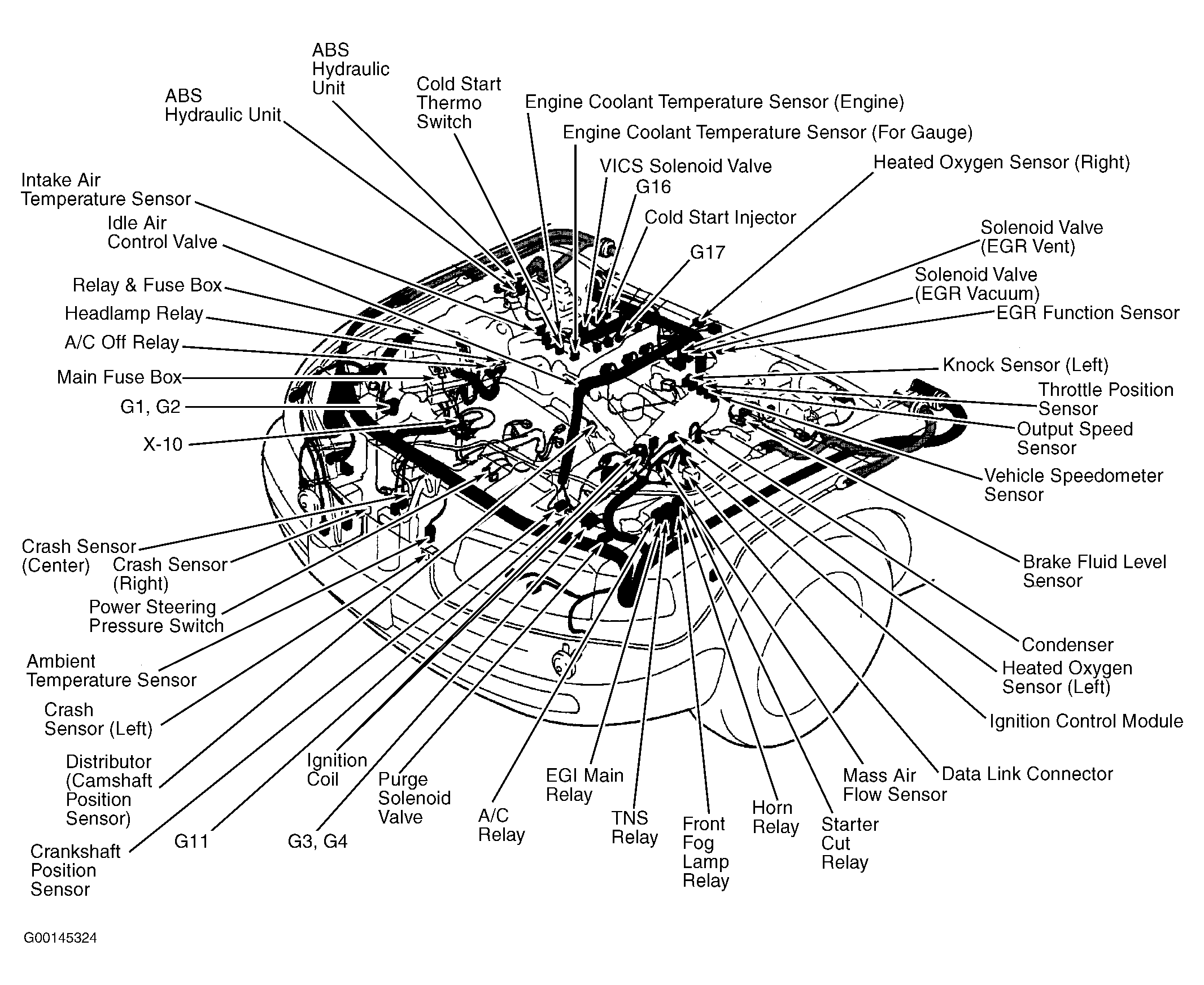

| Ignition Control Module | On left side, center of engine compartment. See Figure . |
| Keyless Unit | Under center of rear package shelf. |
| Solar Ventilation Control Unit | Behind rear seat back, center right side of vehicle. See Figure . |
| Transceiver | On right front side of luggage compartment. |
| Transmission Control Module | Behind right kick panel. See Figure . |
