3-Port Check Valve

Note direction of valve installation. Remove check valve. Cap port going to 2-way check valve. Connect a vacuum pump to lower port. Air should flow from port going to fuel tank with 3.0 in. Hg applied. Replace valve as necessary.

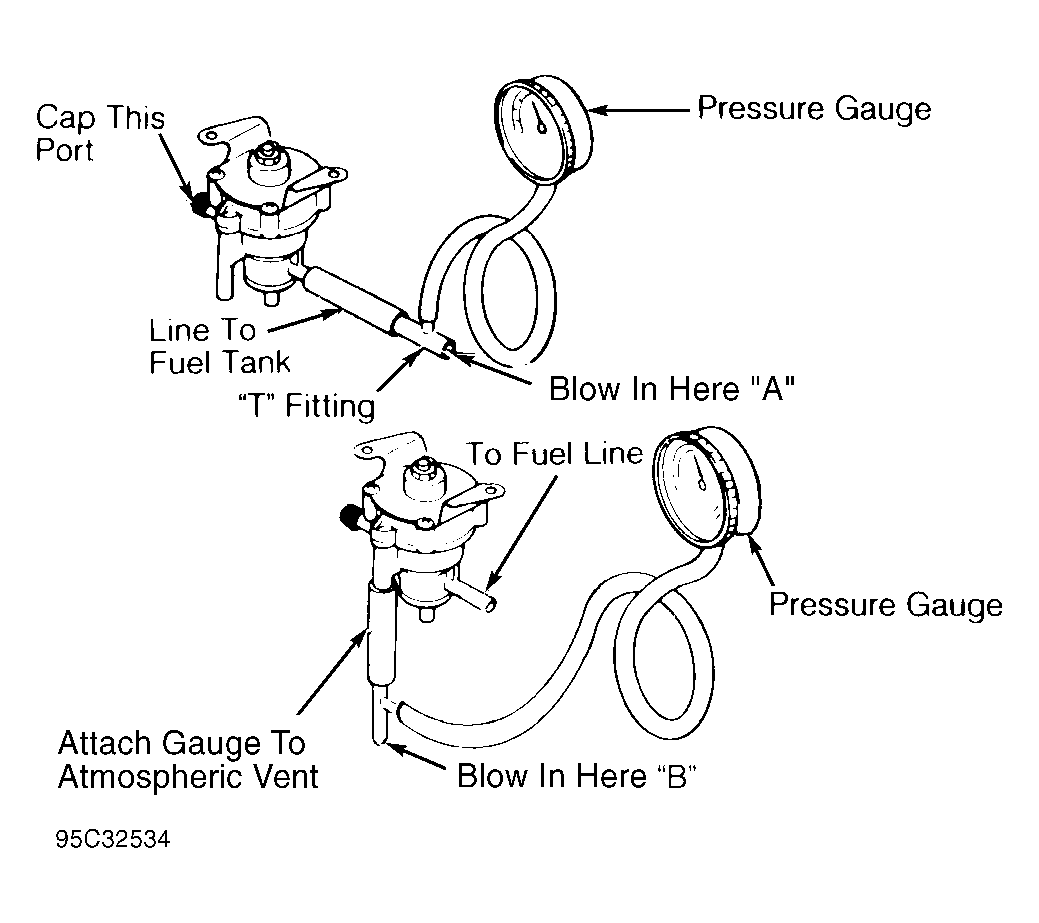

Fig 1: Testing Check & Cut Valve

Courtesy of MAZDA MOTORS CORP.
