Code 15 & 23: Left/Right Heated Oxygen Sensor - Inactive

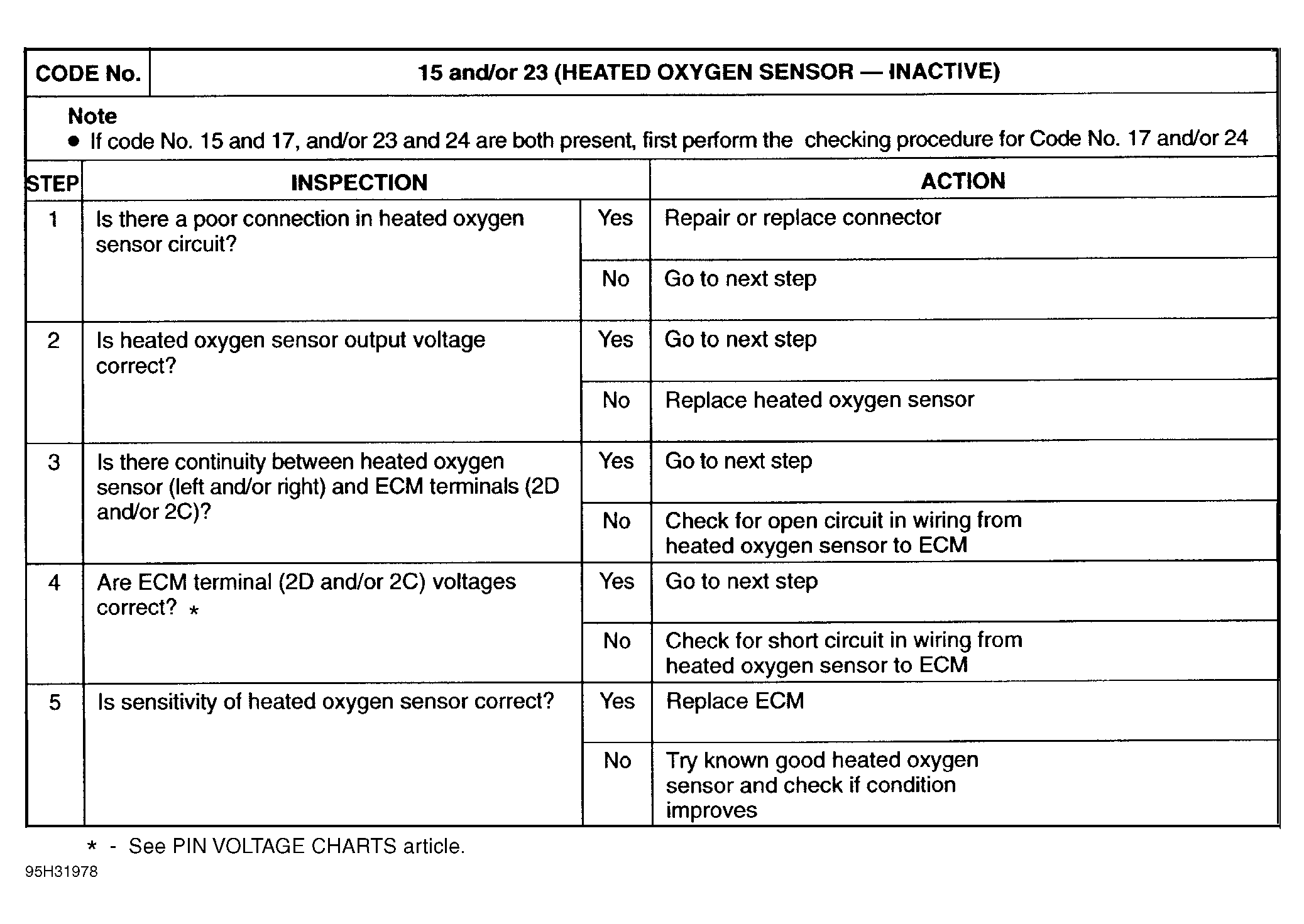

Fig 1: Trouble Code No. 15/23 Left/Right Heated Oxygen Sensor - Inactive
G95H31978
Fig 2: Trouble Code No. 15/23 Heated Oxygen Sensor Circuit Diagram
G95I31979
