Code 16: EGR Valve Position Sensor

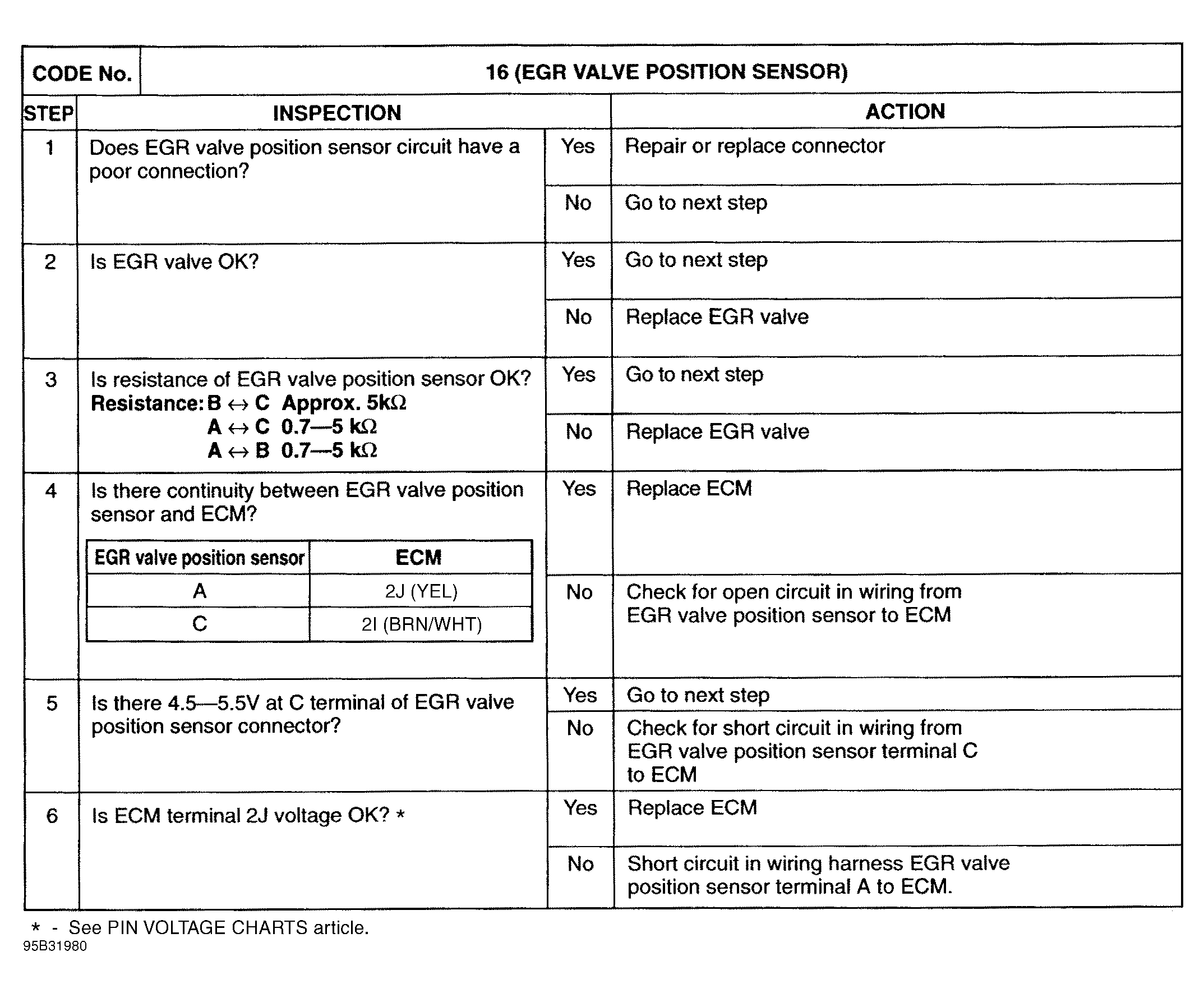

Fig 1: Trouble Code No. 16 EGR Valve Position Sensor
G95B31980

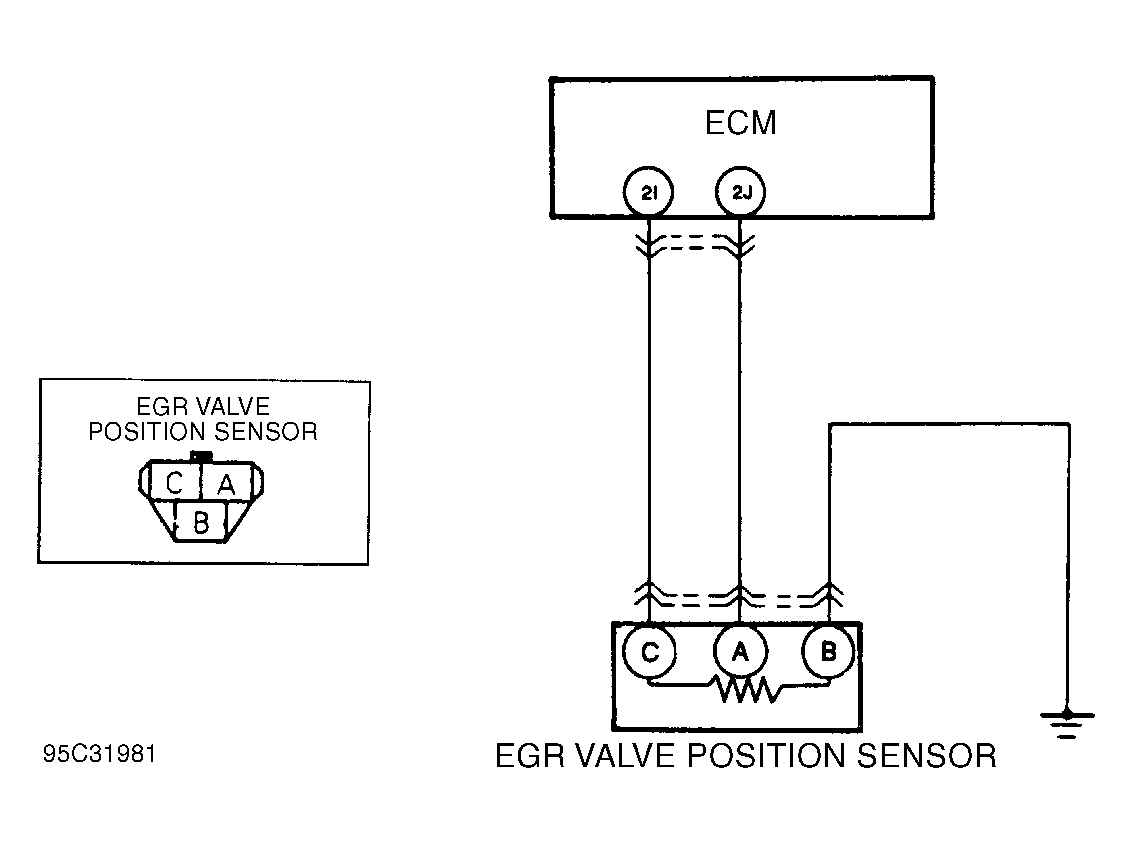

Fig 2: Trouble Code No. 16 EGR Valve Position Sensor Circuit Diagram
G95C31981
