Code 2: Crankshaft Position Sensor - Ne Signal

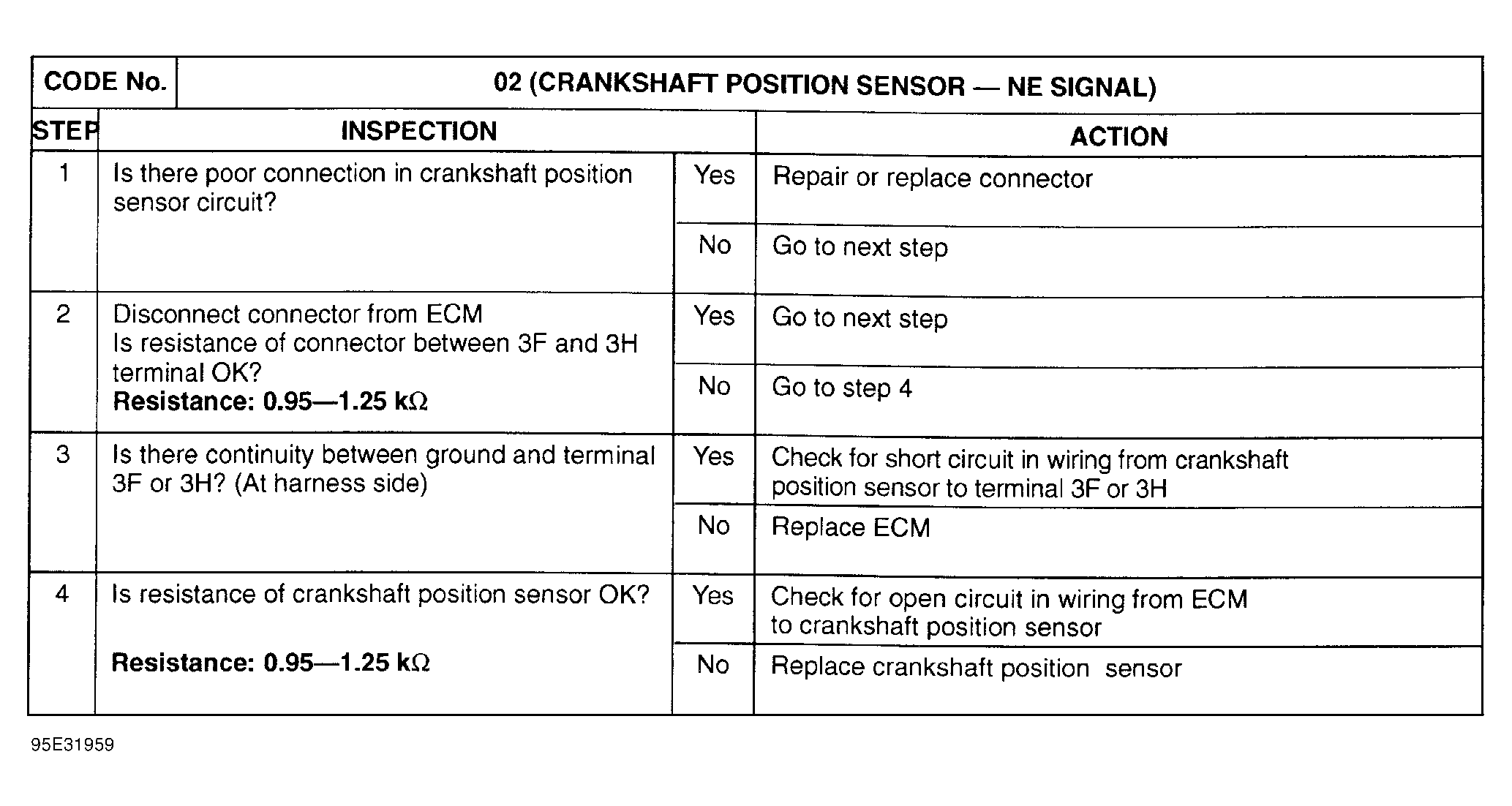

Fig 1: Trouble Code No. 2 Crankshaft Position Sensor - NE Signal
G95E31959

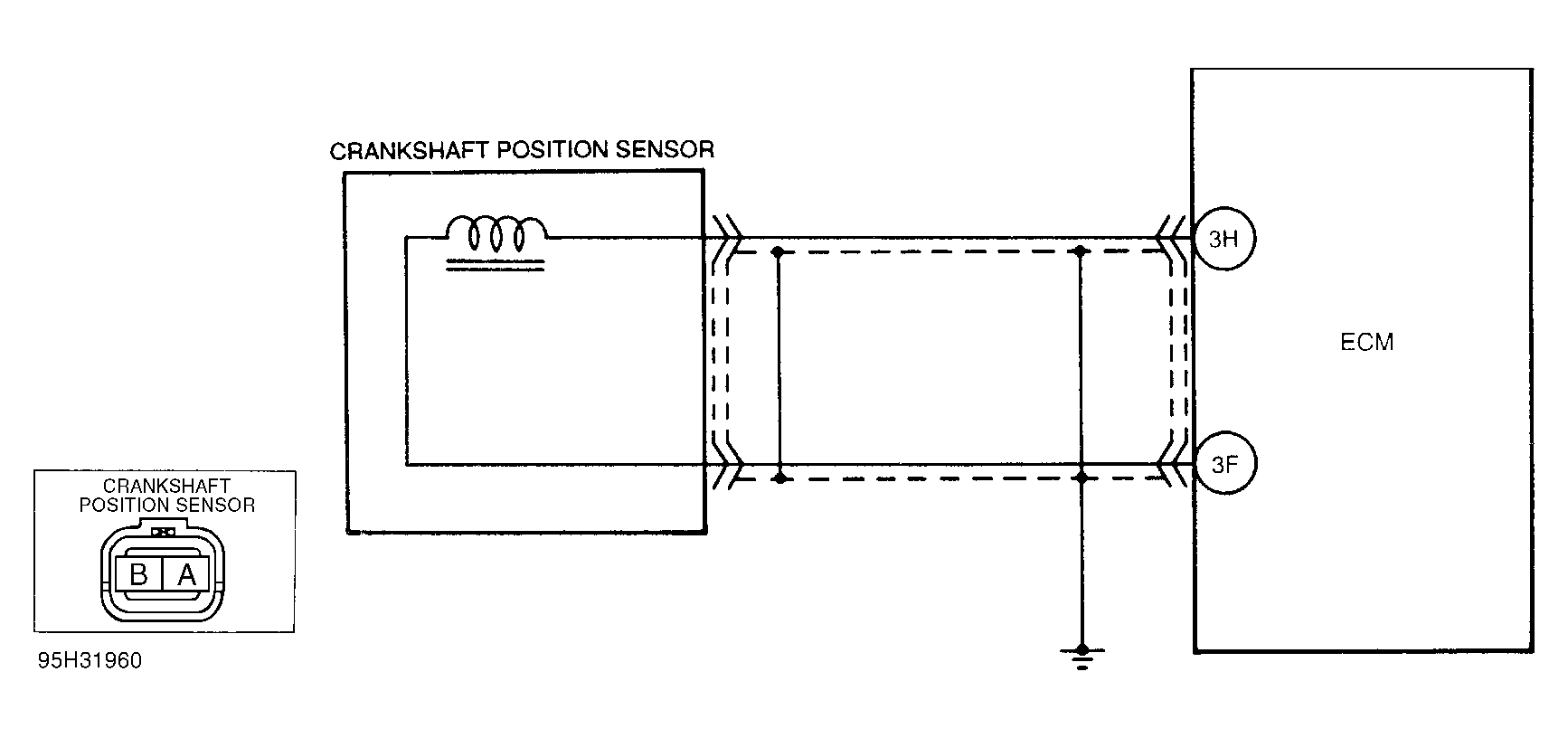

Fig 2: Trouble Code No. 2 Crankshaft position sensor circuit diagram
G95H31960
