Code 5 & 7: Left/Right Knock Sensor

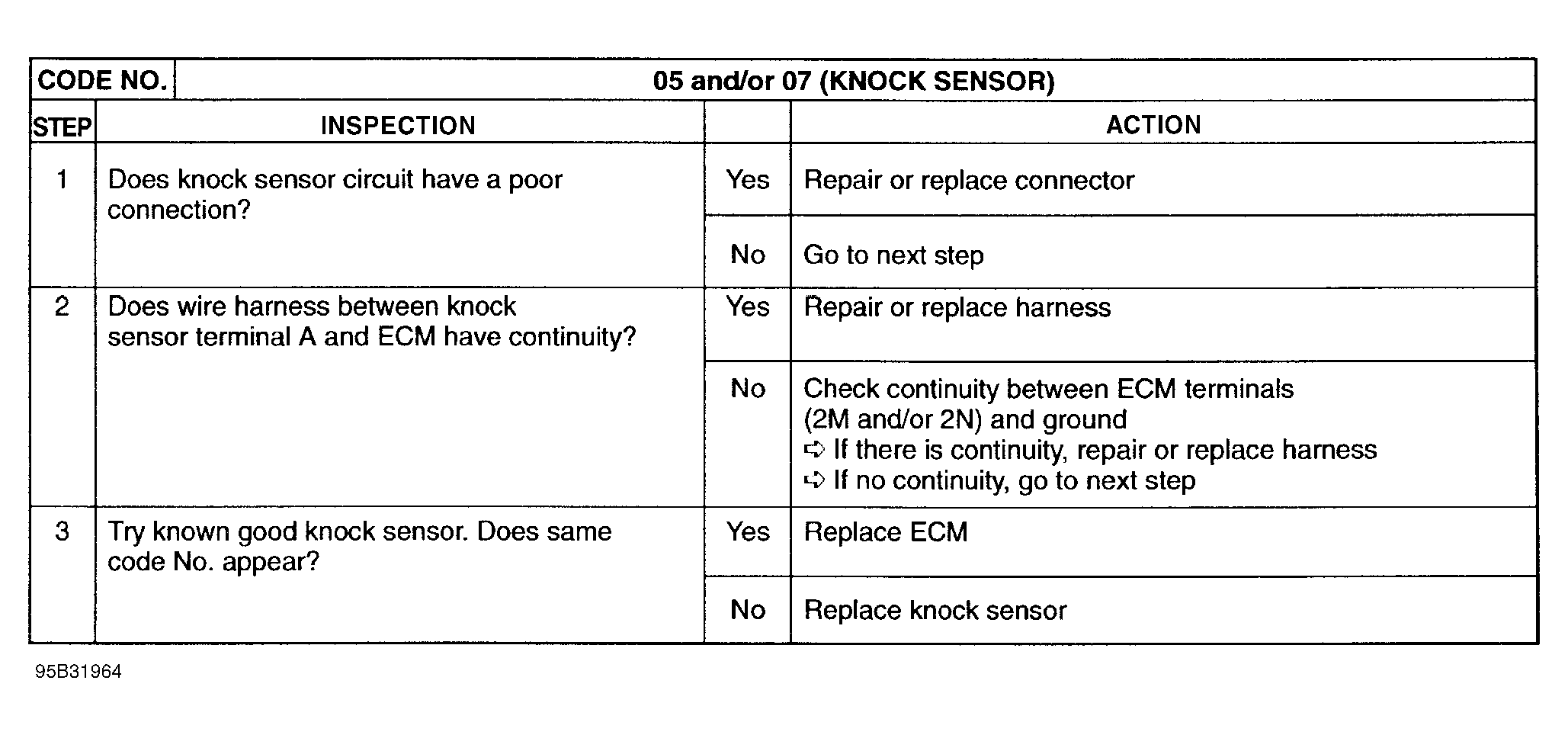

Fig 1: Trouble Code No. 5/7 Left/Right Knock Sensor
G95B31964

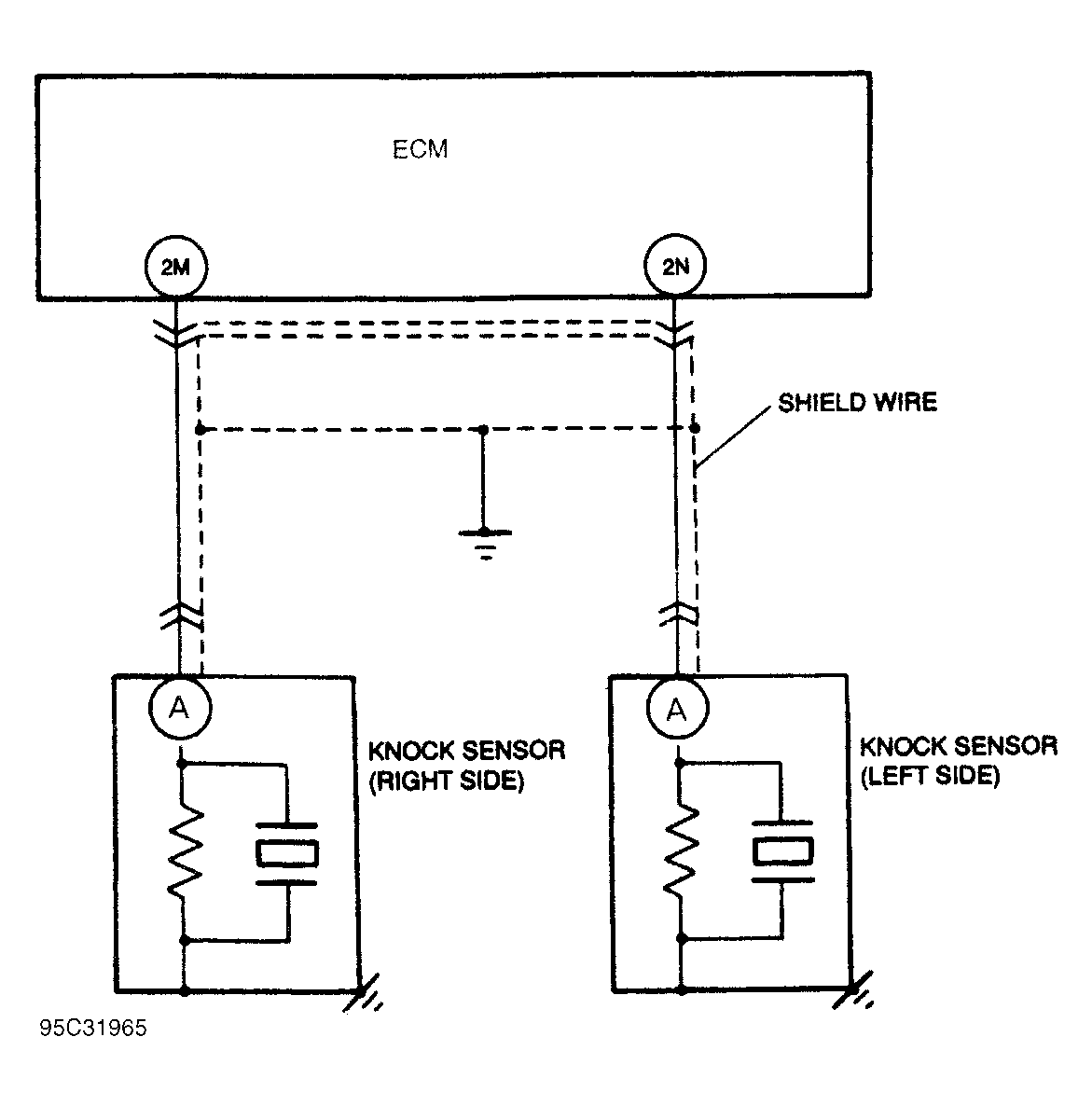

Fig 2: Trouble Code No. 5/7 Knock Sensor Circuit Diagram
G95C31965
